Centerforce DYAD ? XDS 8.75, Extreme Multi-Disc Clutch and Flywheel Kit, 168 Tooth Gear, 0 in/oz Internally Balanced, 6 Bolt Crank, 750 ft/lbs Capacit
Centerforce

Centerforce DYAD ? XDS 8.75, Extreme Multi-Disc Clutch and Flywheel Kit, 168 Tooth Gear, 0 in/oz Internally Balanced, 6 Bolt Crank, 750 ft/lbs Capacit

Part Number:814262842

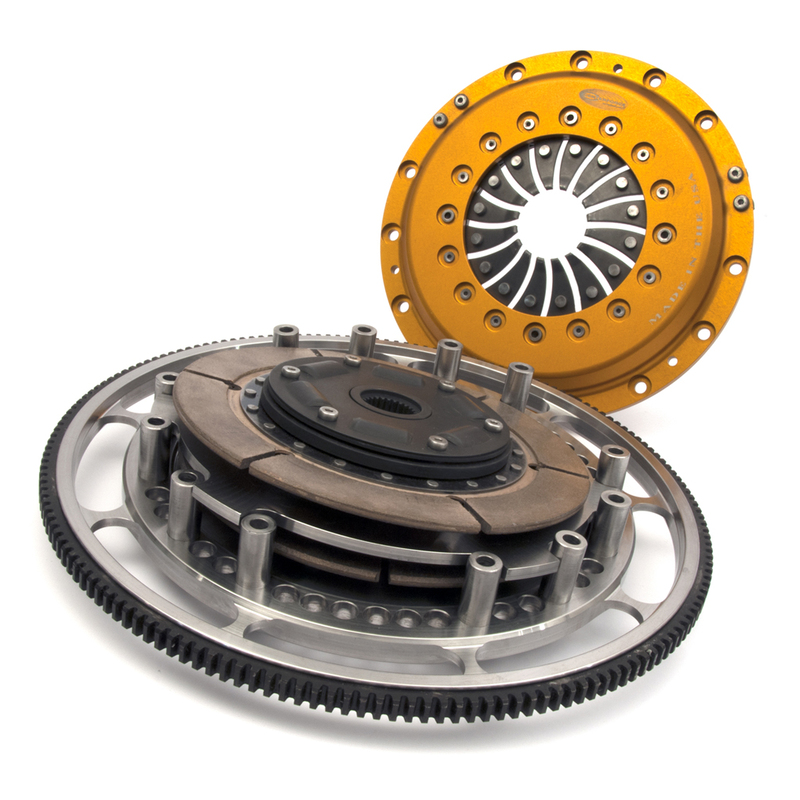

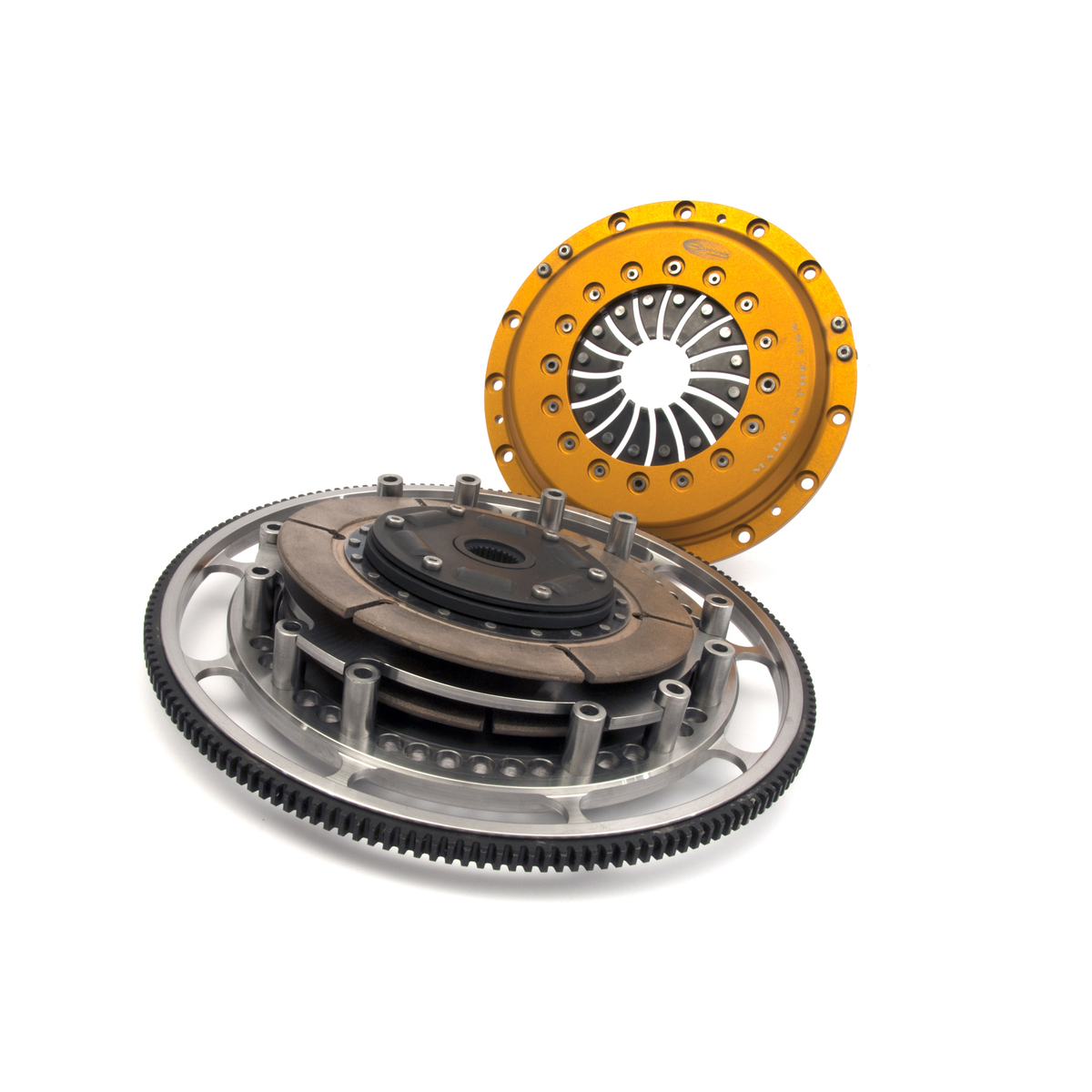

The Centerforce(R) DYAD XDS 8.75" twin disc clutch has been developed for vehicles requiring a holding capacity of 400 to 800 ft/lbs of torque at the crank. The billet pressure plate features our patented centrifugal weight system (where applicable) for superior clamp load over stock and our patented ball bearing actuated pressure plate (where applicable) providing light pedal effort. The disc pack is equipped with metallic friction material providing increased holding capacity and is available in either sprung or solid hub (possible gear noise) depending on the application. DYAD XDS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Due to the aggressive nature of this race inspired clutch, vehicles may experience some floater noise and/or chatter during operation. Components are designed, machined and assembled in the USA. DYAD XDS clutches are match balanced and ready for installation using the included ARP fasteners.
  • 8.75" Diameter
  • 222.3mm Diameter
  • 1-1/8" x 26 Spline Input Shaft
  • Holds Up To 750 ft/lbs of Torque
  • Sprung Hub Disc with Sintered Metallic Material
  • 168 Tooth R.Gear, 6 Bolt Crank, and 0 oz Counter Balance
  • Simple Install
Retail price
  • $2,374.99
