ACT XT/Race Rigid 4 Pad Kit
Advanced Clutch

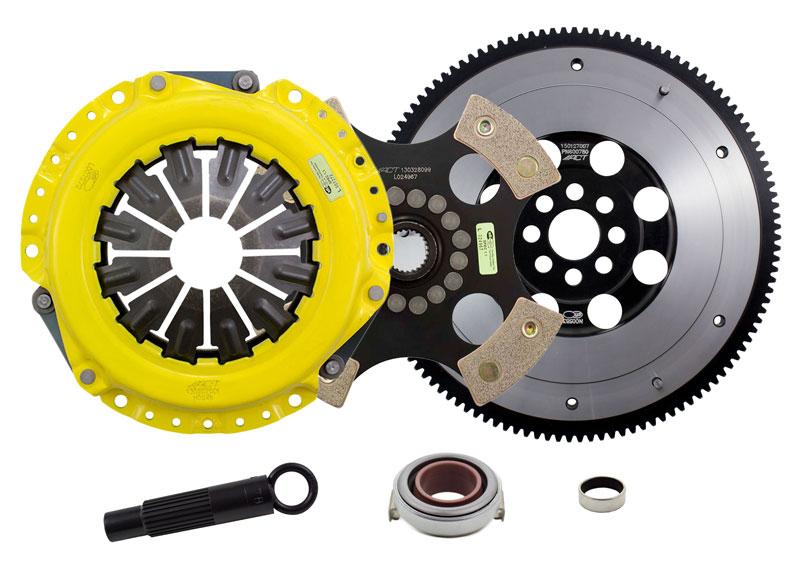

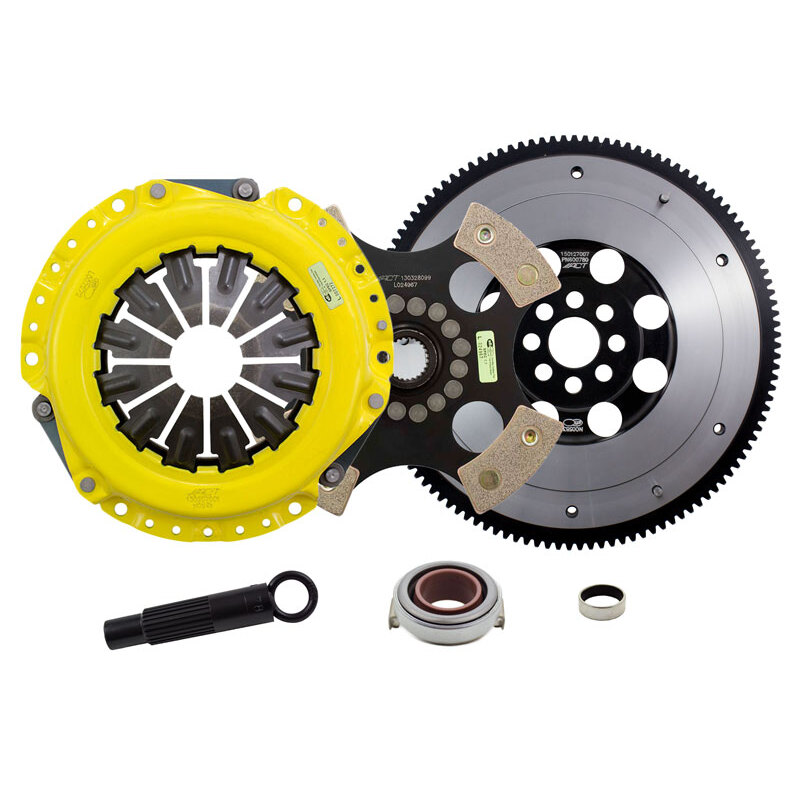

ACT XT/Race Rigid 4 Pad Kit

Part Number:AR2-XTR4
AR2-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.
  • "Excellence in Performance", backed by the best one-year warranty in the industry!
Retail price
  • $1,103.00
Features
  • SKU
    AR2-XTR4
  • Brand
    Advanced Clutch
  • Clutch Disc Diameter
    214 mm
  • Clutch Disc Diameter
    8.40 in.
  • Disc Material
    Ceramic
  • Flywheel Series
    Streetlite
  • Grade Type
    Performance
  • Includes Alignment Tool
    Yes
  • Includes Flywheel
    Yes
  • Includes Pilot Bushing
    Yes
  • Includes Release Bearing
    Yes
  • Input Shaft Diameter
    1.03125 in.
  • Input Spline Quantity
    24
  • Installation Note
    Must Use ACT Flywheel (included in Kit).
  • Pressure Plate Series
    Xtreme
  • Prop 65 - Required to list in California with Warning
    Yes
  • Prop 65 - Short Label
    WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
  • Torque Capacity
    435 ft/lbs.
  • Torque Capacity Percentage Over Stock
    109%
  • Weight
    24.0 lbs. (10.9 kg)
