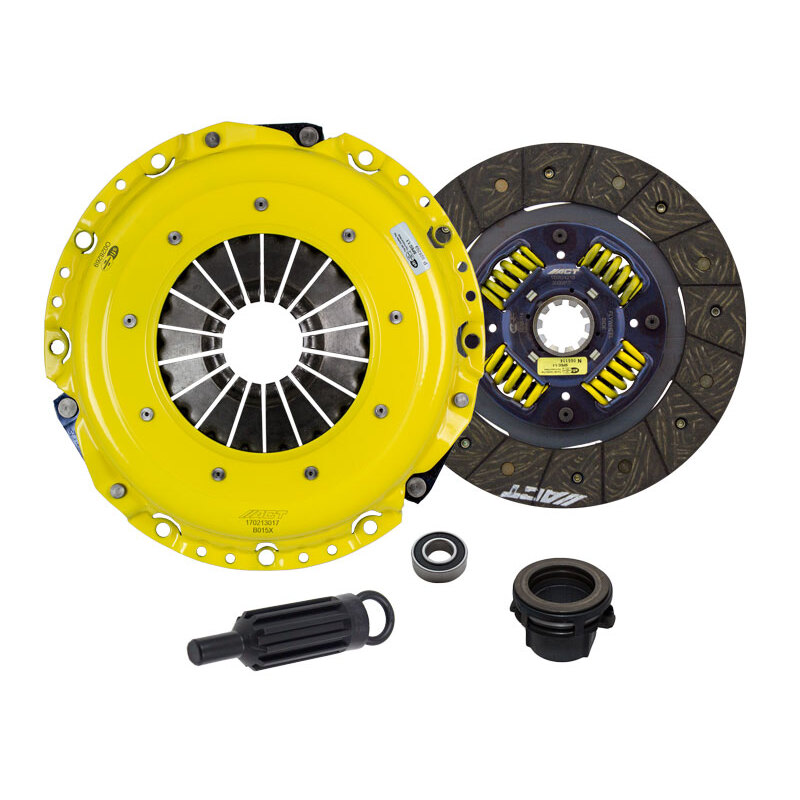

ACT XT/Perf Street Sprung Kit
Advanced Clutch

ACT XT/Perf Street Sprung Kit

Part Number:BM9-XTSS
BM9-XTSS kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance street discs are the most popular disc purchased. They feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability.
  • "Excellence in Performance", backed by the best one-year warranty in the industry!
Retail price
  • $1,132.00
Features
  • SKU
    BM9-XTSS
  • Brand
    Advanced Clutch
  • Clutch Disc Diameter
    240 mm
  • Clutch Disc Diameter
    9.40 in.
  • Disc Material
    Organic
  • Grade Type
    Performance
  • Includes Alignment Tool
    Yes
  • Includes Release Bearing
    Yes
  • Input Shaft Diameter
    1.375 in.
  • Input Spline Quantity
    10
  • Installation Note
    Must Use ACT Flywheel with Sprung Hub Discs for Proper Clearance (flywheel Not Included). Pressure Plate Bolts Included (M8-1.25 X 20mm).
  • Pressure Plate Series
    Xtreme
  • Prop 65 - Required to list in California with Warning
    Yes
  • Prop 65 - Short Label
    WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
  • Torque Capacity
    549 ft/lbs.
  • Torque Capacity Percentage Over Stock
    79%
  • Weight
    13.8 lbs. (6.3 kg)
