ACT HD/Perf Street Sprung Kit
Advanced Clutch

ACT HD/Perf Street Sprung Kit

Part Number:HC10-HDSS

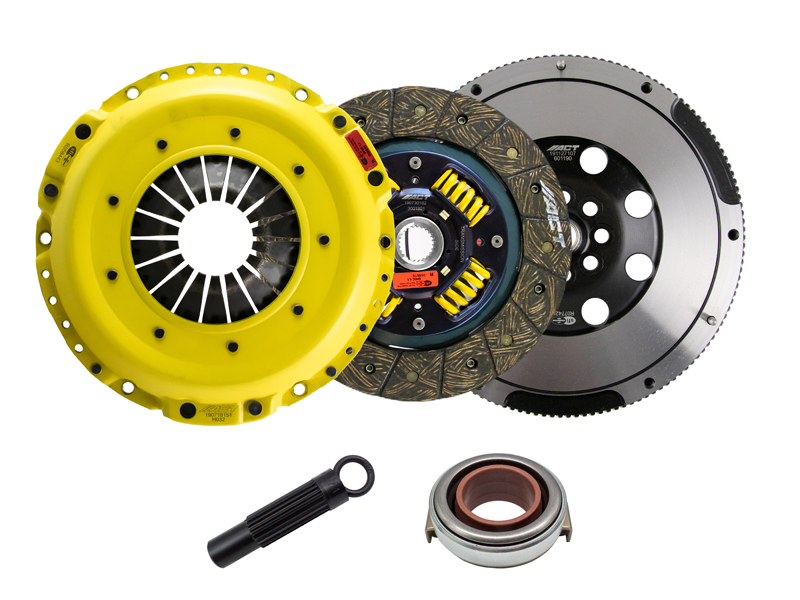

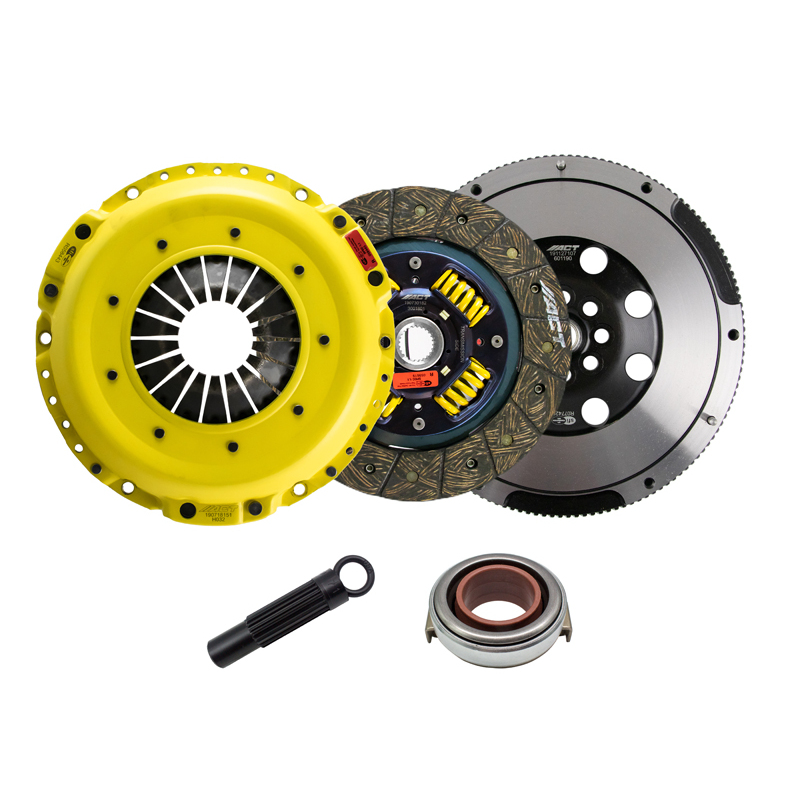

HC10-HDSS kit features ACT's most popular Heavy Duty pressure plate and most popular street disc. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance Street discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates, with increased strength and reliability.
  • "Excellence in Performance", backed by the best one-year warranty in the industry!
Retail price
  • $1,406.00
Features
  • SKU
    HC10-HDSS
  • Brand
    Advanced Clutch
  • Clutch Disc Diameter
    240 mm
  • Clutch Disc Diameter
    9.40 in.
  • Disc Material
    Organic
  • Flywheel Series
    Streetlite
  • Grade Type
    Performance
  • Includes Alignment Tool
    Yes
  • Includes Flywheel
    Yes
  • Includes Release Bearing
    Yes
  • Input Shaft Diameter
    1.0325 in.
  • Input Spline Quantity
    24
  • Pressure Plate Series
    Heavy Duty
  • Product Note
    Conversion Kit. Must Use ACT Flywheel (included in Kit). Flywheel Bolts Included (M12-1.0 X 25mm). Pressure Plate Bolts Included (M8-1.25 X 16mm).
  • Prop 65 - Required to list in California with Warning
    Yes
  • Prop 65 - Short Label
    WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
  • Torque Capacity
    363 ft/lbs.
  • Torque Capacity Percentage Over Stock
    63%
  • Weight
    33.1 lbs. (15 kg)
