ACT MaXX/Race Rigid 4 Pad Kit
Advanced Clutch

ACT MaXX/Race Rigid 4 Pad Kit

Part Number:HC6-XXR4

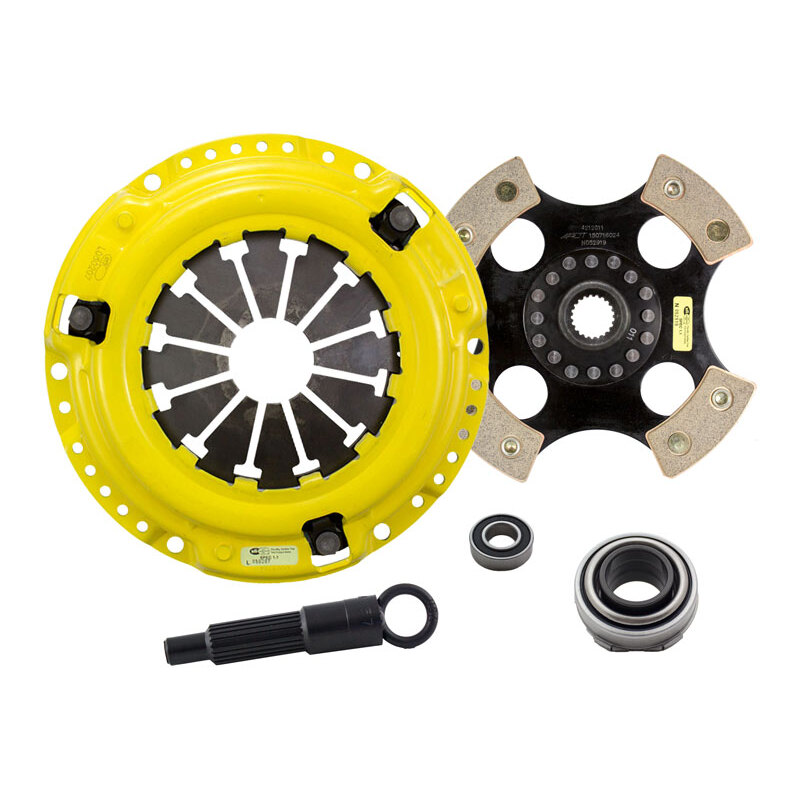

HC6-XXR4 kit features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.
  • "Excellence in Performance", backed by the best one-year warranty in the industry!
Retail price
  • $652.00
Features
  • SKU
    HC6-XXR4
  • Brand
    Advanced Clutch
  • Clutch Disc Diameter
    212 mm
  • Clutch Disc Diameter
    8.30 in.
  • Disc Material
    Ceramic
  • Grade Type
    Performance
  • Includes Alignment Tool
    Yes
  • Includes Release Bearing
    Yes
  • Input Shaft Diameter
    0.875 in.
  • Input Spline Quantity
    21
  • Pressure Plate Series
    MaXX Xtreme
  • Prop 65 - Required to list in California with Warning
    Yes
  • Prop 65 - Short Label
    WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
  • Torque Capacity
    420 ft/lbs.
  • Torque Capacity Percentage Over Stock
    173%
  • Weight
    9.8 lbs. (4.4 kg)
