ACT MaXX/Race Rigid 6 Pad Kit
Advanced Clutch

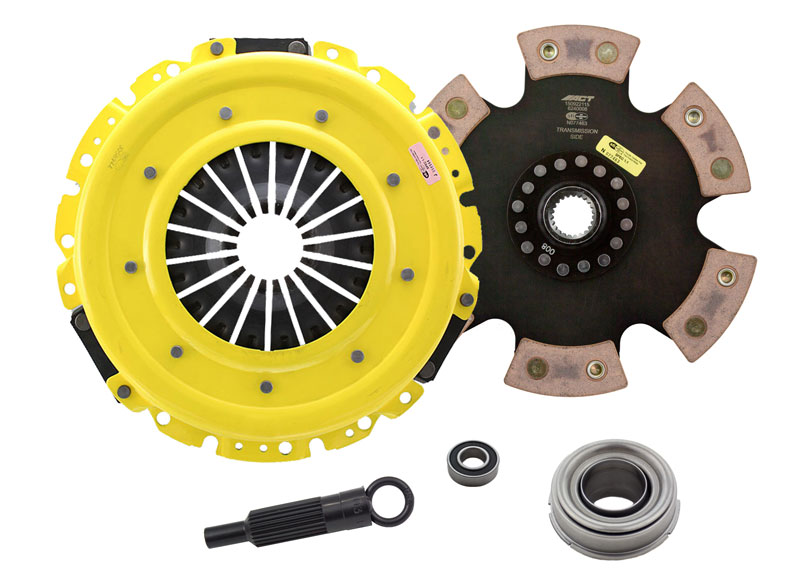

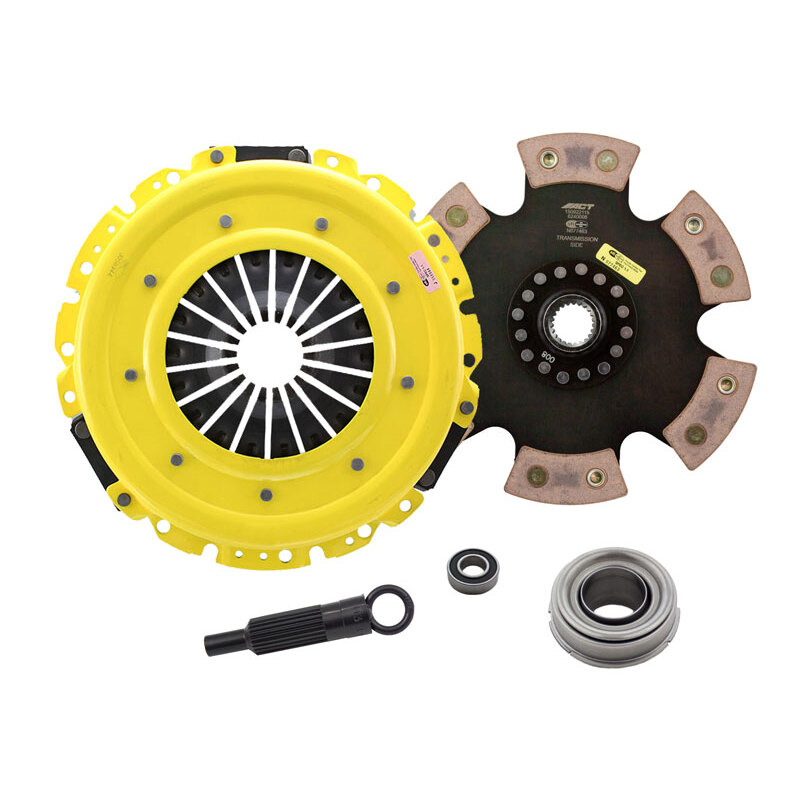

ACT MaXX/Race Rigid 6 Pad Kit

Part Number:MS1-XXR6
MS1-XXR6 features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.
  • "Excellence in Performance", backed by the best one-year warranty in the industry!
Retail price
  • $791.00
Features
  • SKU
    MS1-XXR6
  • Brand
    Advanced Clutch
  • Clutch Disc Diameter
    240 mm
  • Clutch Disc Diameter
    9.40 in.
  • Disc Material
    Ceramic
  • Grade Type
    Performance
  • Includes Alignment Tool
    Yes
  • Includes Release Bearing
    Yes
  • Input Shaft Diameter
    1.0 in.
  • Input Spline Quantity
    23
  • Pressure Plate Series
    MaXX Xtreme
  • Prop 65 - Required to list in California with Warning
    Yes
  • Prop 65 - Short Label
    WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
  • Torque Capacity
    625 ft/lbs.
  • Torque Capacity Percentage Over Stock
    156%
  • Weight
    15.3 lbs. (6.9 kg)
