ACT Twin Disc HD Race Kit
        Advanced Clutch

        ACT Twin Disc HD Race Kit

        Part Number:T1R-F11

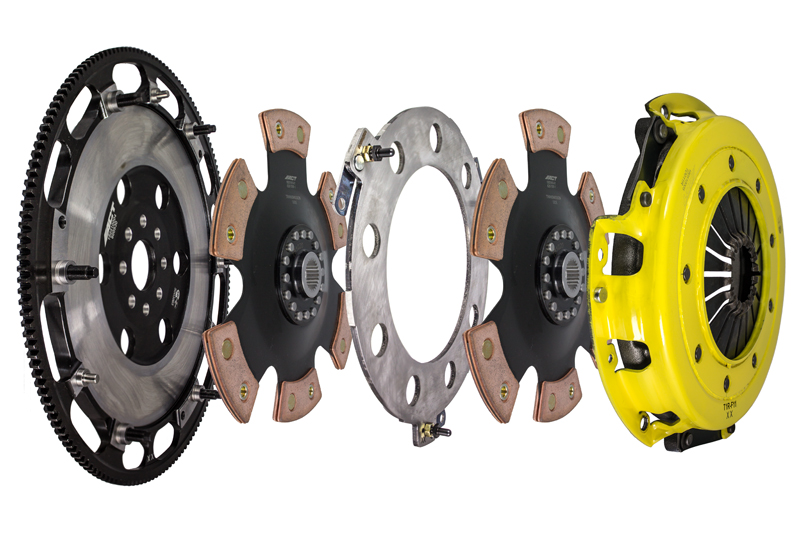

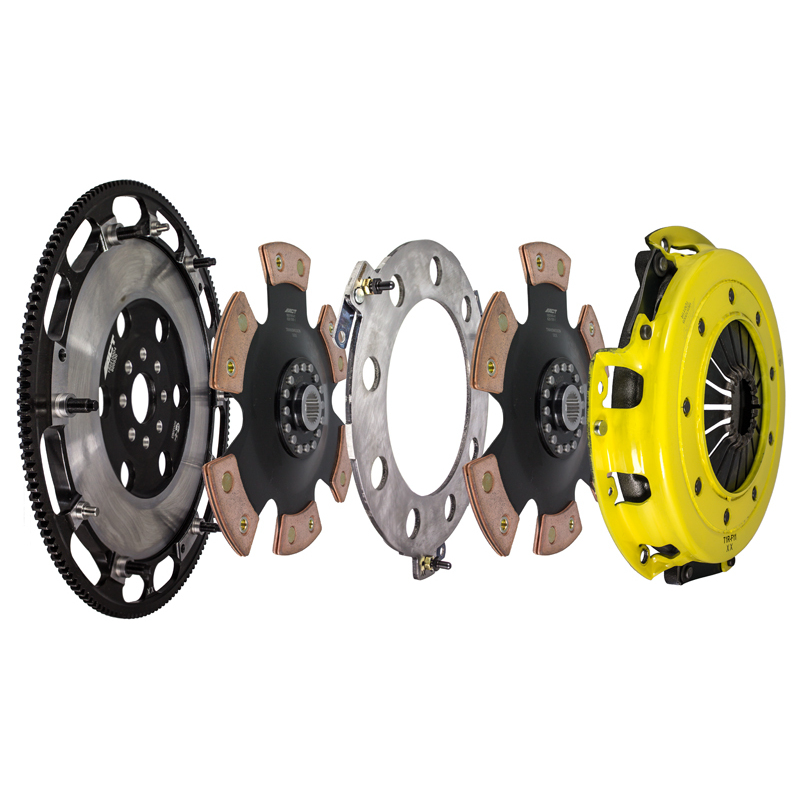

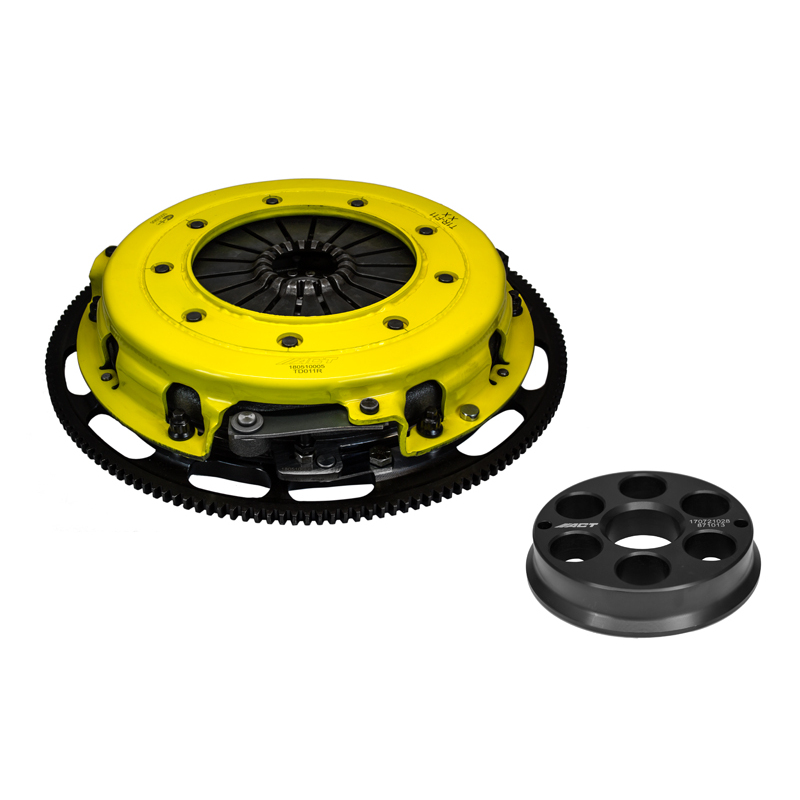

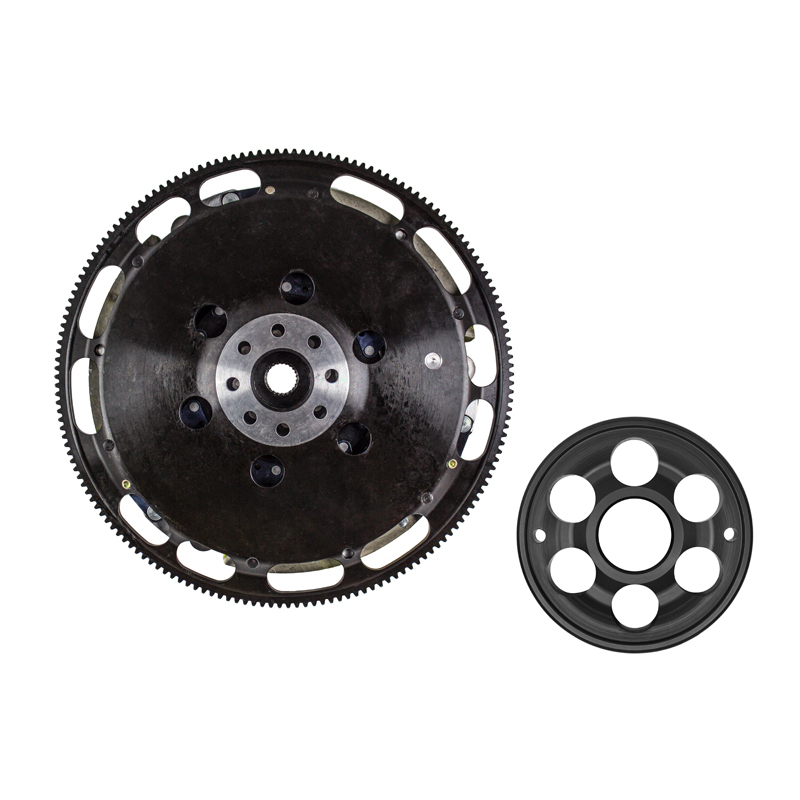

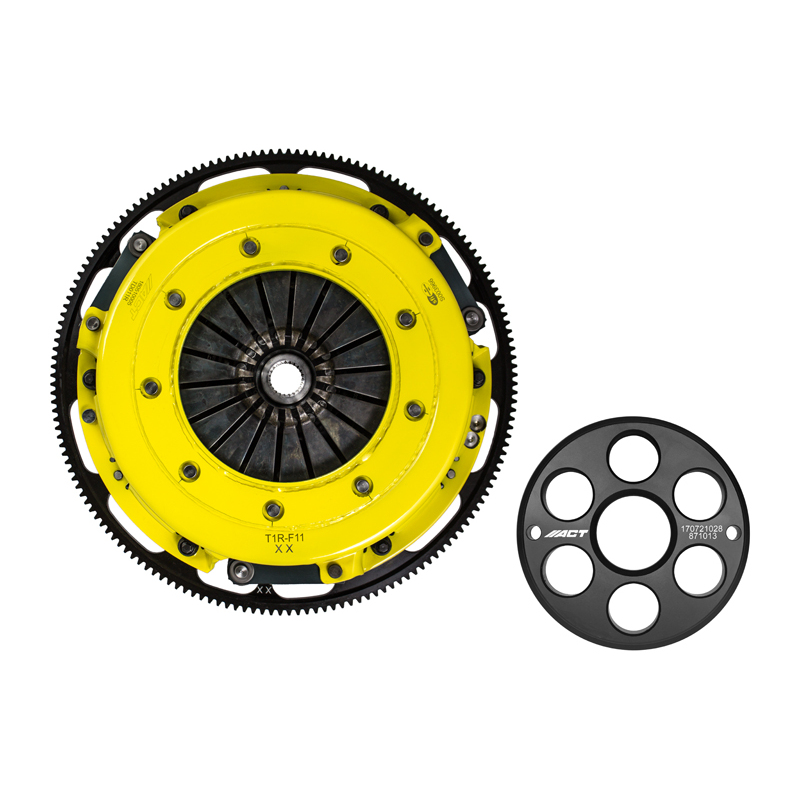

        T1R-F11 twin disc kit offers twice the number of disc surfaces for better wear, heat capacity and long life compared to single disc kits. These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. ACT twin disc kits endure an exclusive four-stage, heat treating process performed on all diaphragms. The ACT twin disc features the ability to adjust for disc wear and provides equal disengagement for discs. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and trouble-free service. All ACT twin disc kits include a CNC-machined and dynamically balanced flywheel to ensure trouble-free installation and operation. ACT twin disc kits include a pressure plate, two discs, a floater, flywheel and alignment tool. Some kits may include a pilot bearing and release bearing.
        • "Excellence in Performance", backed by the best one-year warranty in the industry!
        Retail price
        • $1,889.00
        Features
        • SKU
          T1R-F11
        • Brand
          Advanced Clutch
        • Clutch Disc Diameter
          10.5 in.
        • Clutch Disc Diameter
          267 mm
        • Clutch Master Cylinder Included
          No
        • Clutch Slave Cylinder Included
          No
        • Disc Material
          Ceramic
        • Disc Type Sprung Solid
          Solid
        • Flywheel Bolts Included
          No
        • Grade Type
          Performance
        • Grease Included
          Yes
        • Includes Alignment Tool
          Yes
        • Includes Flywheel
          Yes
        • Input Shaft Diameter
          1.0 in.
        • Input Spline Quantity
          23
        • Pilot Bearing Included
          Yes
        • Pilot Bushing Included
          No
        • Pressure Plate Bolts Included
          No
        • Pressure Plate Series
          Heavy Duty
        • Product Note
          If Vehicle is Equipped With the Shorter Late CSC Measuring 2.125 in., the Spacer Included in the Kit must be Installed. do NOT Install the Spacer If Using the Taller CSC.
        • Prop 65 - Required to list in California with Warning
          Yes
        • Prop 65 - Short Label
          WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
        • Prop 65 Long Label
          Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
        • SFI Certification Rating
          1.2
        • Torque Capacity
          1,141 ft/lbs.
        • Torque Capacity Percentage Over Stock
          77%
        • Weight
          45.3 lbs. (20.5 kg)
