ACT Twin Disc XT Race Kit
Advanced Clutch

ACT Twin Disc XT Race Kit

Part Number:T2R-F11

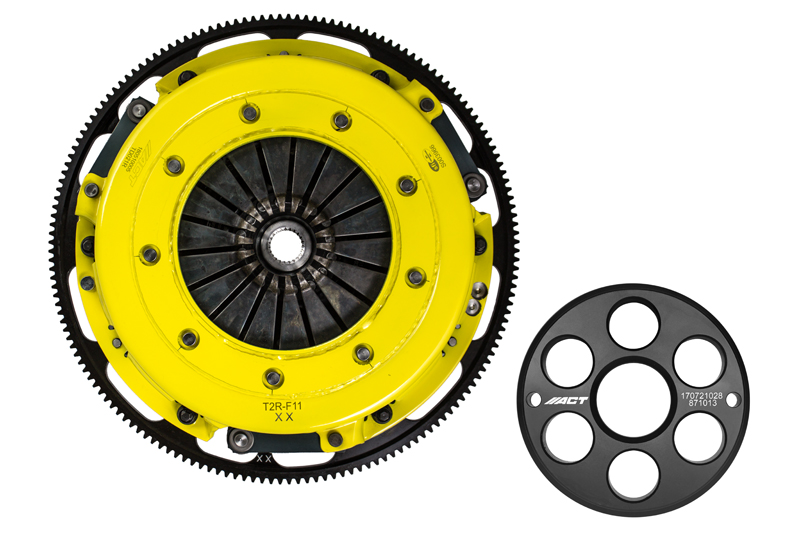

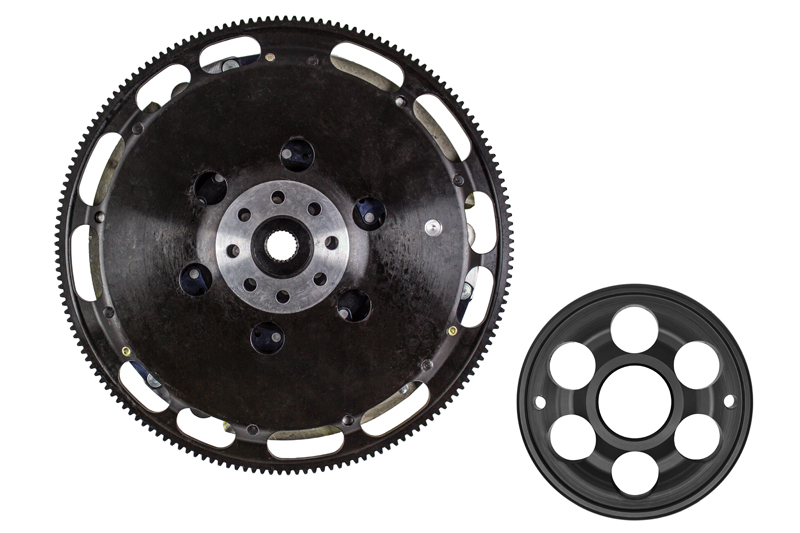

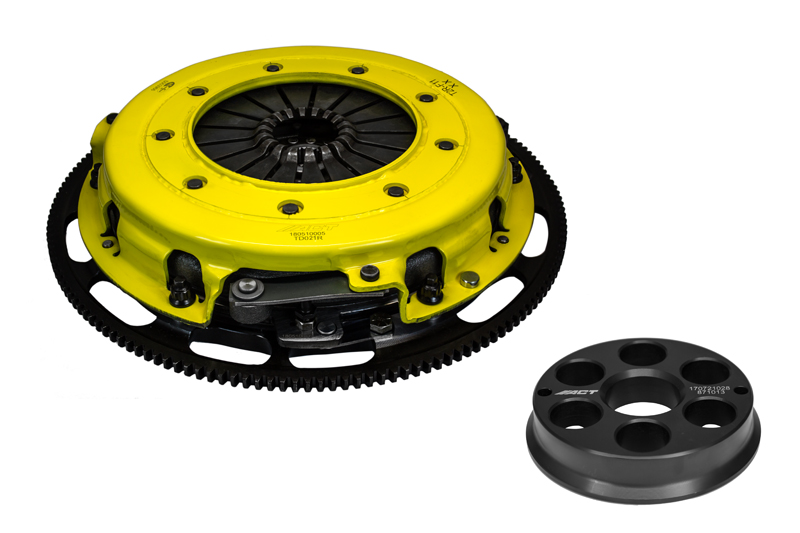

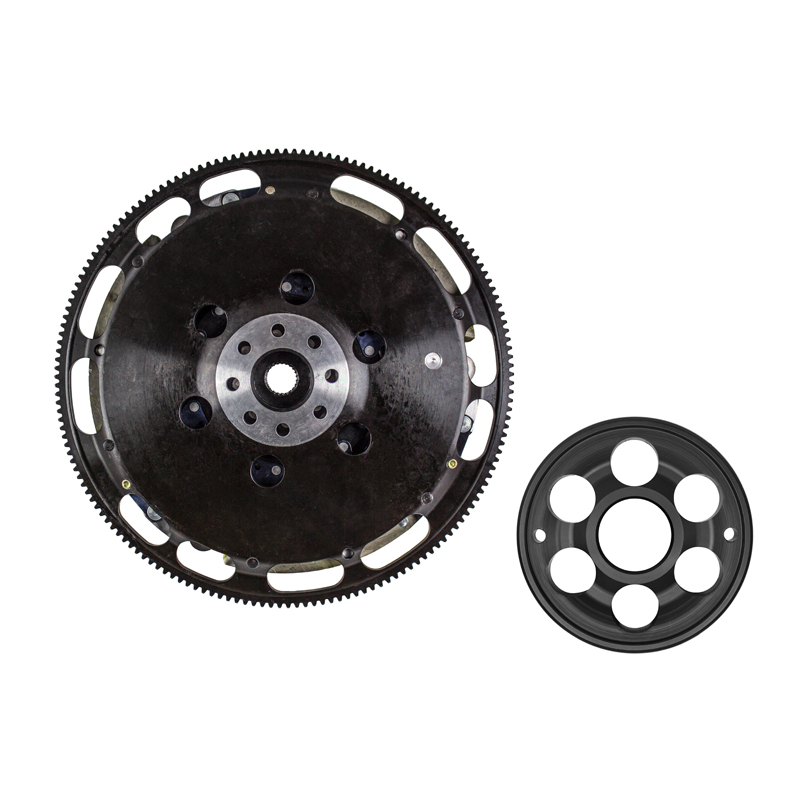

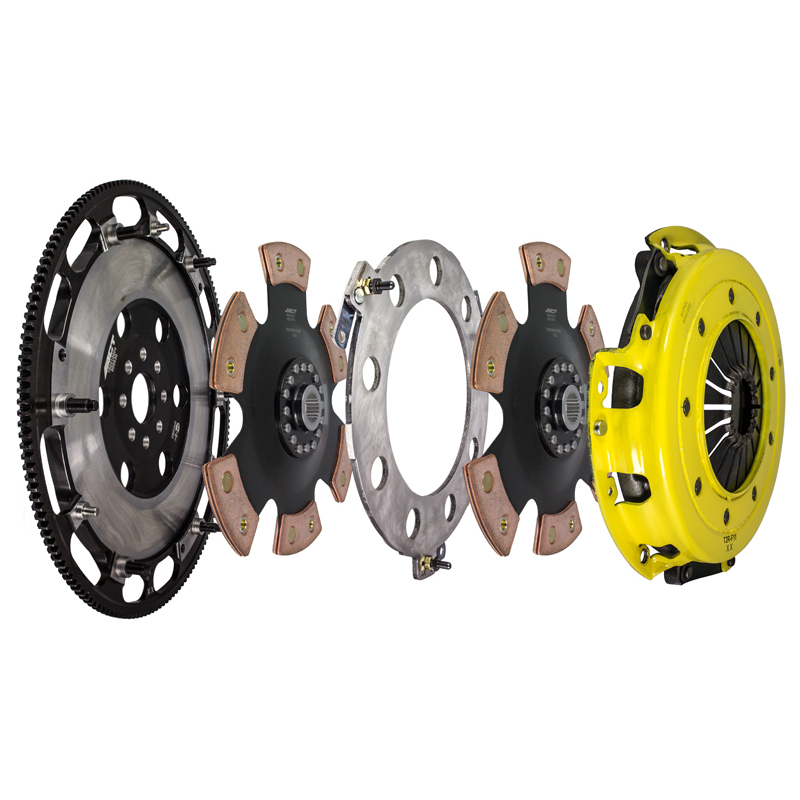

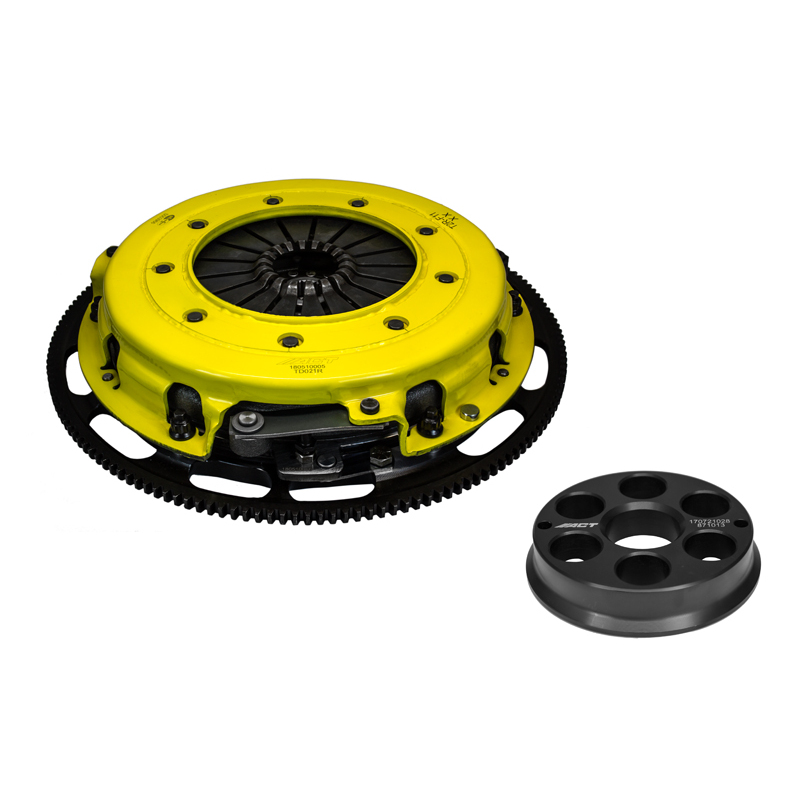

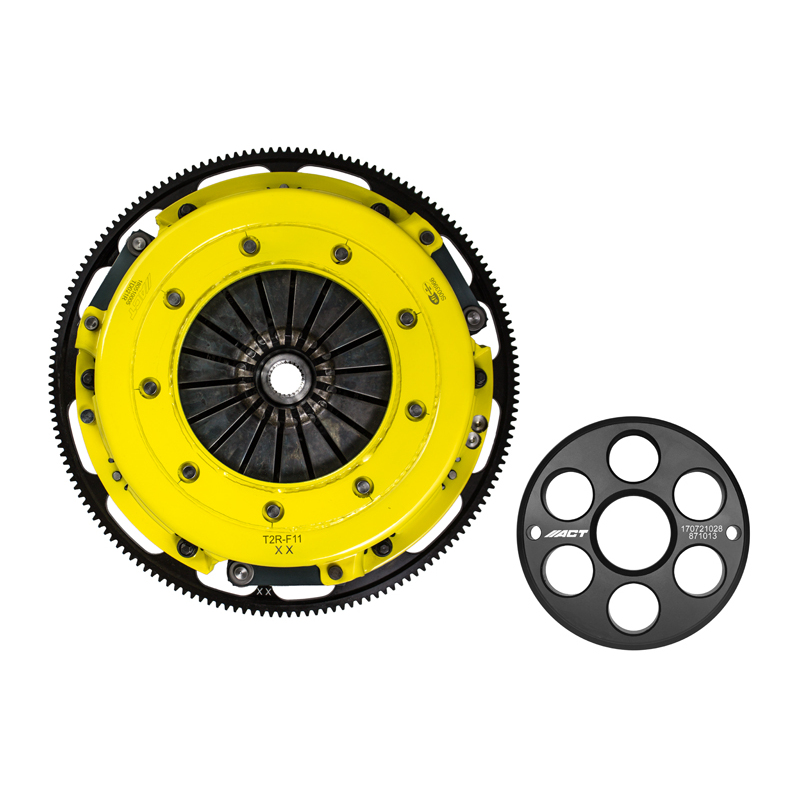

T2R-F11 race, twin disc kit offers twice the number of disc surfaces for better wear, heat capacity and long life compared to single disc kits. These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. ACT twin disc kits undergo an exclusive four-stage, heat-treating process on all diaphragms. The ACT twin disc features the ability to adjust for disc wear and provides equal disengagement for discs. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and trouble-free service. All ACT twin disc kits include a CNC-machined and dynamically balanced flywheel to ensure trouble-free installation and operation. ACT twin disc kits include a pressure plate, two discs, a floater, flywheel and alignment tool. Some kits may include a pilot bearing and release bearing.
  • "Excellence in Performance", backed by the best one-year warranty in the industry!
Retail price
  • $1,928.00
Features
  • SKU
    T2R-F11
  • Brand
    Advanced Clutch
  • Clutch Disc Diameter
    10.5 in.
  • Clutch Disc Diameter
    267 mm
  • Disc Material
    Ceramic
  • Grade Type
    Performance
  • Includes Alignment Tool
    Yes
  • Includes Flywheel
    Yes
  • Input Shaft Diameter
    1.0 in.
  • Input Spline Quantity
    23
  • Pressure Plate Series
    Xtreme
  • Product Note
    If Vehicle is Equipped With the Shorter Late CSC Measuring 2.125 in., the Spacer Included in the Kit must be Installed. do NOT Install the Spacer If Using the Taller CSC.
  • Prop 65 - Required to list in California with Warning
    Yes
  • Prop 65 - Short Label
    WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
  • SFI Certification Rating
    1.2
  • Torque Capacity
    1,263 ft/lbs.
  • Torque Capacity Percentage Over Stock
    96%
  • Weight
    45.1 lbs. (20.5 kg)
