ACT HD-O/Race Rigid 6 Pad Kit
        Advanced Clutch

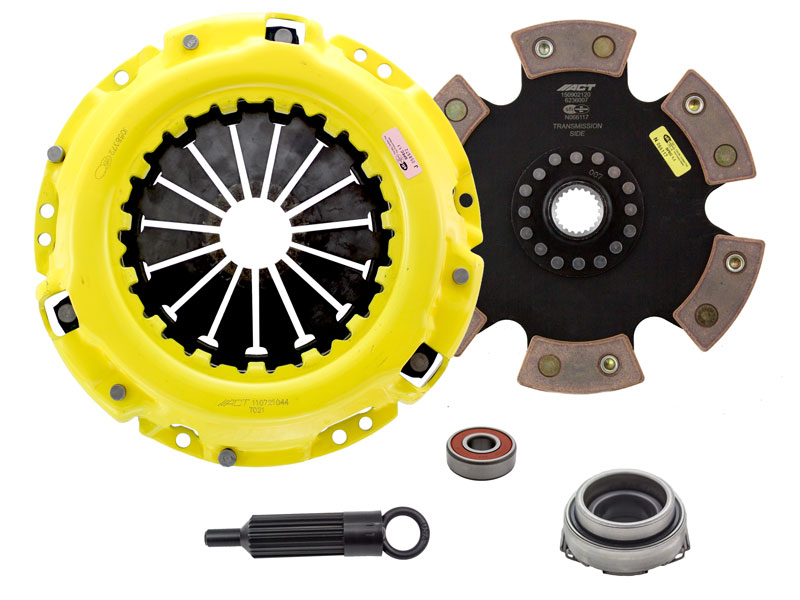

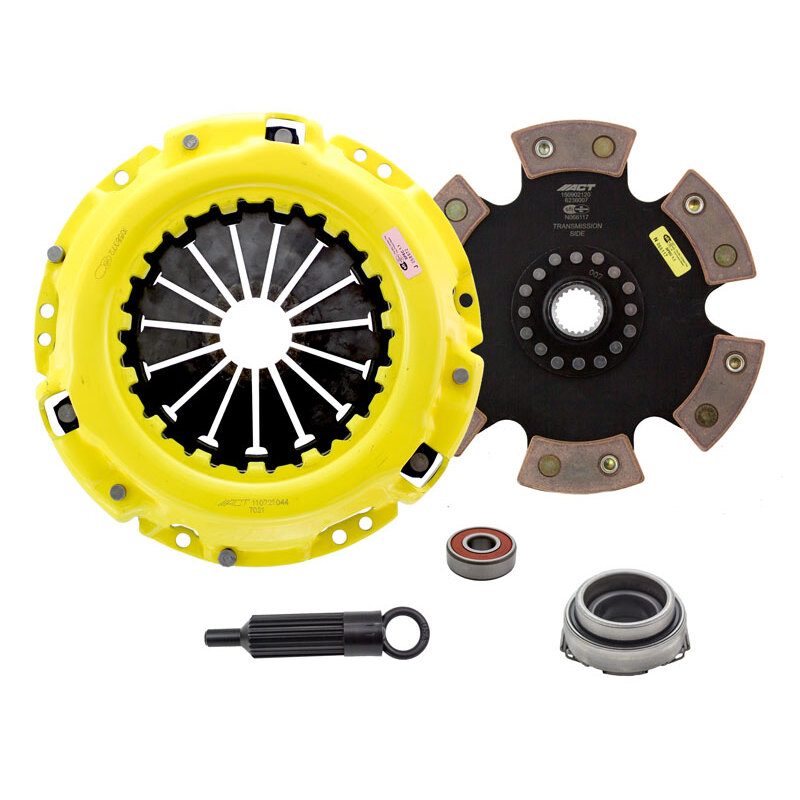

        ACT HD-O/Race Rigid 6 Pad Kit

        Part Number:TA1-HDR6
        TA1-HDR6 kit features ACT's highly regarded Heavy Duty pressure plate and rigid 6 pad race disc delivering high torque capacity, aggressive engagement and increased toughness to withstand the demands of off-road racing. ACT’s exclusive diaphragm design increases clamp load, reduces deflection and maximizes clutch life. All diaphragms endure a four-stage heat-treating process for unparalleled performance. ACT precision pressure plate cover stampings provide rigidity and consistency while precision machined pressure plate castings absorb heat. ACT’s rigid center 6 pad race discs have a virtually indestructible rigid center and premium ceramic friction materials to hold power even under the most abusive conditions. Rigid design eliminates torsional damping for simplicity, reduced weight and quicker shifting.
        • "Excellence in Performance", backed by the best one-year warranty in the industry!
        Retail price
        • $666.00
        Features
        • SKU
          TA1-HDR6
        • Brand
          Advanced Clutch
        • Clutch Disc Diameter
          236 mm
        • Clutch Disc Diameter
          9.30 in.
        • Clutch Master Cylinder Included
          No
        • Clutch Slave Cylinder Included
          No
        • Disc Material
          Ceramic
        • Disc Type Sprung Solid
          Solid
        • Flywheel Bolts Included
          No
        • Grade Type
          Performance
        • Grease Included
          Yes
        • Includes Alignment Tool
          Yes
        • Includes Release Bearing
          Yes
        • Input Shaft Diameter
          1.125 in.
        • Input Spline Quantity
          21
        • Pilot Bearing Included
          Yes
        • Pilot Bushing Included
          No
        • Pressure Plate Bolts Included
          No
        • Pressure Plate Series
          Heavy Duty
        • Prop 65 - Required to list in California with Warning
          Yes
        • Prop 65 - Short Label
          WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
        • Prop 65 Long Label
          Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
        • Torque Capacity
          365 ft/lbs.
        • Torque Capacity Percentage Over Stock
          69%
        • Weight
          16.1 lbs. (7.3 kg)
