ACT XT/Race Sprung 6 Pad Kit
Advanced Clutch

ACT XT/Race Sprung 6 Pad Kit

Part Number:TL3-XTG6

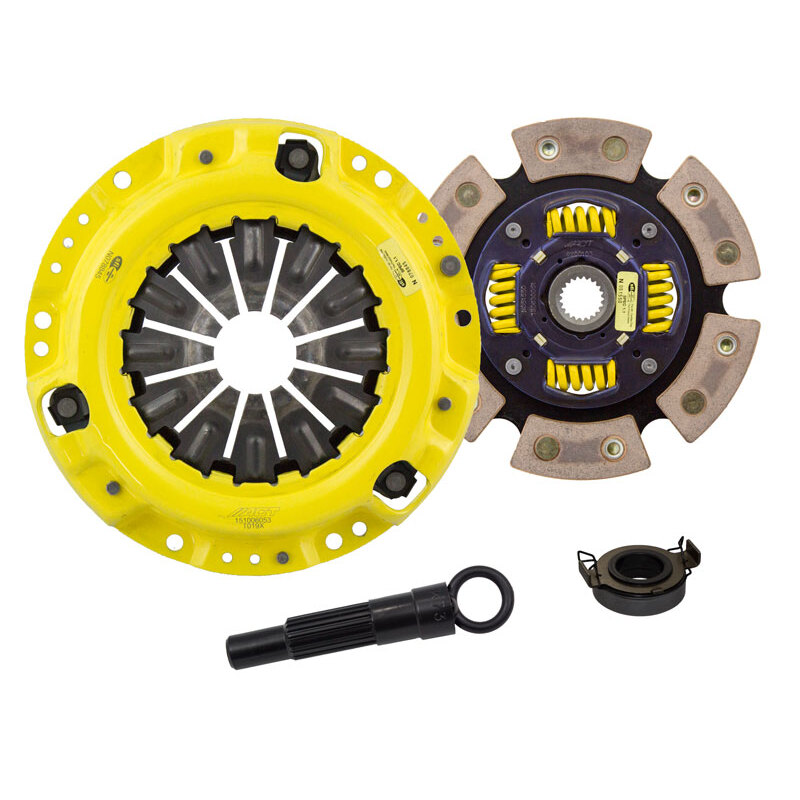

TL3-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.
  • "Excellence in Performance", backed by the best one-year warranty in the industry!
Retail price
  • $686.40
Features
  • SKU
    TL3-XTG6
  • Brand
    Advanced Clutch
  • Clutch Disc Diameter
    200 mm
  • Clutch Disc Diameter
    7.90 in.
  • Disc Material
    Ceramic
  • Grade Type
    Performance
  • Includes Alignment Tool
    Yes
  • Includes Release Bearing
    Yes
  • Input Shaft Diameter
    0.9375 in.
  • Input Spline Quantity
    21
  • Pressure Plate Series
    Xtreme
  • Prop 65 - Required to list in California with Warning
    Yes
  • Prop 65 - Short Label
    WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
  • Torque Capacity
    365 ft/lbs.
  • Torque Capacity Percentage Over Stock
    157%
  • Weight
    11.4 lbs. (5.2 kg)
