ACT XT/Race Rigid 6 Pad Kit
Advanced Clutch

ACT XT/Race Rigid 6 Pad Kit

Part Number:TS2-XTR6

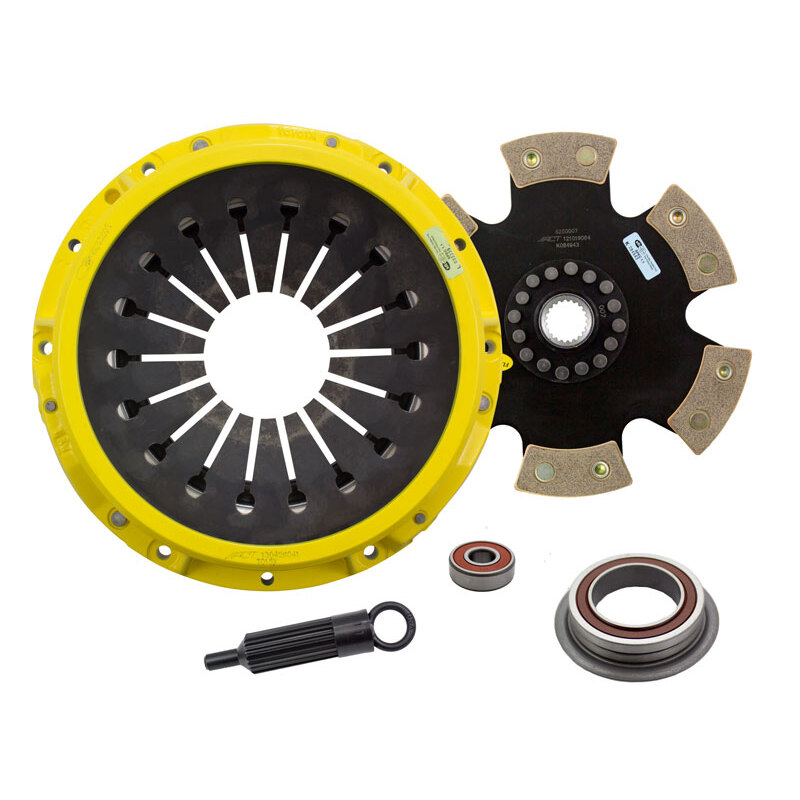

TS2-XTR6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.
  • "Excellence in Performance", backed by the best one-year warranty in the industry!
Retail price
  • $1,056.00
Features
  • SKU
    TS2-XTR6
  • Brand
    Advanced Clutch
  • Clutch Disc Diameter
    240 mm
  • Clutch Disc Diameter
    9.40 in.
  • Disc Material
    Ceramic
  • Grade Type
    Performance
  • Includes Alignment Tool
    Yes
  • Includes Release Bearing
    Yes
  • Input Shaft Diameter
    1.125 in.
  • Input Spline Quantity
    21
  • Pressure Plate Series
    Xtreme
  • Prop 65 - Required to list in California with Warning
    Yes
  • Prop 65 - Short Label
    WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
  • Torque Capacity
    630 ft/lbs.
  • Torque Capacity Percentage Over Stock
    109%
  • Weight
    20.9 lbs. (9.5 kg)
