ACT HD/Race Rigid 6 Pad Kit
  • ACT HD/Race Rigid 6 Pad Kit
Advanced Clutch

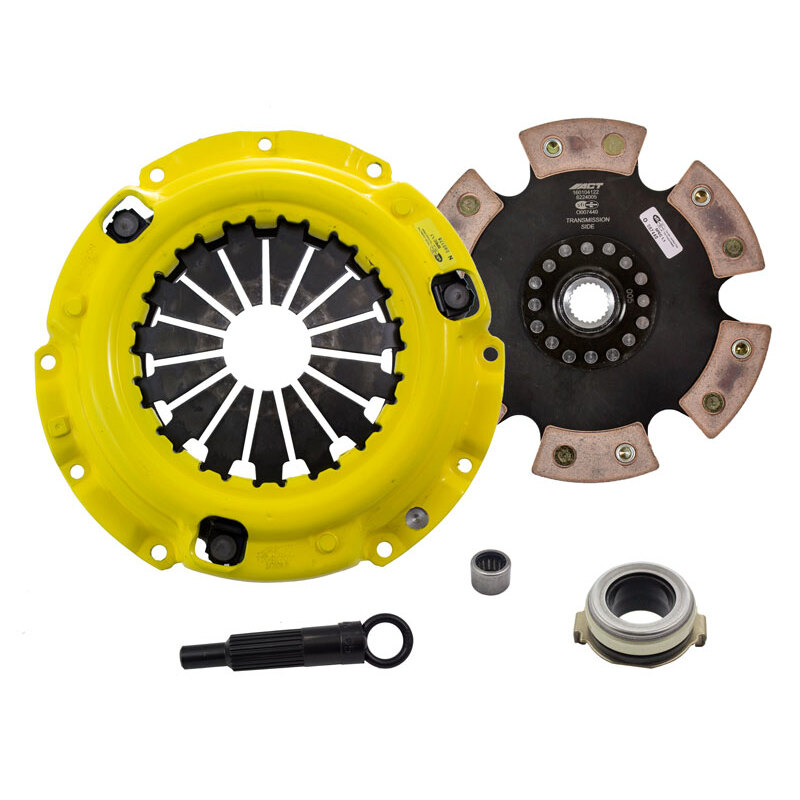

ACT HD/Race Rigid 6 Pad Kit

Part Number:ZM5-HDR6
ZM5-HDR6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.
  • "Excellence in Performance", backed by the best one-year warranty in the industry!
Retail price
  • $695.00
Features
  • SKU
    ZM5-HDR6
  • Brand
    Advanced Clutch
  • Clutch Disc Diameter
    224 mm
  • Clutch Disc Diameter
    8.80 in.
  • Clutch Master Cylinder Included
    No
  • Clutch Slave Cylinder Included
    No
  • Disc Material
    Ceramic
  • Disc Type Sprung Solid
    Solid
  • Flywheel Bolts Included
    No
  • Grade Type
    Performance
  • Grease Included
    Yes
  • Includes Alignment Tool
    Yes
  • Includes Release Bearing
    Yes
  • Input Shaft Diameter
    0.9375 in.
  • Input Spline Quantity
    22
  • Pilot Bearing Included
    Yes
  • Pilot Bushing Included
    No
  • Pressure Plate Bolts Included
    Yes
  • Pressure Plate Series
    Heavy Duty
  • Product Note
    5 Speed Applications Only. Pressure Plate Bolts Included (M8-1.25 X 20mm).
  • Prop 65 - Required to list in California with Warning
    Yes
  • Prop 65 - Short Label
    WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
  • Prop 65 Long Label
    Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
  • Torque Capacity
    359 ft/lbs.
  • Torque Capacity Percentage Over Stock
    71%
  • Weight
    12.5 lbs. (5.7 kg)
