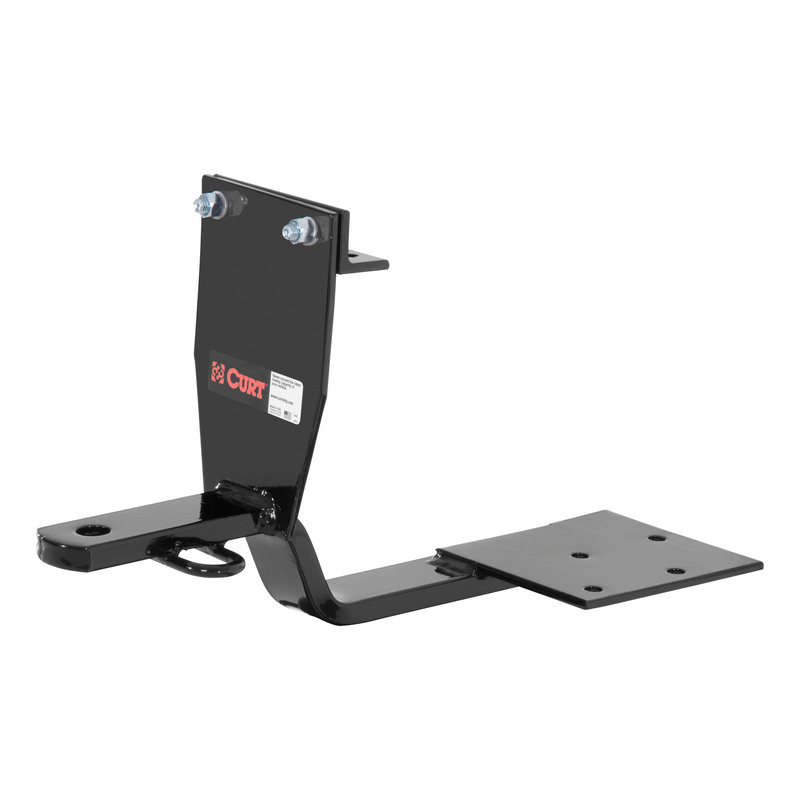

Class 1 Fixed-Tongue Trailer Hitch with 3/4" Trailer Ball Hole
        CURT

        Class 1 Fixed-Tongue Trailer Hitch with 3/4" Trailer Ball Hole

        Part Number:11514
        CURT class 1 trailer hitches are the lightest-duty hitches of our rear mount lineup. They are engineered for reliability, welded together with quality steel and blasted clean for a smooth finish. Tested to meet the strict demands of the industry, this CURT class 1 hitch has a capacity to tow up to 1,500 lbs. of gross trailer weight and 150 lbs. of tongue weight. This means it can handle a variety of small trailers such as single-axle utility trailers, canoe and kayak trailers, dirt bike trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). This class 1 hitch is a fixed-tongue hitch, having a fixed draw bar to accept a trailer ball rather than a receiver tube to accept a ball mount. Class 1 hitches are typically mounted on compact cars, full-size cars and some smaller crossover SUVs, minivans and compact SUVs. This particular hitch is designed to be a custom-fit trailer hitch for certain years of the BMW 3 Series coupe or sedan, including xi (except M3), or BMW 3 Series convertible (to verify your vehicle compatibility, see the CURT application guide at curtmfg.com). It comes with all necessary installation hardware. Each CURT class 1 hitch is co-cured with a liquid A-coat and a high-gloss black powder coat that provide a lasting defense against rust, wear and harmful UV rays.

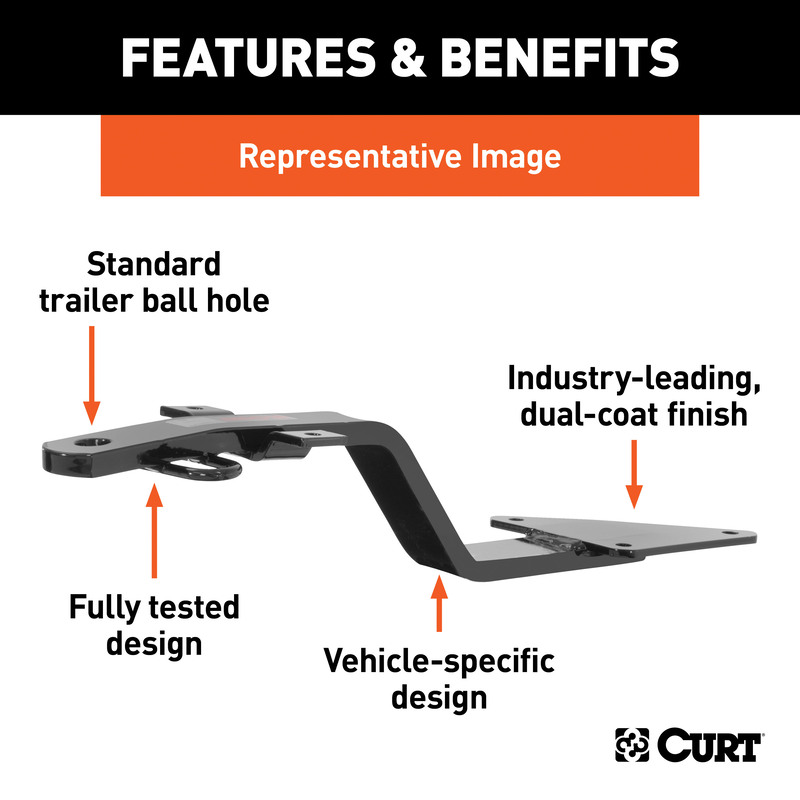

        • Class 1 Fixed-Tongue Trailer Hitch with 3/4" Trailer Ball Hole

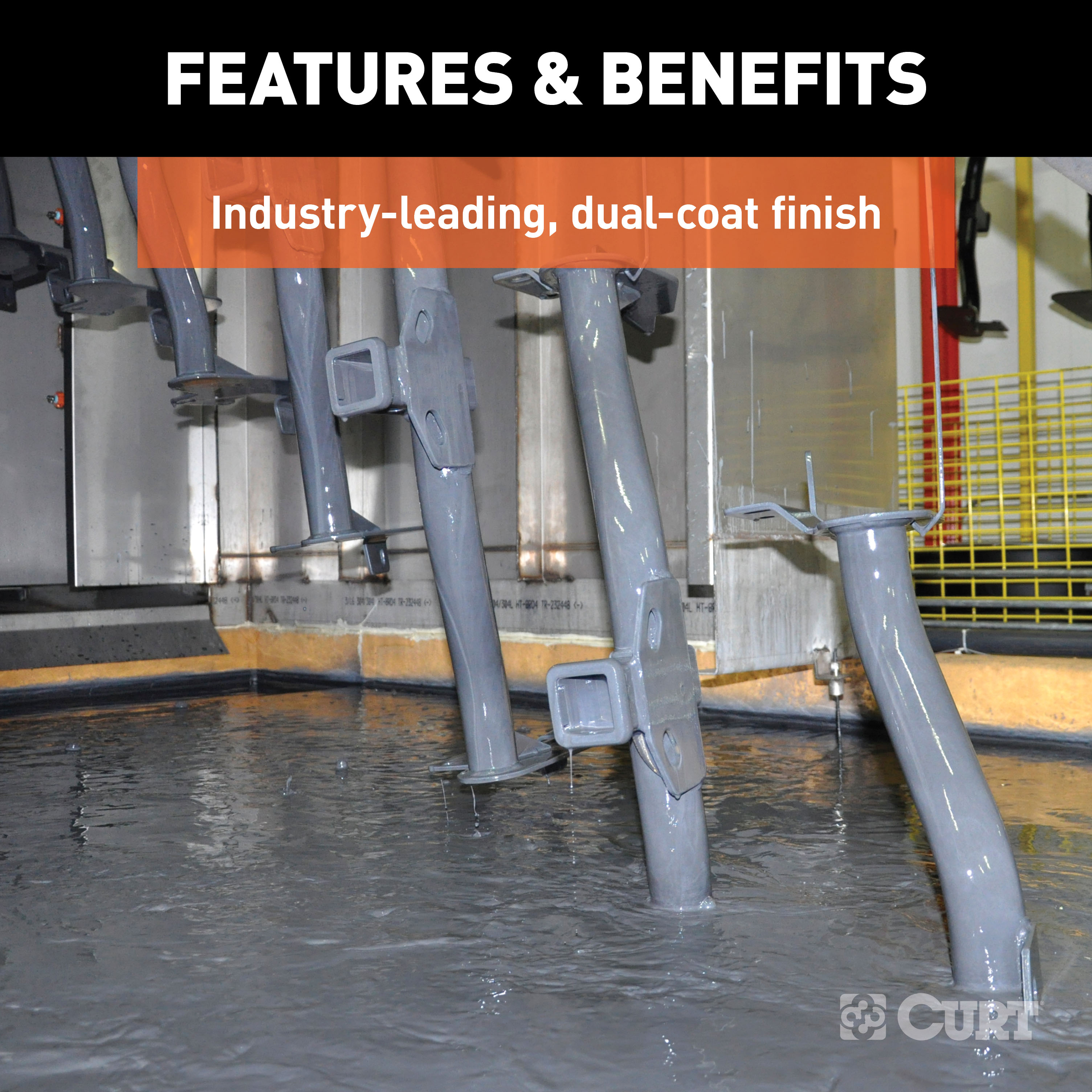

        • Co-cured in a rust-resistant liquid A-coat, inside and out
        • Concealed main body for OE look and seamless integration with the vehicle
        • Engineered with a vehicle-specific design for a custom fit
        • Fixed drawbar readily accepts a 3/4" trailer ball shank
        • Limited lifetime warranty (one-year finish, one-year parts)
        • Made in USA (may include imported hardware)
        • Precisely welded for superior strength and fit
        • Protected by a durable high-gloss black powder coat finish
        • Rated to 1,500 lbs. gross trailer weight and 150 lbs. tongue weight

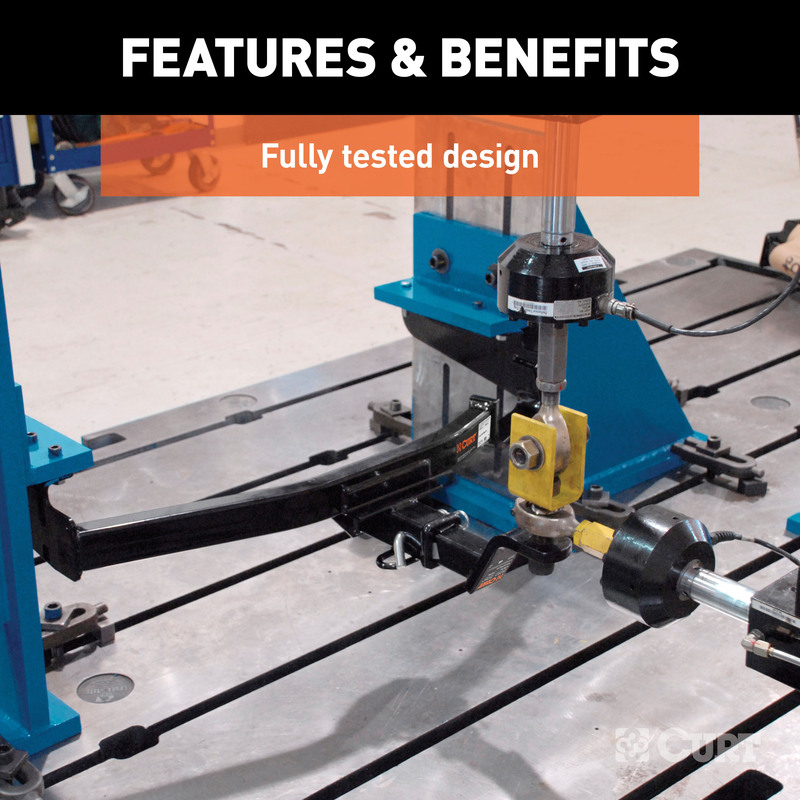

        • Tested for safety in accordance with SAE J684
        Retail price
        • $415.95
        Features
        • SKU
          11514
        • Brand
          CURT
        • Class ID
          1
        • Container Cases Qty - XA
          0
        • Container Pallet Qty - XA
          0
        • Container Unit Qty - XA
          0
        • Container Volume Cubic Feet - XA
          0.00000
        • Container Volume Cubic Meter - XA
          0.00000
        • Container Weight KG - XA
          0
        • Container Weight Lbs - XA
          0
        • Finish - XA
          GLOSS BLACK POWDER COAT
        • Height
          7.56 in.
        • Height - Box 1
          10.0 in.
        • Item Class
          MFH
        • Length
          17.98 in.
        • Length - Box 1
          31.0 in.
        • Master Case Height Inches - XA
          0.000
        • Master Case ITF14
          0
        • Master Case ITF14 - XA
          0
        • Master Case Inner Pack Qty - XA
          0
        • Master Case Length Inches - XA
          0.000
        • Master Case Qty - XA
          0
        • Master Case Volume Cubic Feet - XA
          0.00000
        • Master Case Weight Lbs - XA
          0.000
        • Master Case Width Inches - XA
          0.000
        • Material - XA
          Carbon Steel
        • Mount Type Description - XA
          Blank
        • Pallet Case Per - XA
          0
        • Pallet Case Per Layer - XA
          0
        • Pallet Cases Per - XA
          0
        • Pallet Cases Per Layer - XA
          0
        • Pallet Layer of Cases - XA
          0
        • Pallet Qty - XA
          40.000
        • Pallet Total Height Inches - XA
          0.000
        • Pallet Total Weight Per - XA
          0.000
        • Parcel Allowed
          Yes
        • Price Code - XA
          165
        • Prop 65 Label Text - XA
          Blanks
        • Prop 65 Material - XA
          Unknown
        • Prop 65 Reason - XA
          Unknown
        • Prop 65 Warning Label Type - XA
          Unknown
        • Prop 65 Warning Y/N - XA
          NO
        • Rate Class - XA
          175.0
        • Sales Family Code - XA
          HITCH
        • Sales Family Description - XA
          HITCH
        • Sales Group Description - XA
          CL 1
        • Shipping Weight - XA
          17.250
        • Side Application Type Description - XA
          Blank
        • Tariff 301
          No
        • Title
          Class 1 Fixed-Tongue Trailer Hitch with 3/4" Trailer Ball Hole
        • Trailer Hitch Main Bar Shape
          Flat
        • Truckload Cases Qty - XA
          0
        • Truckload Pallets Qty - XA
          0
        • Truckload Units Qty - XA
          0
        • Truckload Volume Cubic Feet - XA
          0.00000
        • Truckload Weight - XA
          0
        • Warranty
          Limited Lifetime - One Year on Finish, One Year on Parts
        • Weight Carrying Capacity
          1,500 lbs.
        • Weight Distribution (WD)
          n/a
        • Weight Distribution Tongue Weight (WDTW)
          n/a
        • Width - Box 1
          15.0 in.
