Class 1 Fixed-Tongue Trailer Hitch with 3/4" Trailer Ball Hole
        CURT

        Class 1 Fixed-Tongue Trailer Hitch with 3/4" Trailer Ball Hole

        Part Number:11632
        CURT class 1 trailer hitches are the lightest-duty hitches of our rear mount lineup. They are engineered for reliability, welded together with quality steel and blasted clean for a smooth finish. Tested to meet the strict demands of the industry, this CURT class 1 hitch has a capacity to tow up to 1,500 lbs. of gross trailer weight and 150 lbs. of tongue weight. This means it can handle a variety of small trailers such as single-axle utility trailers, canoe and kayak trailers, dirt bike trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). This class 1 hitch is a fixed-tongue hitch, having a fixed draw bar to accept a trailer ball rather than a receiver tube to accept a ball mount. Class 1 hitches are typically mounted on compact cars, full-size cars and some smaller crossover SUVs, minivans and compact SUVs. This particular hitch is designed to be a custom-fit trailer hitch for certain years of the Subaru sedan 2WD or 4WD (including Loyale) (to verify your vehicle compatibility, see the CURT application guide at curtmfg.com). It comes with all necessary installation hardware. Each CURT class 1 hitch is co-cured with a liquid A-coat and a high-gloss black powder coat that provide a lasting defense against rust, wear and harmful UV rays.
        • Class 1 Fixed-Tongue Trailer Hitch with 3/4" Trailer Ball Hole

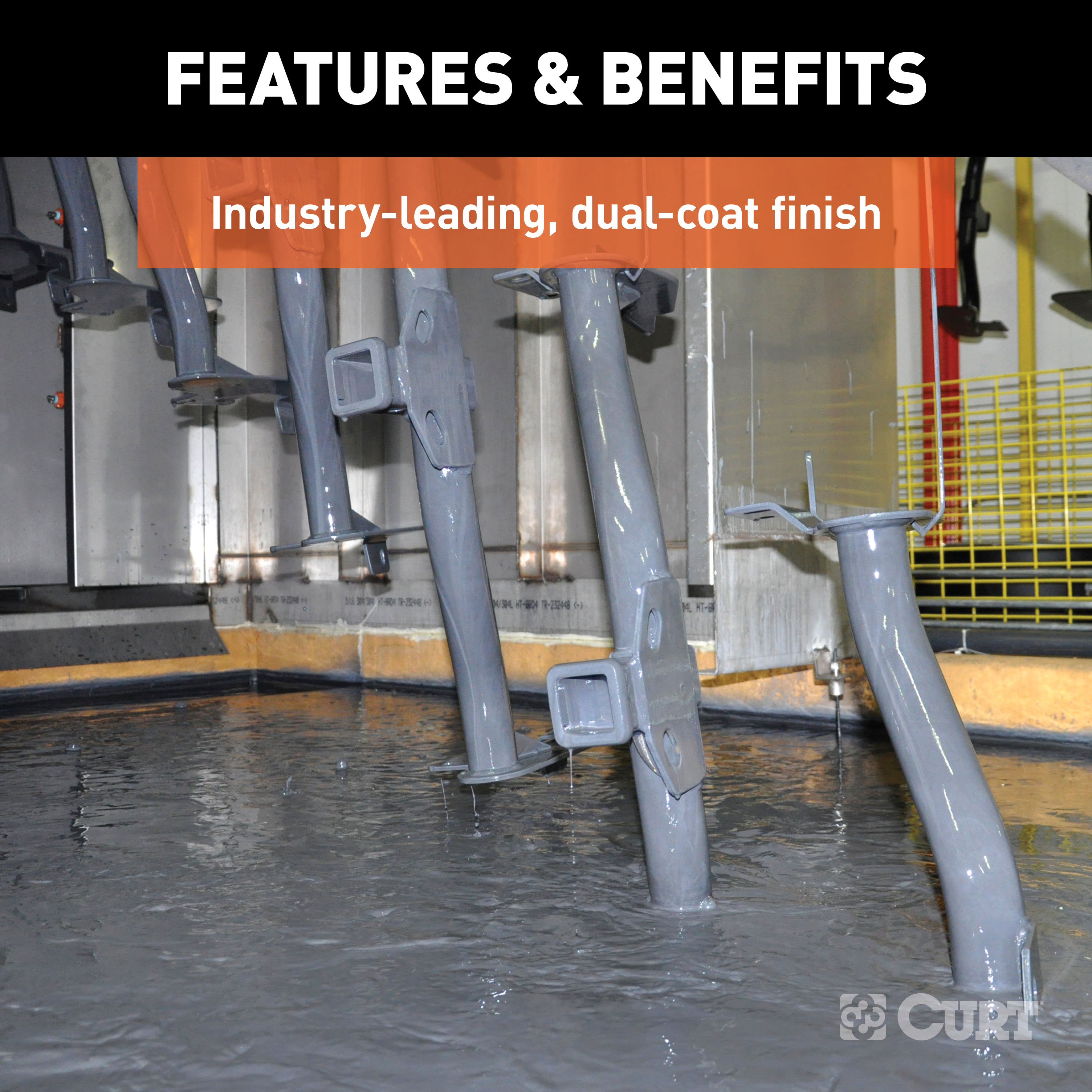

        • Co-cured in a rust-resistant liquid A-coat, inside and out

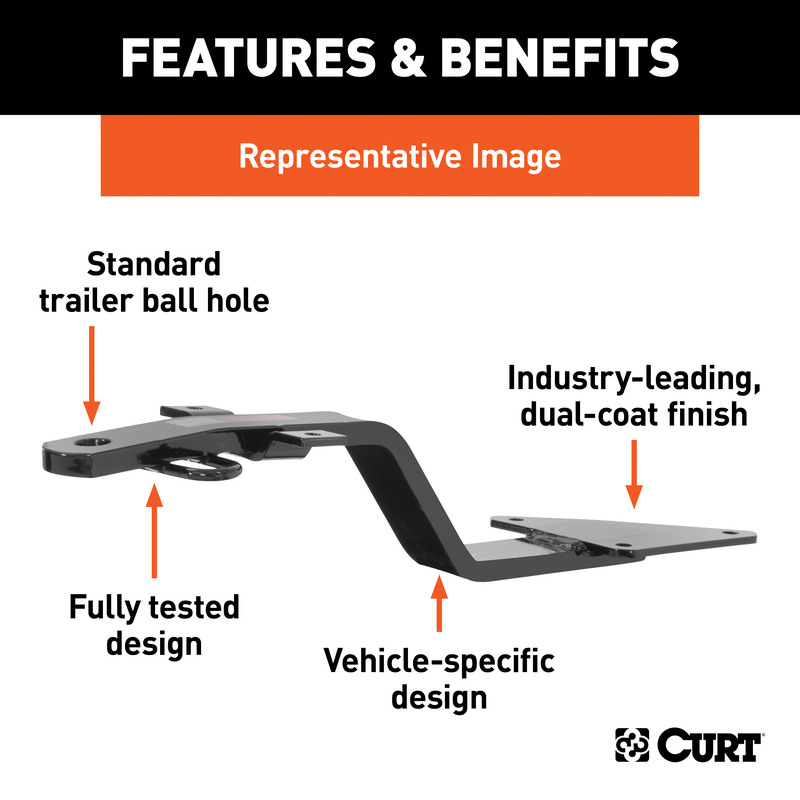

        • Concealed main body for OE look and seamless integration with the vehicle
        • Engineered with a vehicle-specific design for a custom fit
        • Fixed drawbar readily accepts a 3/4" trailer ball shank
        • Limited lifetime warranty (one-year finish, one-year parts)
        • Made in USA (may include imported hardware)
        • Precisely welded for superior strength and fit
        • Protected by a durable high-gloss black powder coat finish
        • Rated to 1,500 lbs. gross trailer weight and 150 lbs. tongue weight
        • Tested for safety in accordance with SAE J684
        Retail price
        • $386.95
        Features
        • SKU
          11632
        • Brand
          CURT
        • Class ID
          1
        • Container Cases Qty - XA
          0
        • Container Pallet Qty - XA
          0
        • Container Unit Qty - XA
          0
        • Container Volume Cubic Feet - XA
          0.00000
        • Container Volume Cubic Meter - XA
          0.00000
        • Container Weight KG - XA
          0
        • Container Weight Lbs - XA
          0
        • Finish - XA
          GLOSS BLACK POWDER COAT
        • Height
          14.0 in.
        • Height
          4.81 in.
        • Height - Box 1
          16.0 in.
        • Item Class
          MFH
        • Length
          17.75 in.
        • Length - Box 1
          13.0 in.
        • Master Case Height Inches - XA
          0.000
        • Master Case ITF14
          0
        • Master Case ITF14 - XA
          0
        • Master Case Inner Pack Qty - XA
          0
        • Master Case Length Inches - XA
          0.000
        • Master Case Qty - XA
          0
        • Master Case Volume Cubic Feet - XA
          0.00000
        • Master Case Weight Lbs - XA
          0.000
        • Master Case Width Inches - XA
          0.000
        • Material - XA
          Carbon Steel
        • Mount Type Description - XA
          Blank
        • Pallet Case Per - XA
          0
        • Pallet Case Per Layer - XA
          0
        • Pallet Cases Per - XA
          0
        • Pallet Cases Per Layer - XA
          0
        • Pallet Layer of Cases - XA
          0
        • Pallet Qty - XA
          50.000
        • Pallet Total Height Inches - XA
          0.000
        • Pallet Total Weight Per - XA
          0.000
        • Parcel Allowed
          Yes
        • Price Code - XA
          159
        • Prop 65 Label Text - XA
          Blanks
        • Prop 65 Material - XA
          Unknown
        • Prop 65 Reason - XA
          Unknown
        • Prop 65 Warning Label Type - XA
          Unknown
        • Prop 65 Warning Y/N - XA
          NO
        • Rate Class - XA
          125.0
        • Sales Family Code - XA
          HITCH
        • Sales Family Description - XA
          HITCH
        • Sales Group Description - XA
          CL 1
        • Shipping Weight - XA
          12.350
        • Side Application Type Description - XA
          Blank
        • Tariff 301
          No
        • Title
          Class 1 Fixed-Tongue Trailer Hitch with 3/4" Trailer Ball Hole
        • Trailer Hitch Main Bar Shape
          Flat
        • Truckload Cases Qty - XA
          0
        • Truckload Pallets Qty - XA
          0
        • Truckload Units Qty - XA
          0
        • Truckload Volume Cubic Feet - XA
          0.00000
        • Truckload Weight - XA
          0
        • Warranty
          Limited Lifetime - One Year on Finish, One Year on Parts
        • Weight Carrying Capacity
          1,500 lbs.
        • Weight Distribution (WD)
          n/a
        • Weight Distribution Tongue Weight (WDTW)
          n/a
        • Width
          9.5 in.
        • Width - Box 1
          13.0 in.
