Commercial Duty Class 5 Hitch, 2-1/2", Select Dodge Ram 1500, 2500, 3500
CURT

Commercial Duty Class 5 Hitch, 2-1/2", Select Dodge Ram 1500, 2500, 3500

Part Number:15704

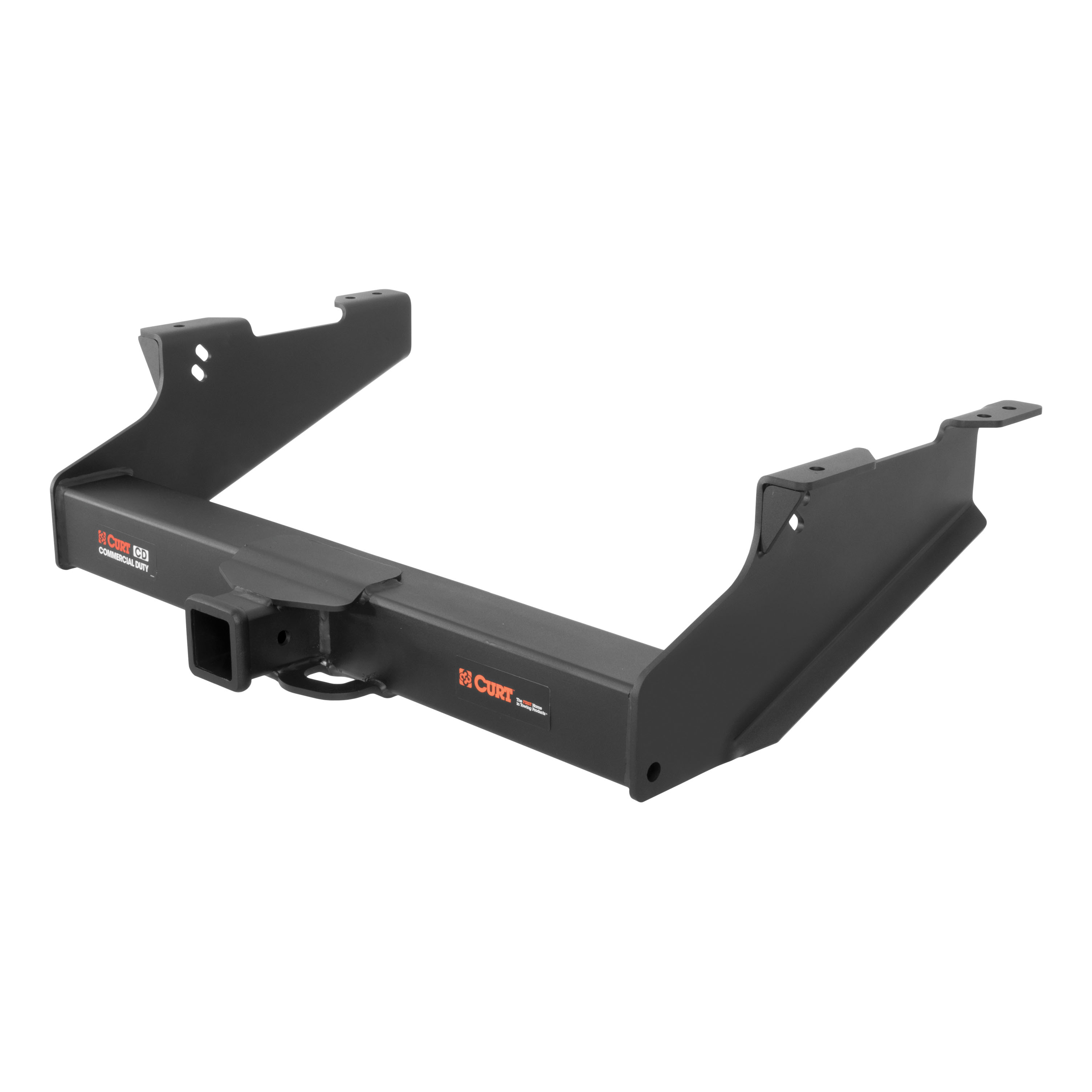

CURT 15704 Commercial Duty Class 5 Trailer Hitch, 2-1/2-Inch Receiver, Compatible with Select Dodge Ram 1500, 2500, 3500

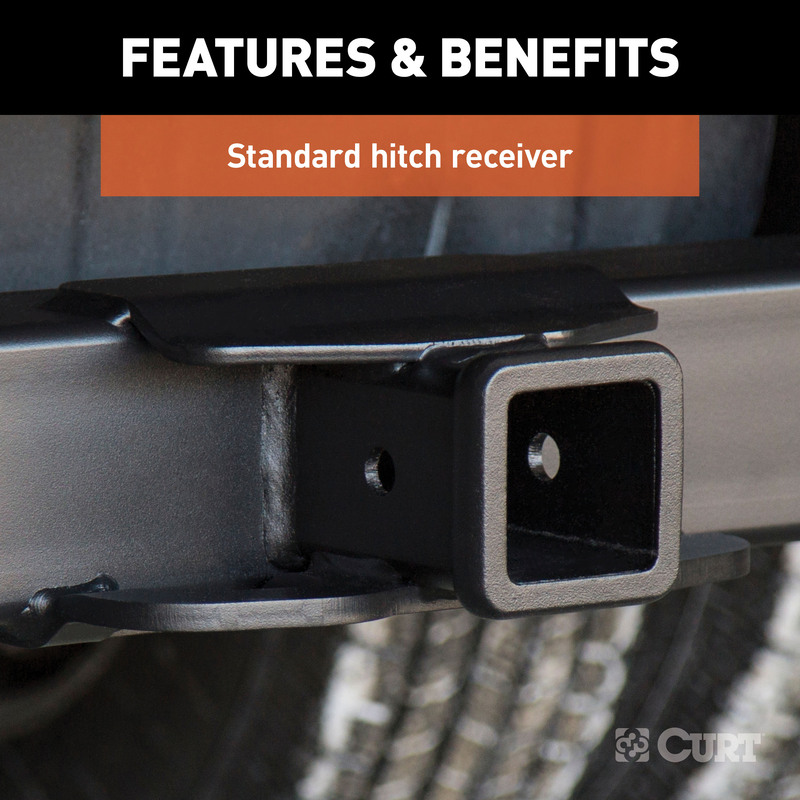

In the world of commercial towing, more is expected. A job cannot be completed if the equipment cannot handle the workload. That is why CURT developed the Commercial Duty class 5 trailer hitch. Constructed from steel and engineered for power, these class 5 hitches are designed to complement the towing power of full-size, commercial pickup trucks, including diesels and chassis cabs. They can easily handle a variety of oversize trailers, including toy and car haulers, livestock trailers, dumper trailers, large flatbed trailers, large boat trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component). This particular class 5 hitch features a gross trailer weight capacity of 18,000 lbs. and a tongue weight capacity of 2,700 lbs. It is designed to be a custom trailer hitch for certain years of the Dodge Ram 1500, 2500 and 3500 (to verify your vehicle compatibility, see application info). All CURT Commercial Duty class 5 hitches feature a 2-1/2" x 2-1/2" receiver tube opening to accept the strongest of ball mounts and towing accessories. They are perfect for mounting standard ball mounts, pintle mounts, tow hooks and weight distribution hitches as well as winch mounts and cargo carriers. CURT class 5 tow hitches are protected by a co-curing of liquid A-coat and carbide black powder coat finish. They also mount with grade-8 hardware, included with each hitch.

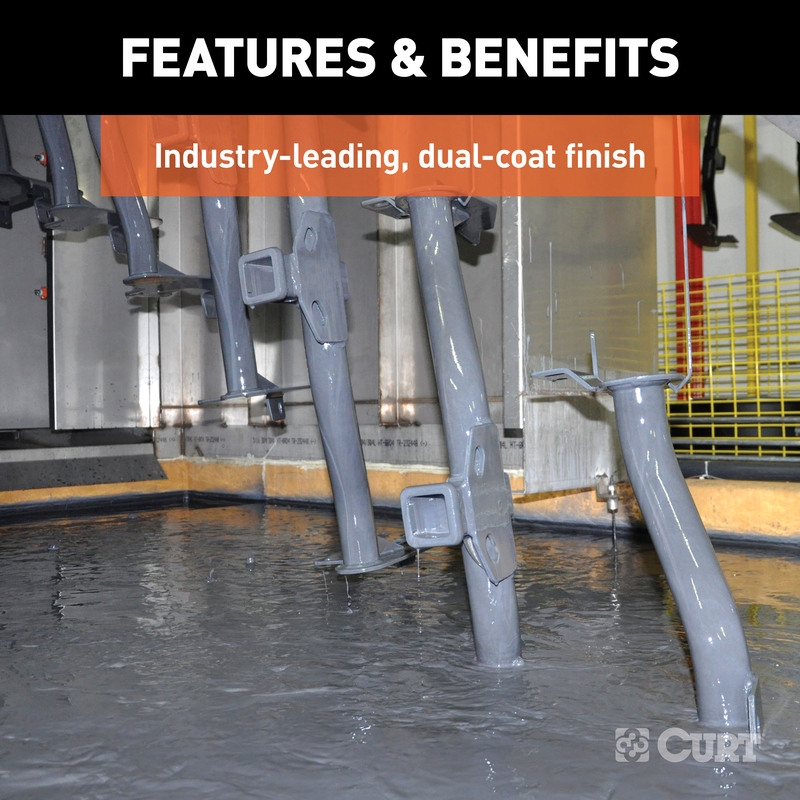

  • Co-cured in a rust-resistant liquid A-coat, inside and out
  • Compatible with weight distribution hitch (18,000 lbs. WD / 2,700 lbs. WDTW)
  • Constructed with a large, powerful main body

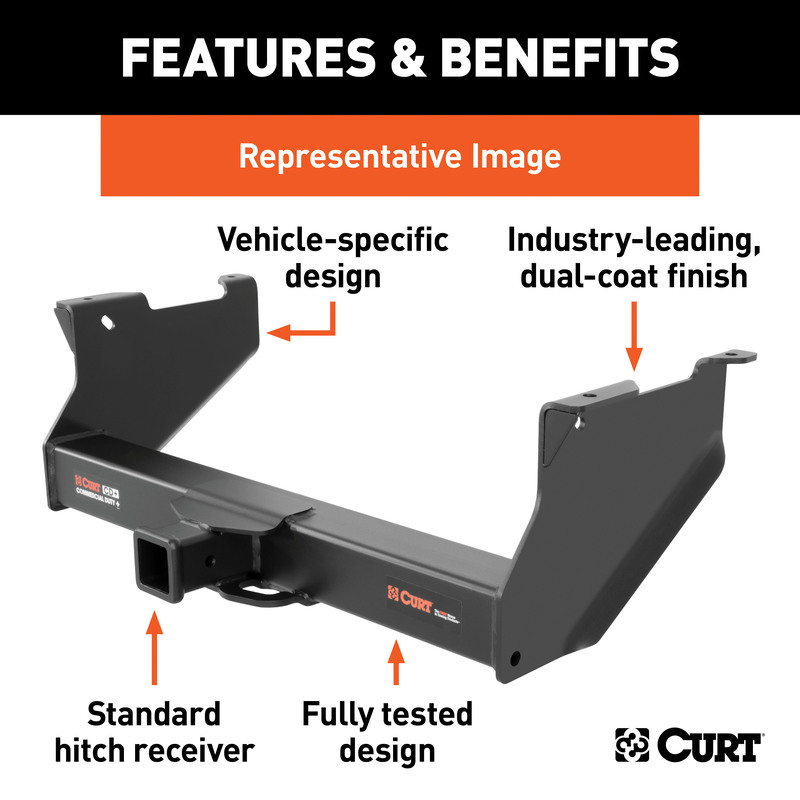

  • Engineered with a vehicle-specific design for a custom fit
  • Equipped with an open-back receiver for easy cleaning
  • Features wide safety chain openings for heavy-duty hooks
  • Limited lifetime warranty (one-year finish, one-year parts)
  • Made in USA (may include imported hardware)
  • Precisely welded for superior strength and fit
  • Protected by a highly durable carbide powder coat finish
  • Rated to 18,000 lbs. gross trailer weight and 2,700 lbs. tongue weight

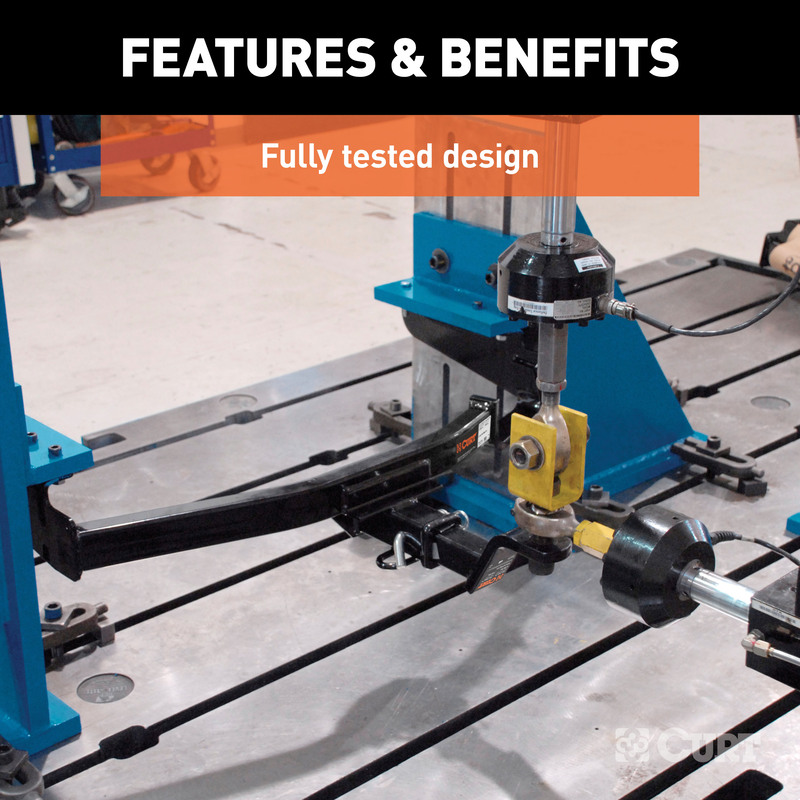

  • Tested for safety in accordance with SAE J684

Retail price
  • $657.95
Features
  • SKU
    15704
  • Brand
    CURT
  • Class ID
    10
  • Height
    11.1 in.
  • Height - Box 1
    33.0 in.
  • Item Class
    MFH
  • Length
    41.5 in.
  • Length - Box 1
    48.0 in.
  • Parcel Allowed
    Yes
  • Receiver Size
    2.50 in.
  • Tariff 301
    No
  • Tongue Weight
    2,700 lbs.
  • Trailer Hitch Main Bar Shape
    Square
  • Warranty
    Limited Lifetime - One Year on Finish, One Year on Parts
  • Weight Carrying Capacity
    18,000 lbs.
  • Weight Distribution
    18,000 lbs.
  • Weight Distribution Tongue Weight
    2,700 lbs.
  • Width - Box 1
    14.0 in.
