E16 5th Wheel Hitch, Select Silverado, Sierra 2500, 3500 HD, 8' Bed Puck System
        CURT

        E16 5th Wheel Hitch, Select Silverado, Sierra 2500, 3500 HD, 8' Bed Puck System

        Part Number:16097

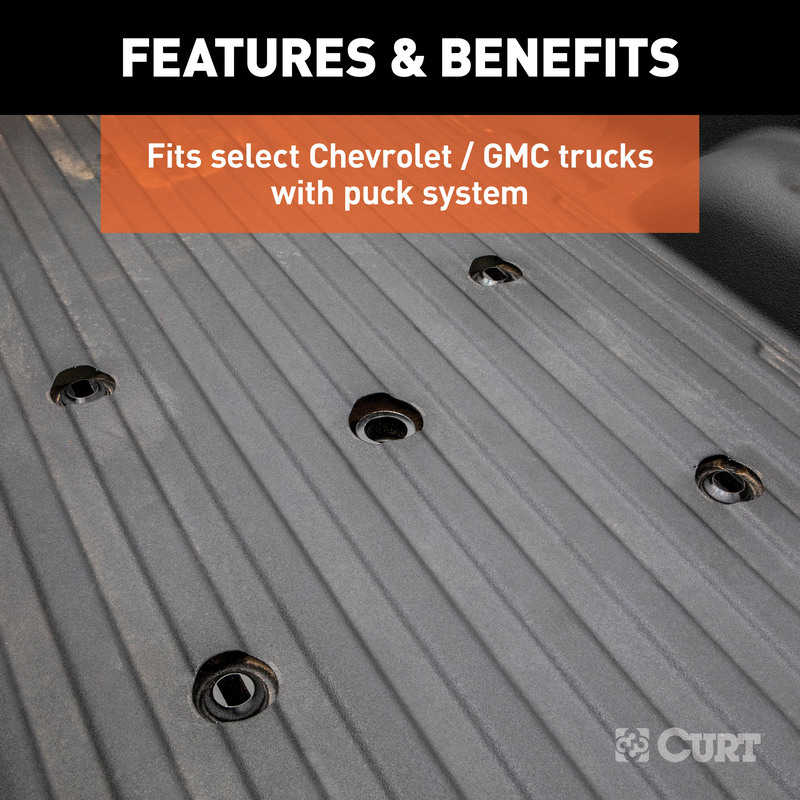

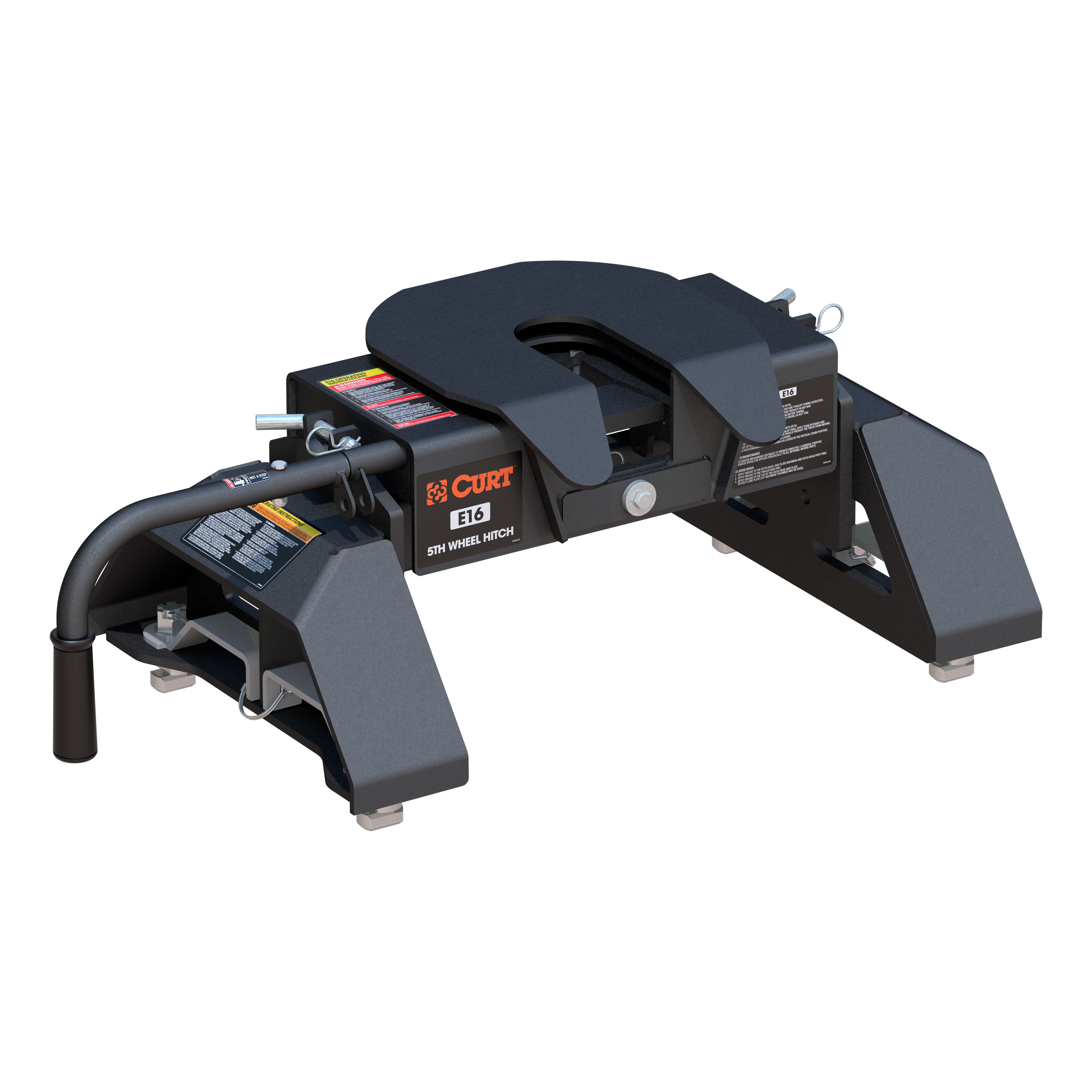

        The CURT E16 5th wheel trailer hitch is an economical choice that offers a variety of features for smooth, safe 5th wheel towing. The E16 has a gross trailer weight rating of 16,000 lbs. and can withstand a vertical load up to 4,000 lbs. It comes with a dual-pivoting head, 10 degrees of lateral movement and an anti-rattle skid plate to provide a smoother, quieter ride. The E16 also comes with easy, single-handle operation and a durable carbide black powder coat for long-lasting protection against the elements. With four height adjustment settings, the E16 is quick and simple to install, and it is backed by a limited lifetime warranty. This 16K 5th wheel hitch comes with a set of CURT OEM puck system 5th wheel legs, designed to be mounted on select Chevrolet or GMC long-bed pickup trucks with the truck bed puck system (year range specific). Using a set of quarter-turn anchors, the legs quickly and easily drop into the pucks, instantly mounting the E16 hitch and equipping the truck for 5th wheel towing. The anchors feature an adjustable design to perfectly lock the hitch into place and eliminate any chucking noises, and the legs are finished in a durable carbide black powder coat to be highly resistant to scratches, rust and UV damage. These legs are intended to fit select Chevrolet and GMC pickup trucks with the puck system and cannot be installed without it.
        • Adjustable anchors to eliminate chucking between the legs and puck system
        • Automatically locks for easy, secure coupling
        • Compatible with kingpin extension boxes, including common pivoting pin boxes
        • Features an anti-rattle skid plate for a quiet ride
        • Limited lifetime warranty (one-year finish, one-year parts)

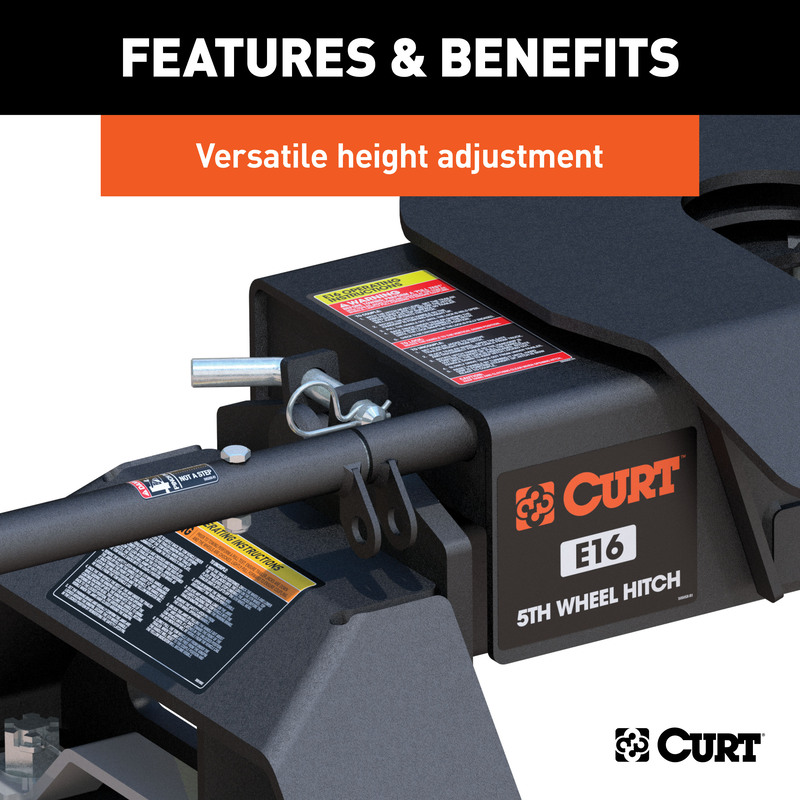

        • Offers four height adjustment positions to adapt to each unique truck bed
        • Operates using a single handle

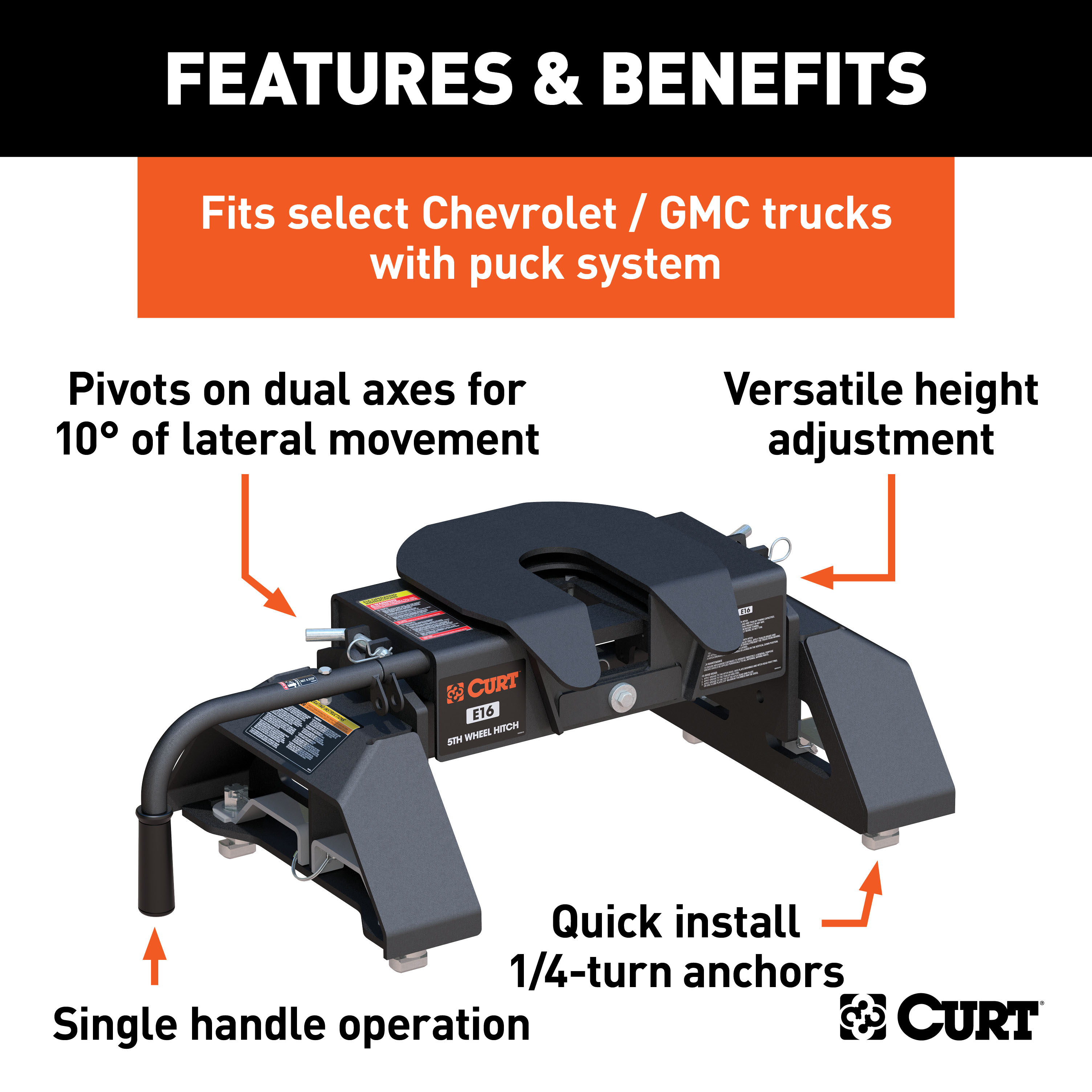

        • Pivots on dual axes for 10 degrees of lateral movement
        • Protected by a highly durable carbide powder coat finish

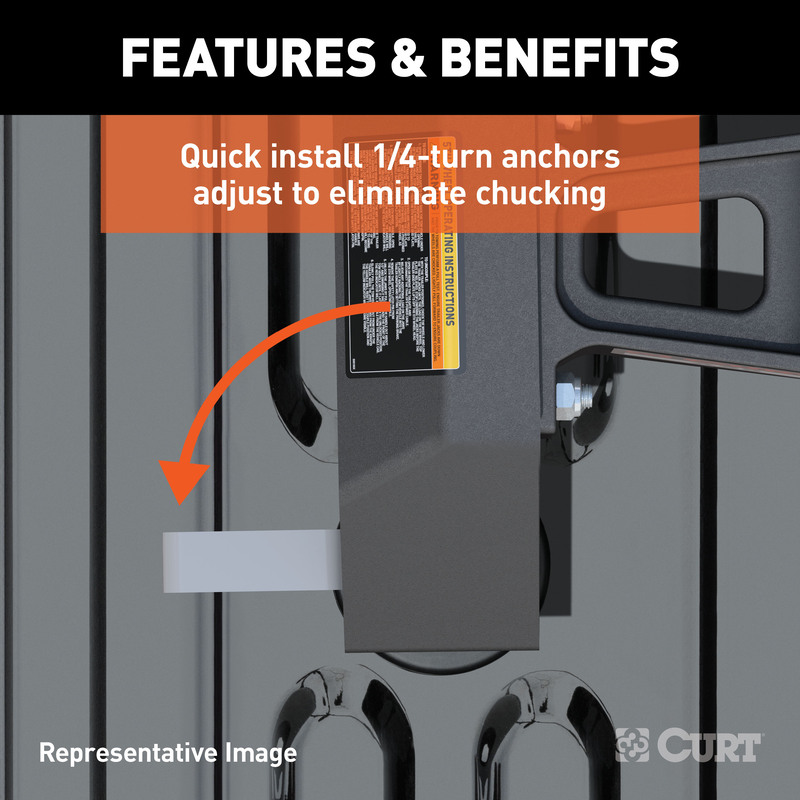

        • Quarter-turn anchoring system provides quick installation and removal
        • Tested for safety in accordance with SAE J2638
        Retail price
        • $1,177.95
        Features
        • SKU
          16097
        • Brand
          CURT
        • Box Height in Inches - XA
          0
        • Box Length in Inches - XA
          0
        • Box Width in Inches - XA
          0
        • Class ID
          0
        • Color
          Carbide Black
        • Container Cases Qty - XA
          0
        • Container Pallet Qty - XA
          0
        • Container Unit Qty - XA
          0
        • Container Volume Cubic Feet - XA
          0.00000
        • Container Volume Cubic Meter - XA
          0.00000
        • Container Weight KG - XA
          0
        • Container Weight Lbs - XA
          0
        • Finish
          Powder Coated
        • Gross Trailer Weight
          16,000 lbs.
        • Height
          11.0 in.
        • Installation Height

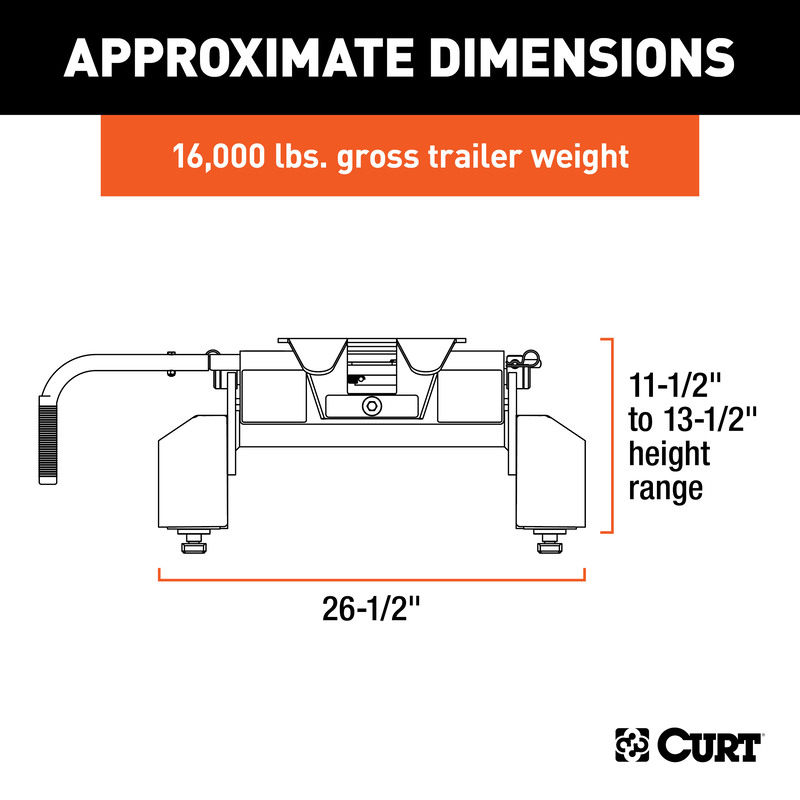

          11.5 - 13.5 in.
        • Item Class
          OBS
        • Item Height - XA
          11.000
        • Item Width - XA
          15.000
        • Length
          24.0 in.
        • Master Case Height Inches - XA
          11.000
        • Master Case ITF14
          0
        • Master Case ITF14 - XA
          0
        • Master Case Inner Pack Qty - XA
          0
        • Master Case Length Inches - XA
          24.000
        • Master Case Qty - XA
          1
        • Master Case Volume Cubic Feet - XA
          0.00000
        • Master Case Weight Lbs - XA
          132.470
        • Master Case Width Inches - XA
          27.700
        • Material - XA
          Carbon Steel
        • Mount Type Description - XA
          Not Applicable
        • Pallet Case Per - XA
          0
        • Pallet Case Per Layer - XA
          0
        • Pallet Cases Per - XA
          1
        • Pallet Cases Per Layer - XA
          1
        • Pallet Layer of Cases - XA
          1
        • Pallet Qty - XA
          1.000
        • Pallet Total Height Inches - XA
          16.000
        • Pallet Total Weight Per - XA
          157.470
        • Parcel Allowed
          Yes
        • Product Weight - XA
          131.470
        • Prop 65 Label Text - XA
          Blanks
        • Prop 65 Material - XA
          Unknown
        • Prop 65 Reason - XA
          Unknown
        • Prop 65 Warning Label Type - XA
          Unknown
        • Prop 65 Warning Y/N - XA
          NO
        • Rate Class - XA
          60.0
        • Sales Family Code - XA
          FIFTH
        • Sales Family Description - XA
          FIFTH WHEEL
        • Sales Group Description - XA
          16K FIFTH WHEEL
        • Side Application Type Description - XA
          Not Applicable
        • Tariff 301
          Yes
        • Title
          E16 5th Wheel Hitch, Select Silverado, Sierra 2500, 3500 HD, 8' Bed Puck System
        • Tongue Weight
          4,000 lbs.
        • Truckload Cases Qty - XA
          20
        • Truckload Pallets Qty - XA
          20
        • Truckload Units Qty - XA
          20
        • Truckload Volume Cubic Feet - XA
          0.00000
        • Truckload Weight - XA
          3149
        • Warranty
          Limited Lifetime - One Year on Finish, One Year on Parts
