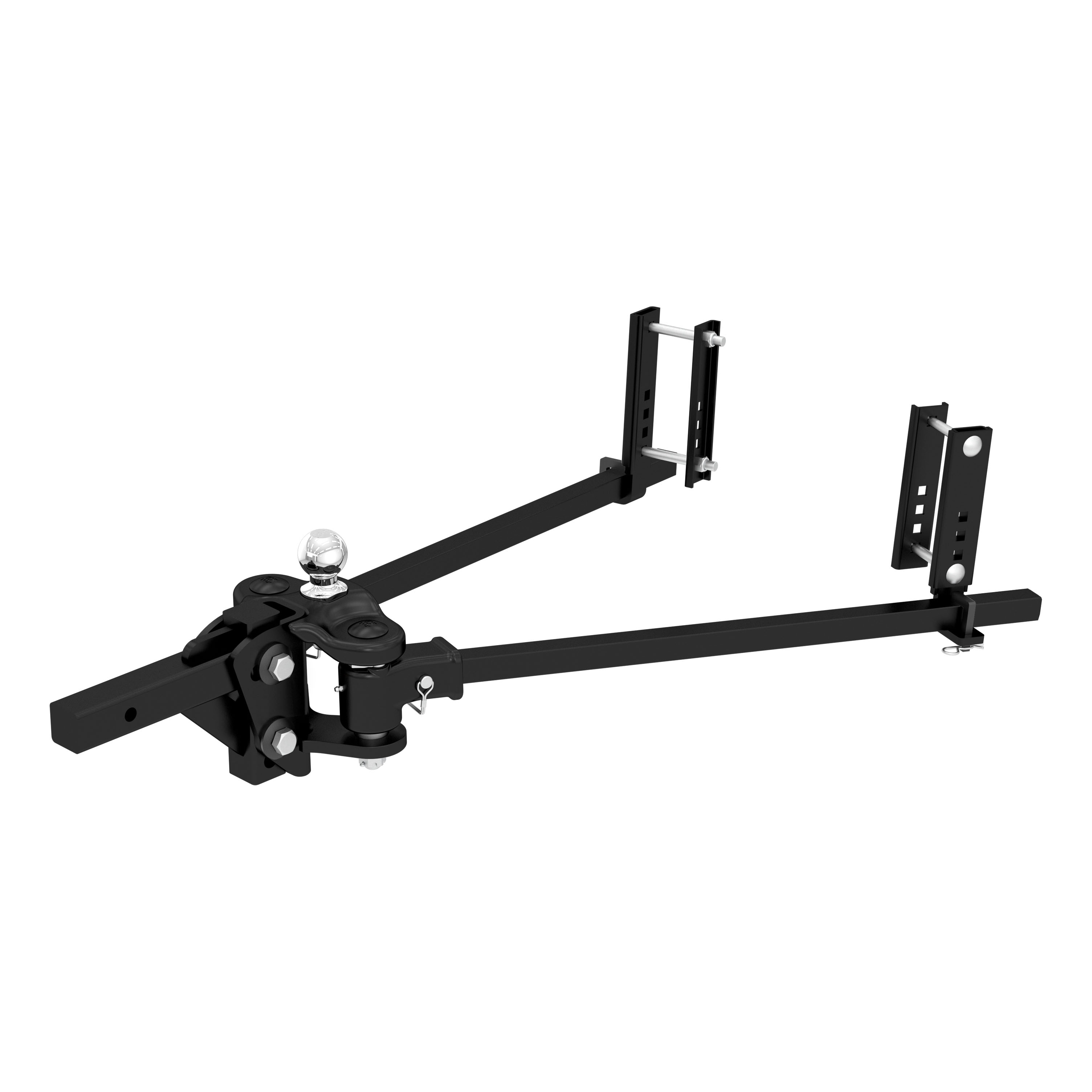

TruTrack 4P Weight Distribution Hitch with 4x Sway Control, 10-15K
        CURT

        TruTrack 4P Weight Distribution Hitch with 4x Sway Control, 10-15K

        Part Number:17501

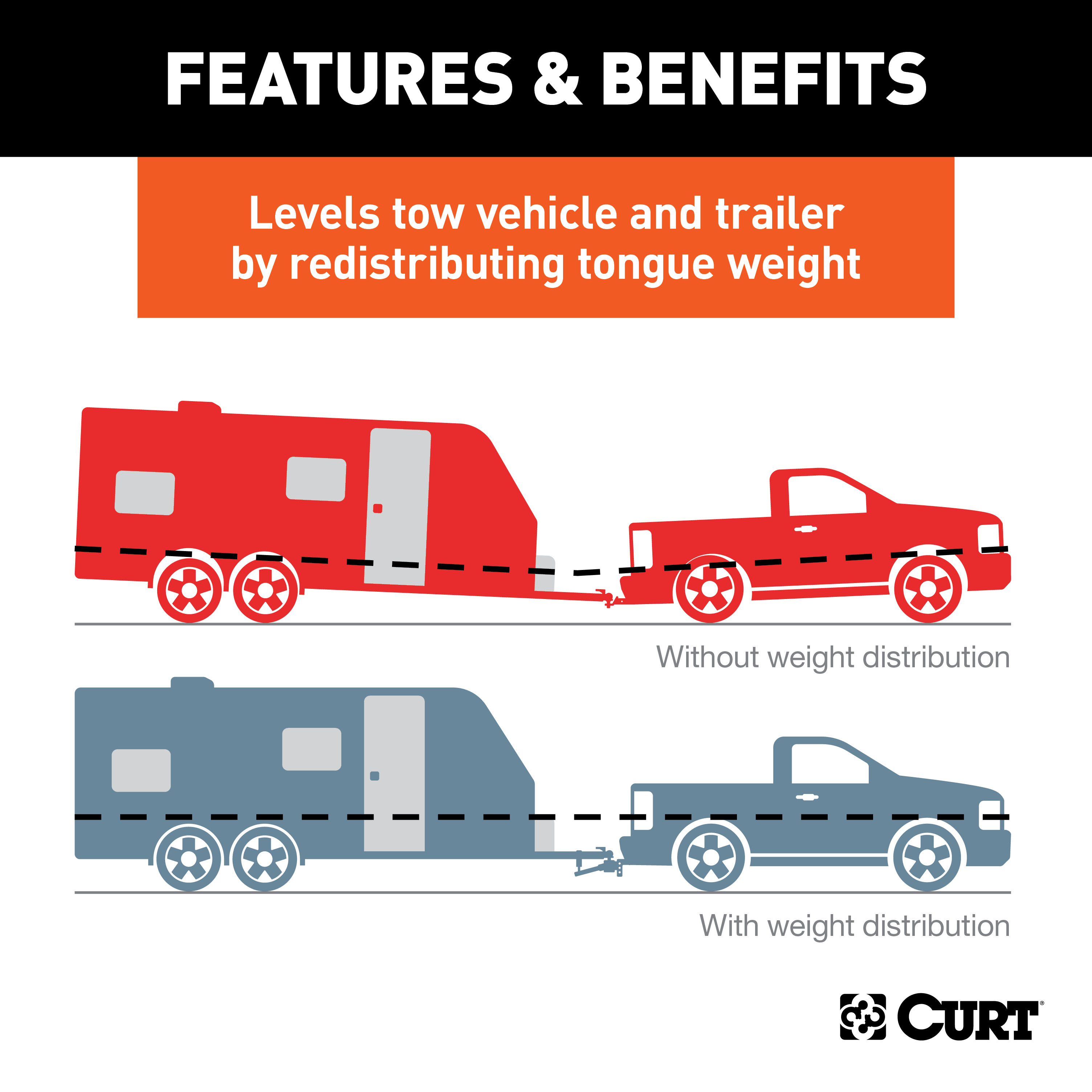

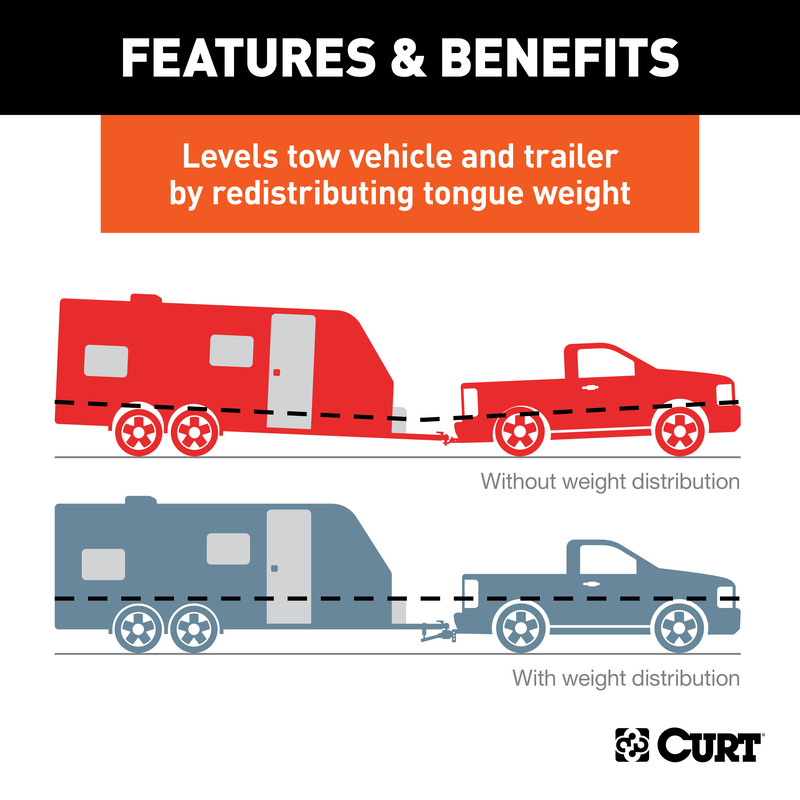

        While many weight distribution hitches are made to be compatible with a sway control attachment, the CURT TruTrack is an advanced WD system that integrates the sway control function into the design of the hitch. It combines precise weight distributing with active sway control to deliver the smoothest, safest ride possible. The TruTrack 4P features a unique spring and cam system within the hitch head that builds up pressure to actively stop sway and then relaxes to make smooth turns. The hardened cam components are less subject to wear and last longer than competitor models. The TruTrack also features unique spring bars. Like all WD hitches, it uses a pair of spring bars to leverage the trailer tongue weight and spread it across all axles of the vehicle-trailer combination. However, instead of using spring bar chains, the TruTrack connects to the trailer frame using heavy-duty, adjustable support brackets that hold the spring bars in place laterally and vertically. While regular spring bars angle from side to side, the integrated sway control arms resist this movement and keep the trailer better aligned. In addition to its integrated sway control, the CURT TruTrack offers the same great quality as our other WD hitches, making it the perfect choice for campers, livestock trailers and other heavy-duty trailers. We stand behind this uncompromising hitch, and to prove it, we back it up with a limited lifetime warranty.
        • 2" shank can be flipped to provide necessary drop or rise

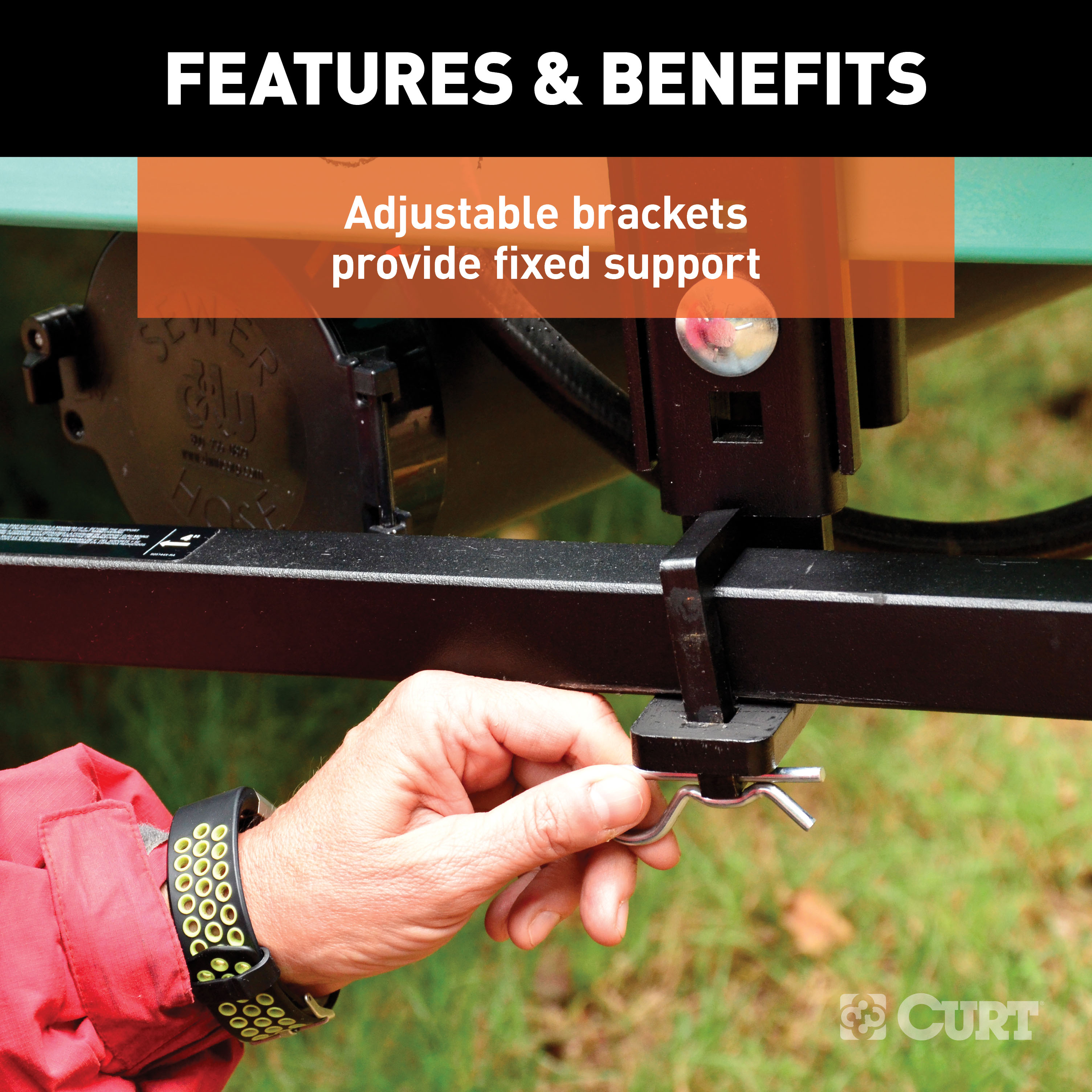

        • Adjustable brackets provide fixed support unlike spring bar chain models

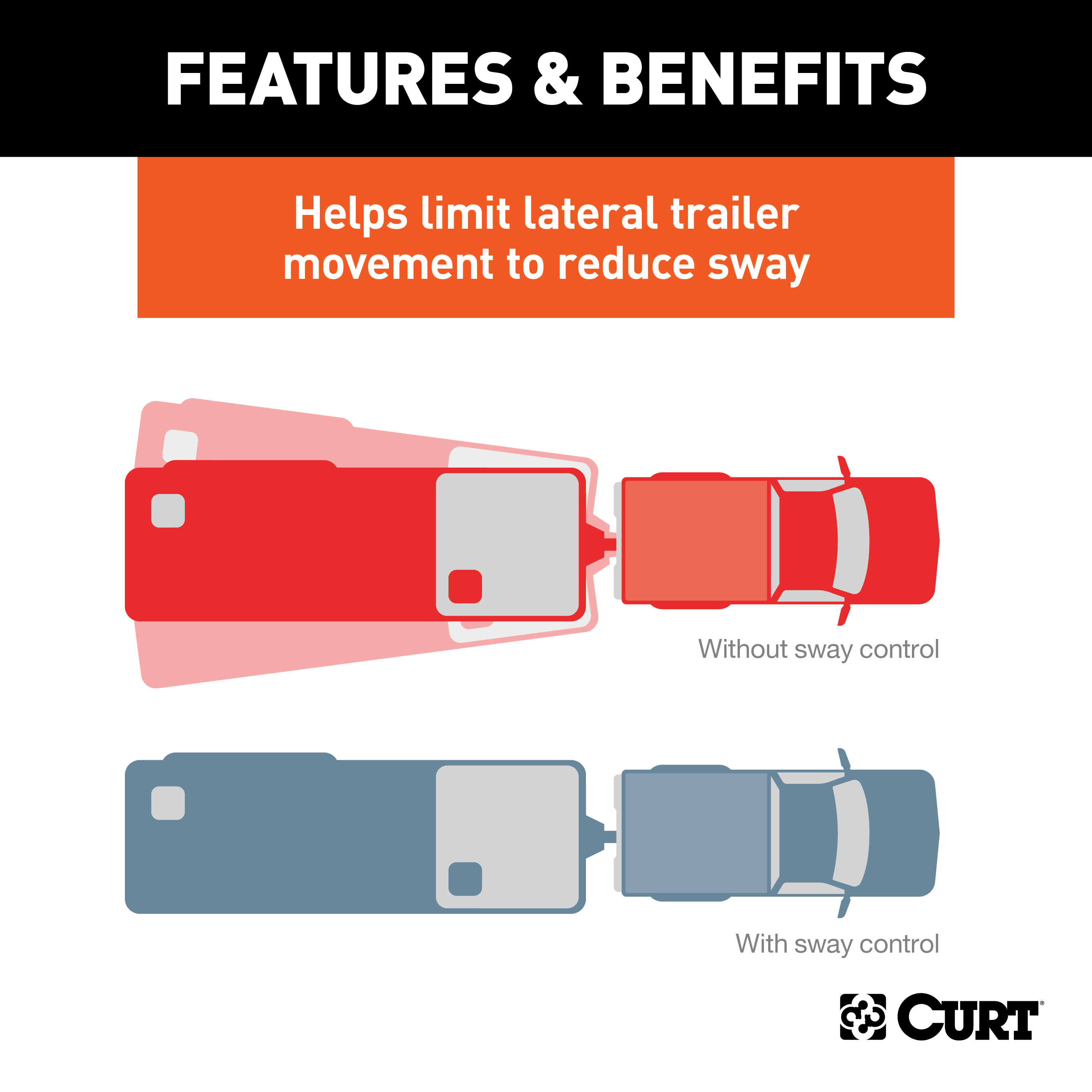

        • Brackets use friction to resist lateral movement, replacing a sway control
        • Carbide black powder coat, black-oxide-plated cams and stainless steel balls

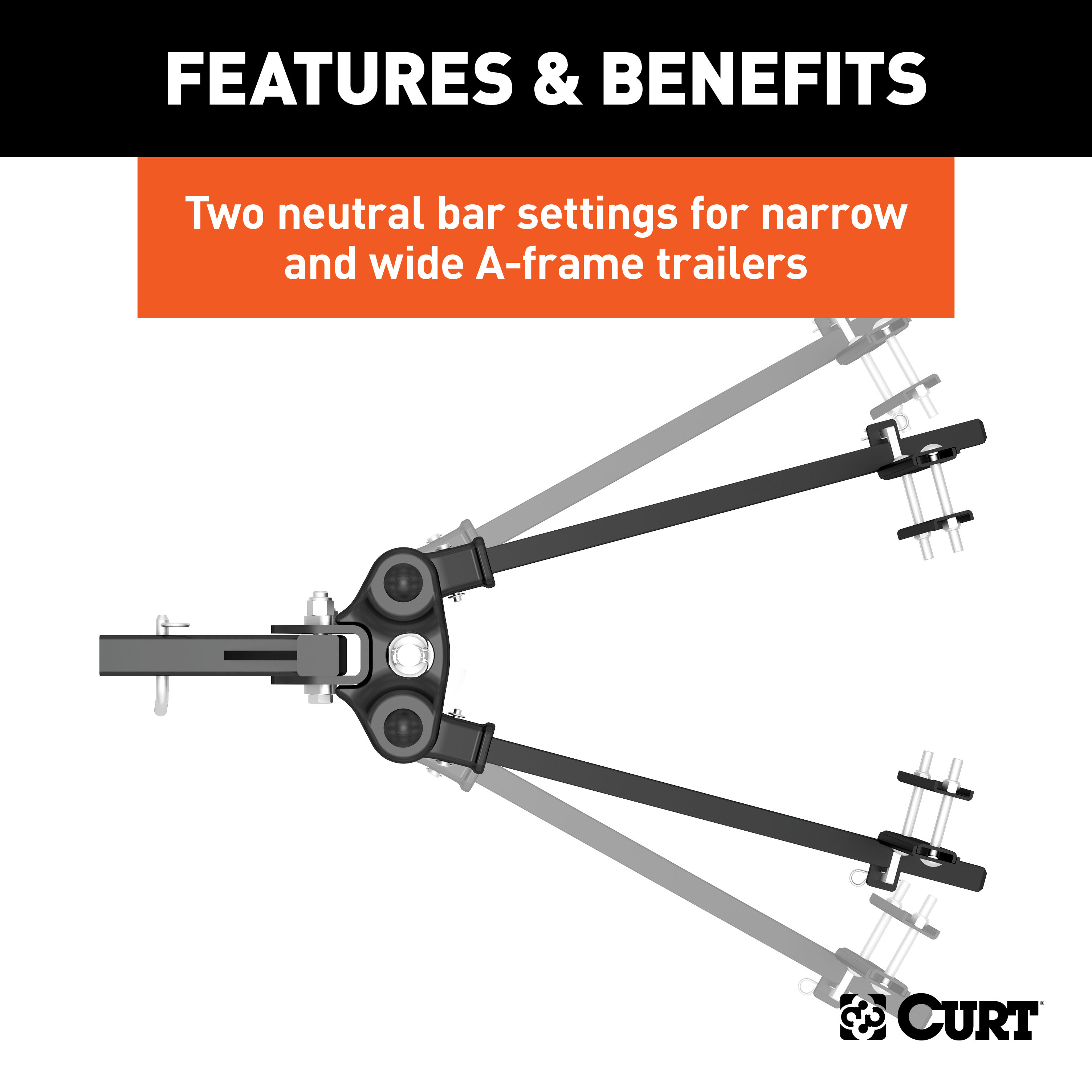

        • Fits virtually all A-frame trailers, featuring two neutral spring bar settings
        • Four points of sway control work together to keep trailer aligned
        • Hex castle nut allows for easy adjustment for different trailers
        • Includes a pre-torqued 2-5/16" trailer ball

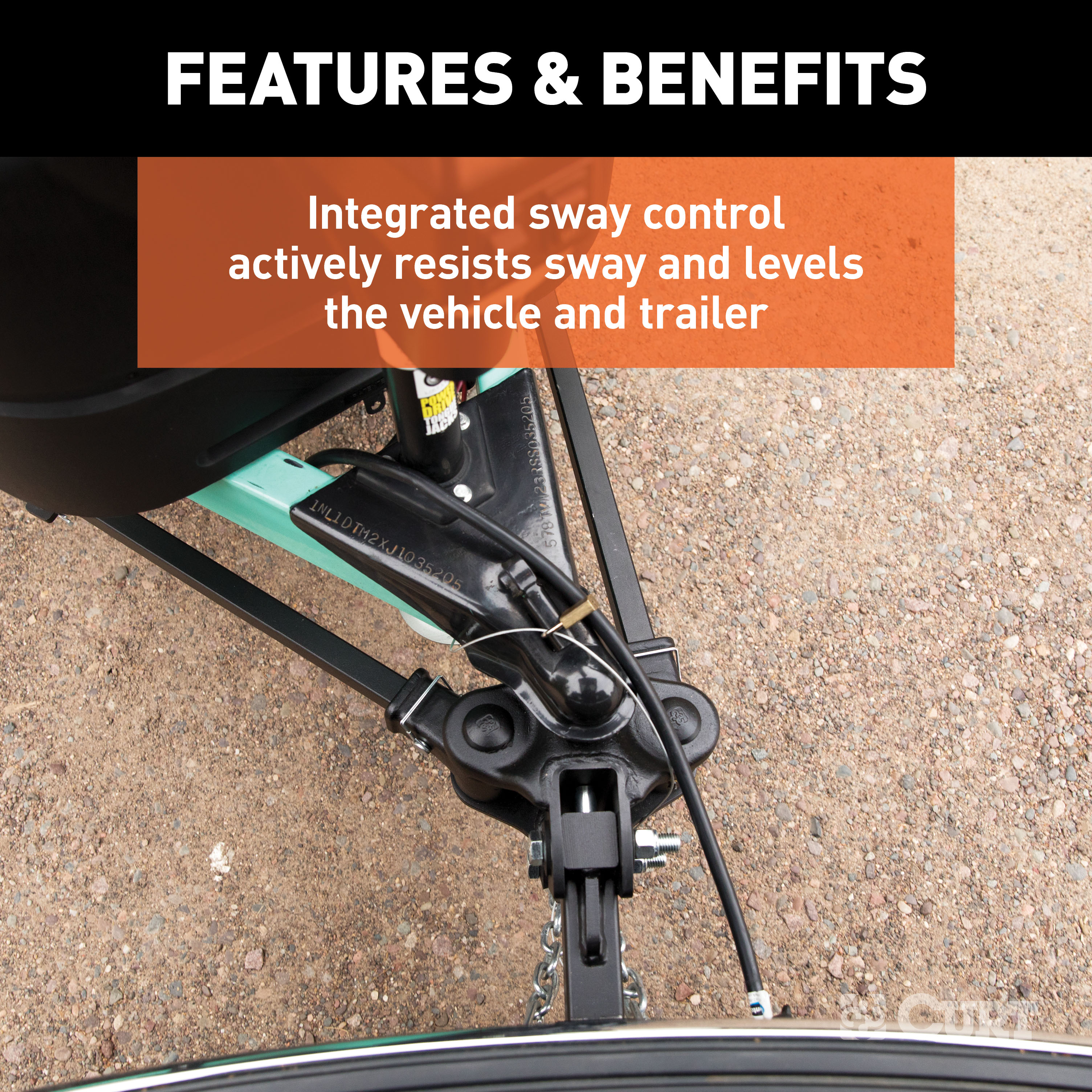

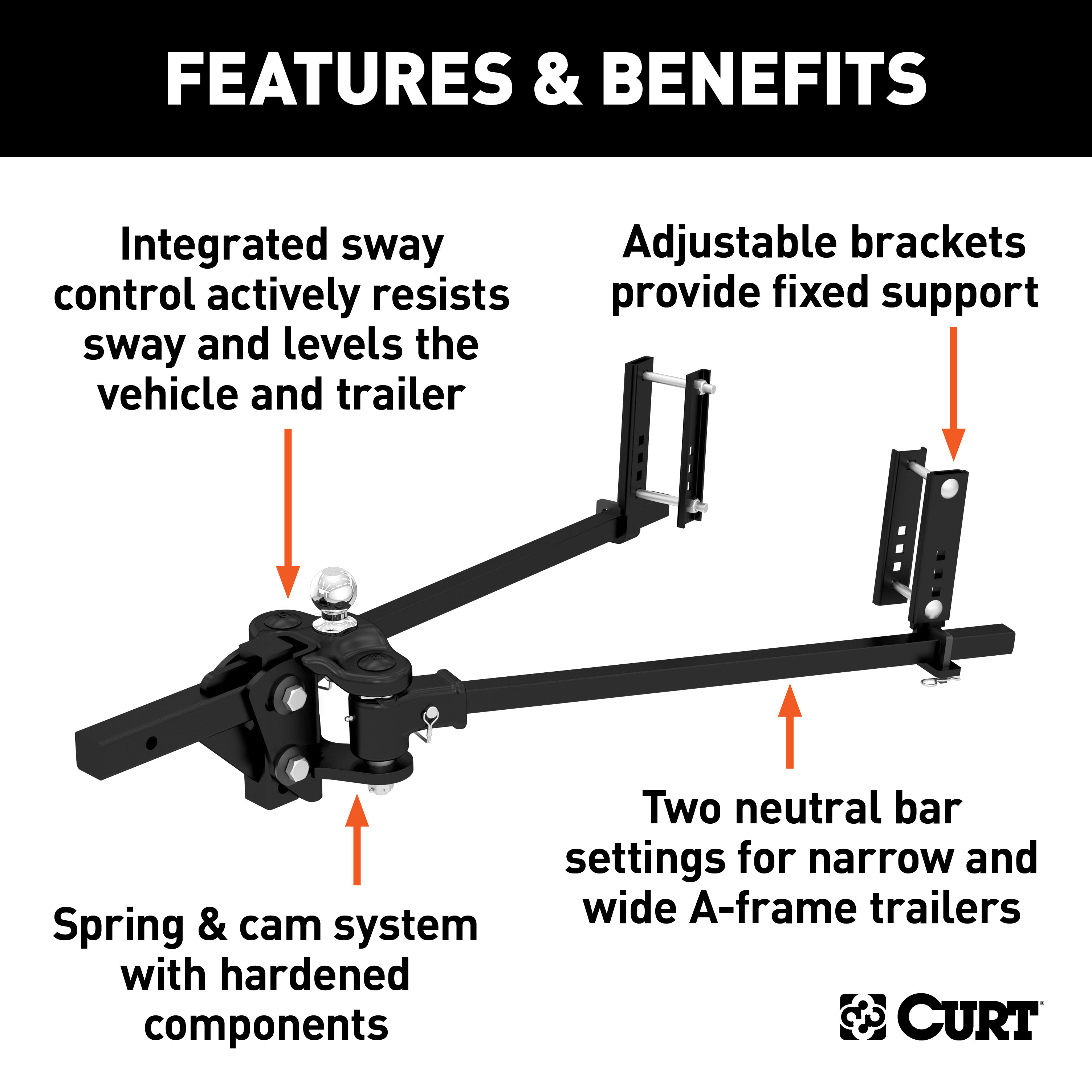

        • Integrated sway control actively resists sway and levels the vehicle and trailer
        • Limited lifetime warranty (one-year finish, one-year parts)

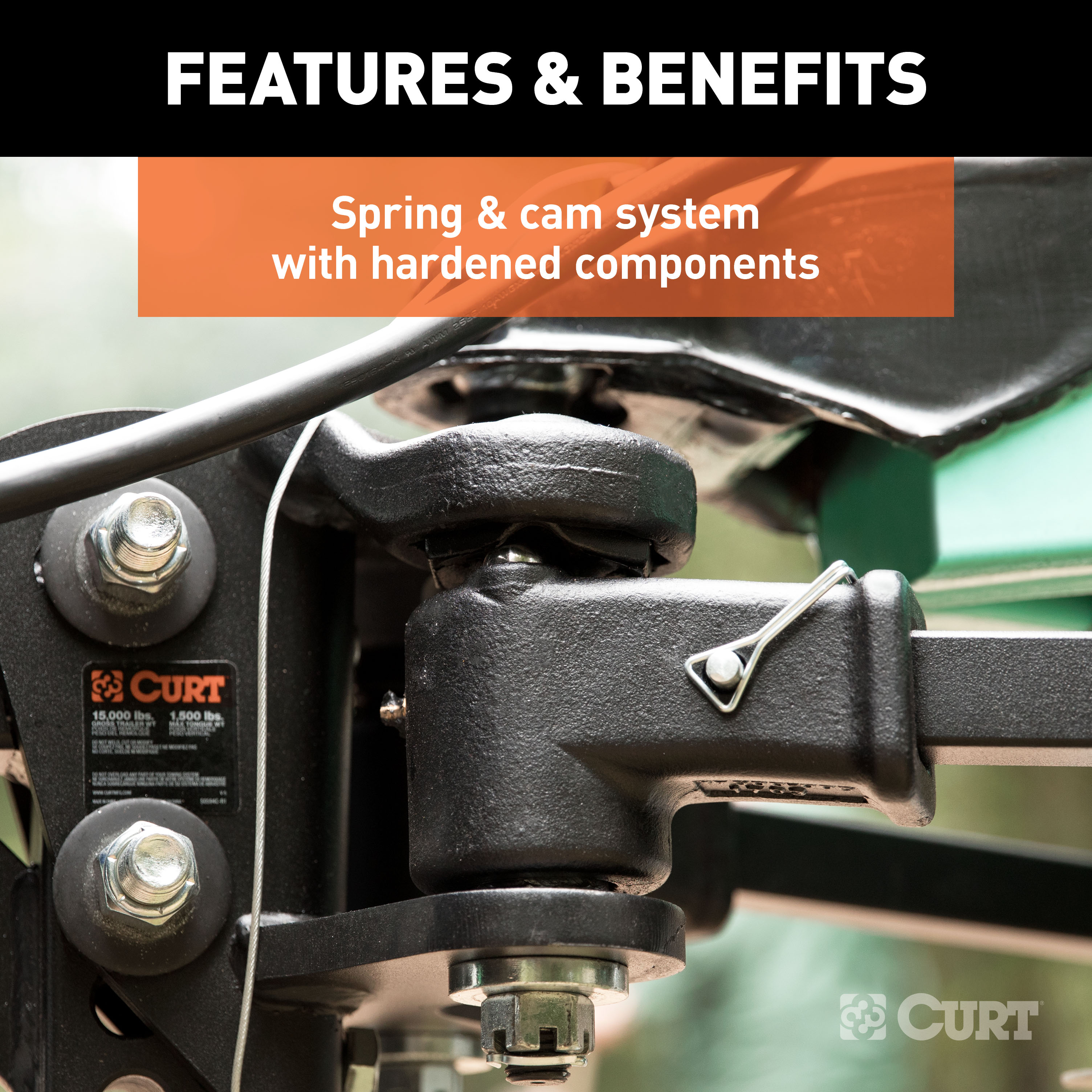

        • Uses spring & cam system with hardened components, instead of friction alone
        • Welded head with cast pieces and trunnion-style forged steel spring bars
        Retail price
        • $939.95
        Features
        • SKU
          17501
        • Brand
          CURT
        • Ball Mount Hitch Drop
          No Drop
        • Box Height in Inches - XA
          0
        • Box Length in Inches - XA
          0
        • Box Width in Inches - XA
          0
        • Class ID
          0
        • Color
          Carbide Black
        • Container Cases Qty - XA
          300
        • Container Load Type - XA
          PALLETS
        • Container Pallet Qty - XA
          20
        • Container Type - XA
          40GP
        • Container Unit Qty - XA
          300
        • Container Volume Cubic Feet - XA
          0.00000
        • Container Volume Cubic Meter - XA
          0.00000
        • Container Weight KG - XA
          0
        • Container Weight Lbs - XA
          37180
        • Finish
          Powder Coated
        • Gross Trailer Weight
          10,000 lbs. - 15,000 lbs.
        • Height
          11.5 in.
        • Item Class
          OBS
        • Item Height - XA
          0.000
        • Item Length - XA
          0.000
        • Item Width - XA
          0.000
        • Master Case Height Inches - XA
          11.600
        • Master Case ITF14
          0
        • Master Case ITF14 - XA
          0
        • Master Case Inner Pack Qty - XA
          0
        • Master Case Length Inches - XA
          13.800
        • Master Case Qty - XA
          1
        • Master Case Volume Cubic Feet - XA
          0.00000
        • Master Case Weight Lbs - XA
          121.000
        • Master Case Width Inches - XA
          37.400
        • Material - XA
          Carbon Steel
        • Mount Type Description - XA
          Blank
        • Pallet Case Per - XA
          15
        • Pallet Case Per Layer - XA
          3
        • Pallet Cases Per - XA
          15
        • Pallet Cases Per Layer - XA
          3
        • Pallet Layer of Cases - XA
          5
        • Pallet Qty - XA
          0.000
        • Pallet Total Height Inches - XA
          63.400
        • Pallet Total Weight Per - XA
          1859.000
        • Parcel Allowed
          Yes
        • Prop 65 Label Text - XA
          Blanks
        • Prop 65 Material - XA
          Unknown
        • Prop 65 Reason - XA
          Unknown
        • Prop 65 Warning Label Type - XA
          Unknown
        • Prop 65 Warning Y/N - XA
          NO
        • Rate Class - XA
          300.0
        • Rate Class - XA
          60.0
        • Sales Family Code - XA
          WDIST
        • Sales Family Description - XA
          WEIGHT DISTRIBUTION
        • Sales Group Description - XA
          TRUTRACK WD SYSTEM
        • Shipping Weight - XA
          123.600
        • Side Application Type Description - XA
          Blank
        • Tariff 301
          Yes
        • Title
          TruTrack 4P Weight Distribution Hitch with 4x Sway Control, 10-15K
        • Tongue Weight
          1,000 lbs. - 1,500 lbs.
        • Truckload Cases Qty - XA
          0
        • Truckload Pallets Qty - XA
          0
        • Truckload Units Qty - XA
          0
        • Truckload Volume Cubic Feet - XA
          0.00000
        • Truckload Weight - XA
          0
        • Warranty
          Limited Lifetime - One Year on Finish, One Year on Parts
