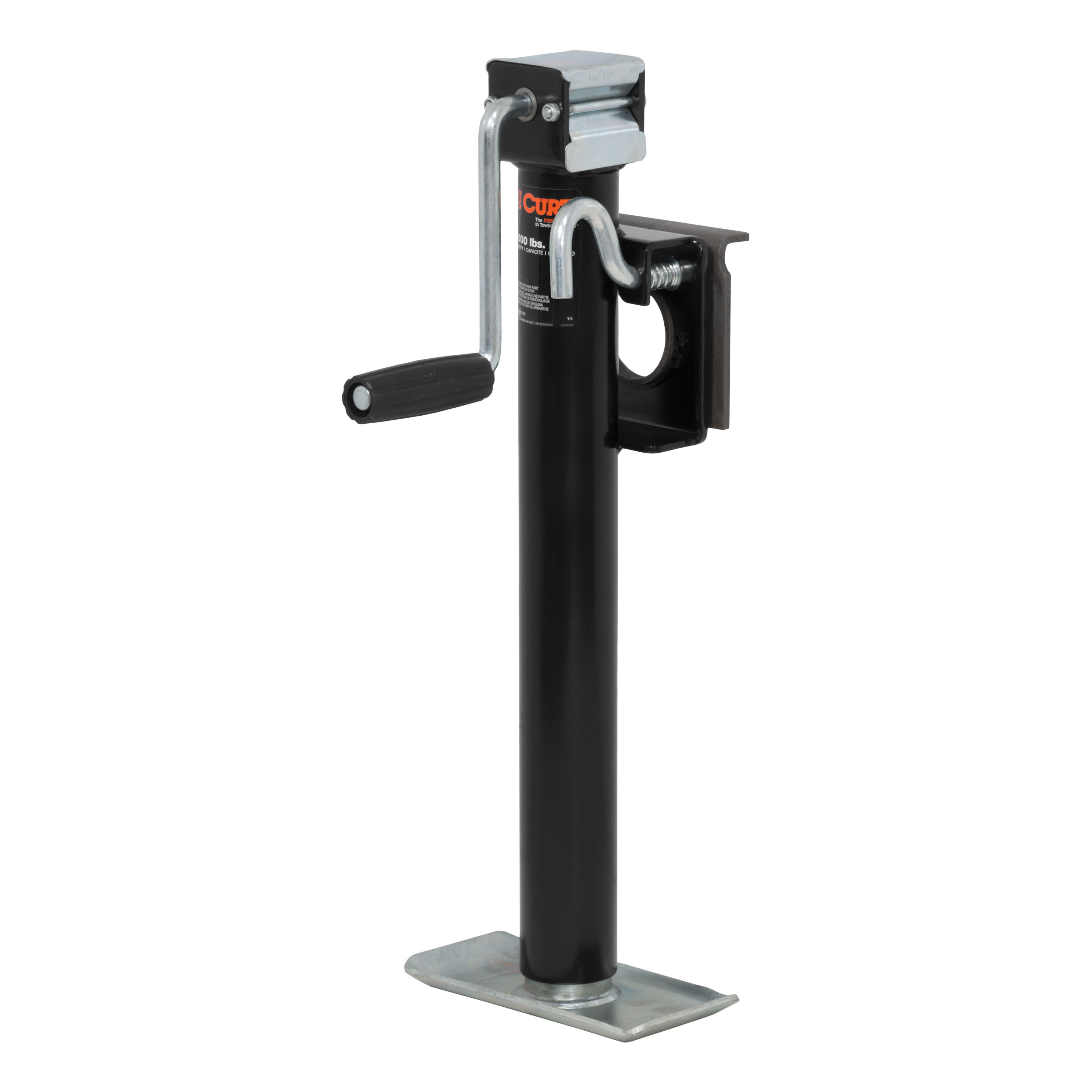

Bracket-Mount Swivel Jack with Side Handle (2,000 lbs, 15" Travel)
        CURT

        Bracket-Mount Swivel Jack with Side Handle (2,000 lbs, 15" Travel)

        Part Number:28306
        In our goal of being your best source for all things towing, the CURT line of trailer jacks is designed with care and manufactured with pride. CURT jacks are made with quality to promote the life and function of your trailer, and they come in several different styles to accommodate your needs, whether you are a frequenter of the boat landing, the campground, the racetrack or the field. CURT swivel jacks get their name from the pull-pin swivel feature that allows the jack to pivot on its mounting bracket and swing up and out of the way for travel. Our swivel trailer jacks are broken into two categories: pipe mount and bracket mount. This CURT bracket mount swivel jack features a support capacity of 3,000 lbs., a lift capacity of 2,000 lbs. and a travel of 15". With a jack foot plate welded on the bottom, this type of jack provides added stability for your trailer on rough terrain. It comes with a side-wind handle and has a weldable bracket for secure mounting. It does not matter what kind of trailer you tow -- a boat trailer, utility trailer, livestock hauler or recreational vehicle trailer -- if you have a receiver-style trailer, you will want a jack that complements its function. For a trailer jack that will not steer you wrong, CURT has the answer.

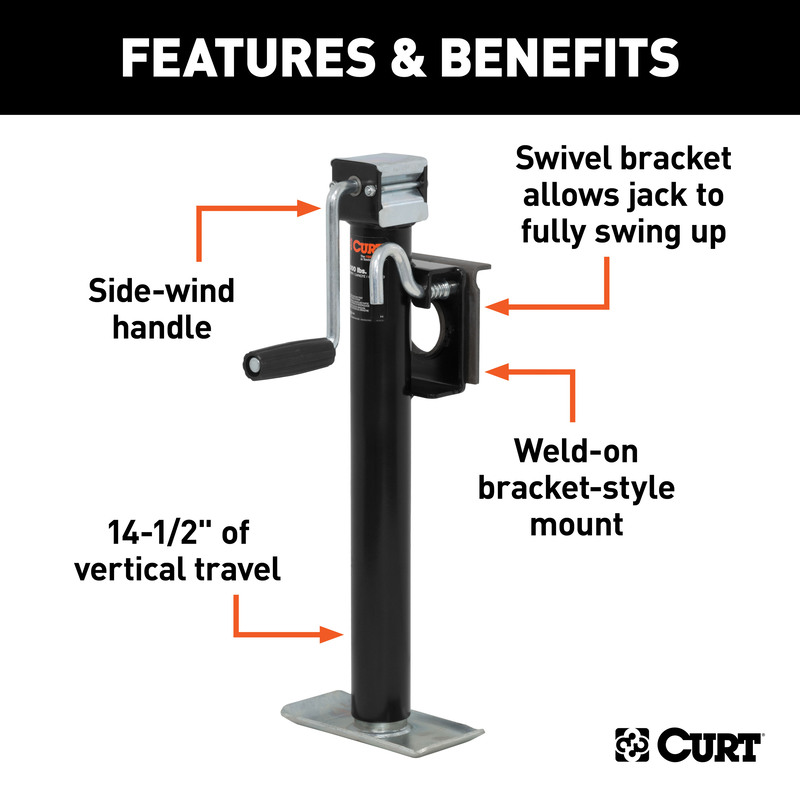

        • 15" of vertical travel accommodate multiple ball heights
        • Limited lifetime warranty (one-year finish, one-year parts)
        • Pull-pin keeps jack securely locked in place
        • Rated for 3,000 lbs. support capacity and 2,000 lbs. lift capacity

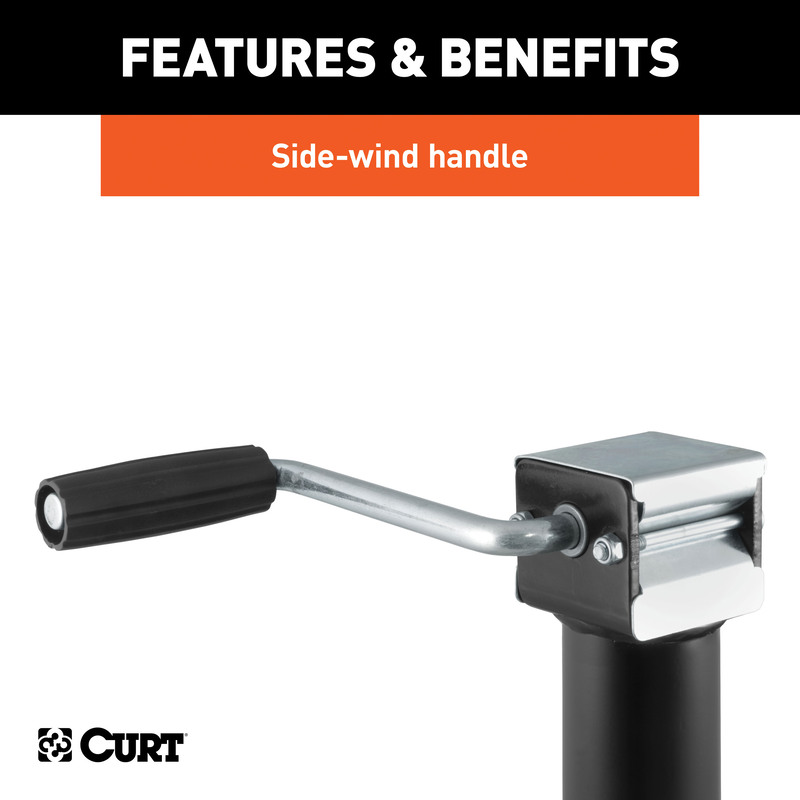

        • Side-wind handle easily raises or lowers trailer coupler

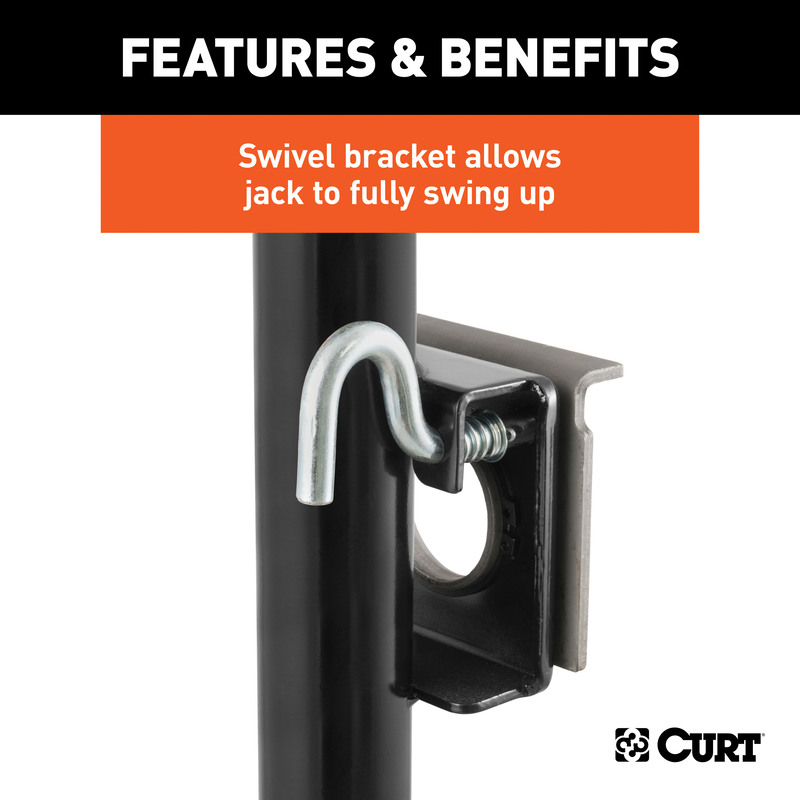

        • Swivel bracket allows jack to fully swing up and out of the way for travel
        • Weld-on bracket-style mount for secure installation
        Retail price
        • $106.95
        Features
        • SKU
          28306
        • Brand
          CURT
        • Attached Wheels
          No
        • Box Height in Inches - XA
          0
        • Box Length in Inches - XA
          0
        • Box Width in Inches - XA
          0
        • Class ID
          0
        • Collapsed Height
          15.5
        • Color
          Black / Silver
        • Color
          Carbide Black
        • Container Cases Qty - XA
          22
        • Container Load Type - XA
          PALLETS
        • Container Pallet Qty - XA
          22
        • Container Type - XA
          20GP
        • Container Unit Qty - XA
          2420
        • Container Volume Cubic Feet - XA
          0.00000
        • Container Volume Cubic Meter - XA
          0.00000
        • Container Weight KG - XA
          0
        • Container Weight Lbs - XA
          38478
        • Finish
          Powder Coated
        • Height
          5.0 in.
        • Item Class
          OBS
        • Item Height - XA
          0.000
        • Item Length - XA
          0.000
        • Item Width - XA
          0.000
        • Length
          22.0 in.
        • Lift Capacity
          2,000 LBS
        • Master Case Height Inches - XA
          0.000
        • Master Case ITF14
          0
        • Master Case ITF14 - XA
          0
        • Master Case Inner Pack Qty - XA
          0
        • Master Case Length Inches - XA
          0.000
        • Master Case Qty - XA
          110
        • Master Case Volume Cubic Feet - XA
          0.00000
        • Master Case Weight Lbs - XA
          1673.000
        • Master Case Width Inches - XA
          0.000
        • Material
          Steel
        • Material - XA
          Blank

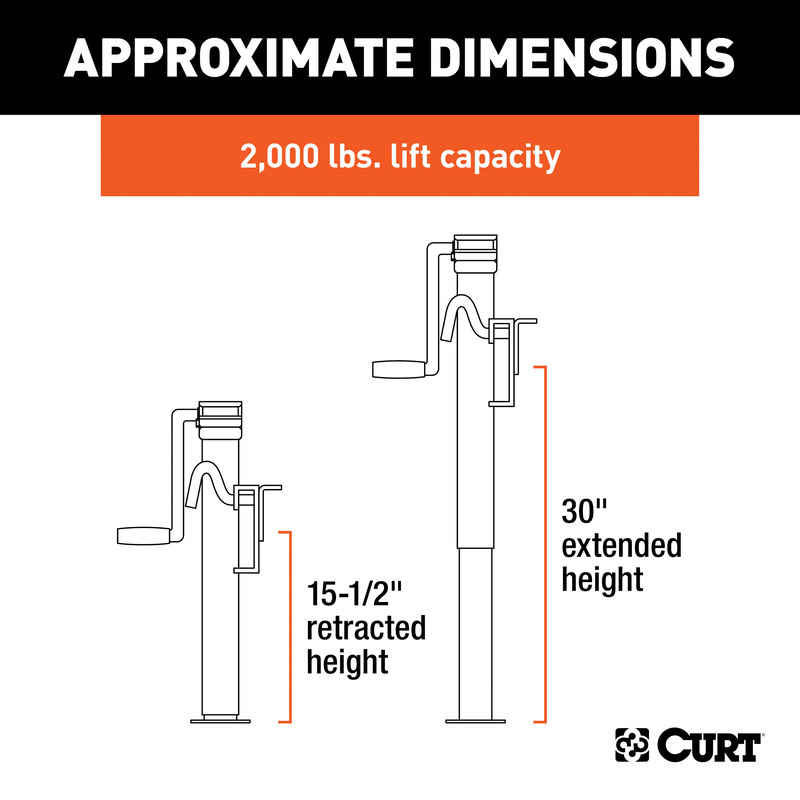

        • Maximum Extended Height
          30
        • Mount Type Description - XA
          Blank
        • Pallet Case Per - XA
          110
        • Pallet Case Per Layer - XA
          0
        • Pallet Cases Per - XA
          110
        • Pallet Cases Per Layer - XA
          0
        • Pallet Layer of Cases - XA
          0
        • Pallet Qty - XA
          0.000
        • Pallet Total Height Inches - XA
          41.000
        • Pallet Total Weight Per - XA
          1749.000
        • Parcel Allowed
          Yes
        • Product Weight - XA
          0.000
        • Prop 65 Label Text - XA
          Blanks
        • Prop 65 Material - XA
          Unknown
        • Prop 65 Reason - XA
          Unknown
        • Prop 65 Warning Label Type - XA
          Unknown
        • Prop 65 Warning Y/N - XA
          NO
        • Rate Class - XA
          65.0
        • Sales Family Code - XA
          TPACC
        • Sales Family Description - XA
          TRAILER PARTS AND ACCESS
        • Sales Group Description - XA
          TRAILER JACK
        • Shipping Weight - XA
          15.200
        • Side Application Type Description - XA
          Blank
        • Support Capacity
          3,000 LBS
        • Tariff 301
          Yes
        • Title
          Bracket-Mount Swivel Jack with Side Handle (2,000 lbs, 15" Travel)
        • Travel
          15.0 in.
        • Truckload Cases Qty - XA
          0
        • Truckload Pallets Qty - XA
          0
        • Truckload Units Qty - XA
          0
        • Truckload Volume Cubic Feet - XA
          0.00000
        • Truckload Weight - XA
          0
        • Warranty
          Limited Lifetime - One Year on Finish, One Year on Parts
        • Weight Capacity
          3,000
