2-5/16" Trailer Ball (1-1/4" x 3" Shank, 6,000 lbs., Chrome, Packaged)
CURT

2-5/16" Trailer Ball (1-1/4" x 3" Shank, 6,000 lbs., Chrome, Packaged)

Part Number:40076
The CURT 2-5/16" trailer ball does not mess around. Simply put, it is a solid piece of towing equipment that makes all others look like they're just spinning their wheels. CURT 2-5/16" trailer balls are made with expert engineering to be packed with strength and durable enough to withstand the harsh wear of heavy-duty towing. Anything your class 5 trailer hitch and class 5 ball mount can handle, CURT has a 2-5/16" trailer ball to match. These tow balls are perfect for towing all types of heavy receiver-style trailers, including dump trailers, toy haulers, farm trailers, chopper boxes, dual-axle utility trailers, deluxe RVs, small yachts and more (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).This 2-5/16" trailer ball features a ball capacity of 6,000 lbs. It features a 1-1/4" shank diameter, a 3" shank length, 0" of rise and a nickel-chrome finish to protect against the elements. To give you the power you need to tow with confidence, CURT 2-5/16" trailer hitch balls are thoroughly tested for safety and meet U.S. VESC specifications.

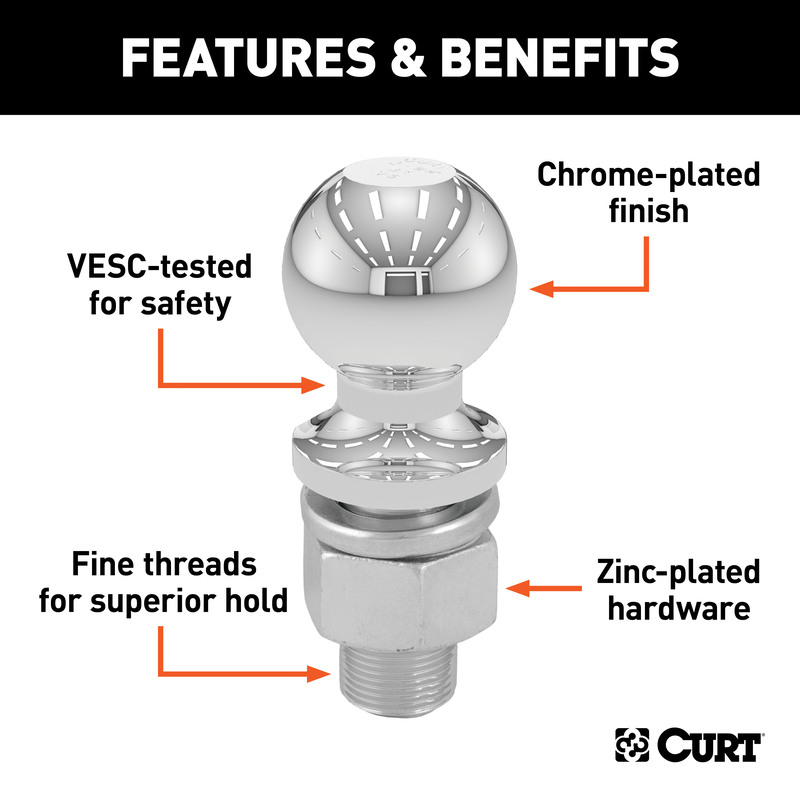

  • Constructed from high-strength, hot-forged steel
  • Features fine threads for superior holding strength
  • Fits 2-5/16" couplers and accepts up to 6,000 lbs. GTW
  • Limited lifetime warranty (one-year finish, one-year parts)
  • Protected by a durable chrome-plated finish
  • Tested for safety to meet U.S. VESC V-5 specifications
  • Zinc-plated hex nut and helical lock washer for secure mounting
Retail price
  • $26.95
Features
  • SKU
    40076
  • Brand
    CURT
  • Ball Capacity
    6,000 lbs.
  • Ball Diameter
    2.313 in.
  • Color
    Silver
  • Finish
    Chrome Plated
  • Height
    3.0 in.
  • Height - Box 1
    2.0 in.
  • Item Class
    OBS
  • Length - Box 1
    7.0 in.
  • Parcel Allowed
    Yes

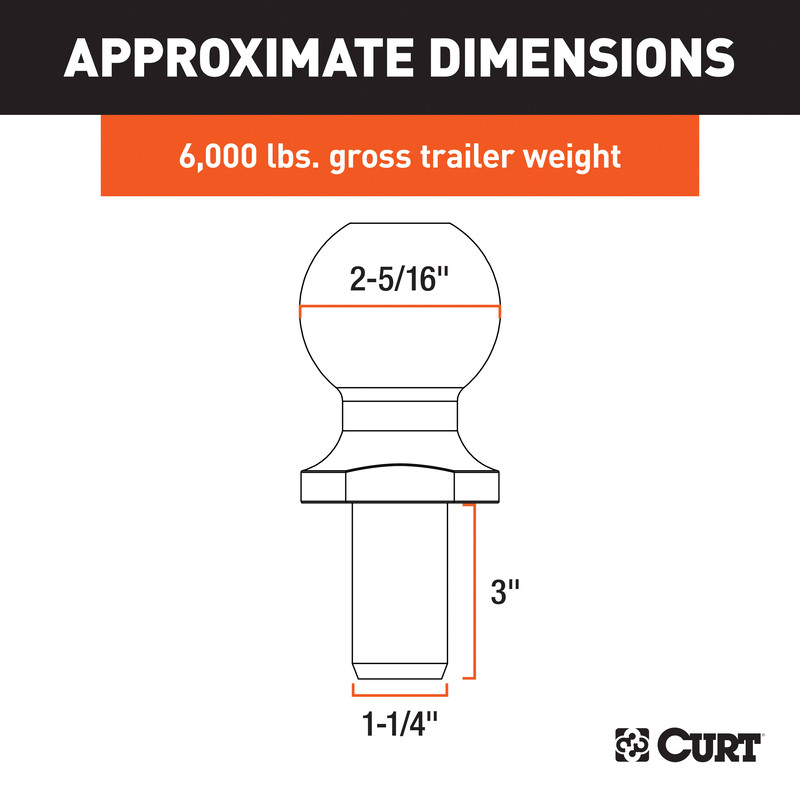

  • Shank Diameter
    1.25 in.
  • Shank Length
    3.0 in.
  • Tariff 301
    Yes
  • Warranty
    Limited Lifetime - One Year on Finish, One Year on Parts
  • Width - Box 1
    4.0 in.
