        2-5/16" Weld-On Gooseneck Ball

        Part Number:40094

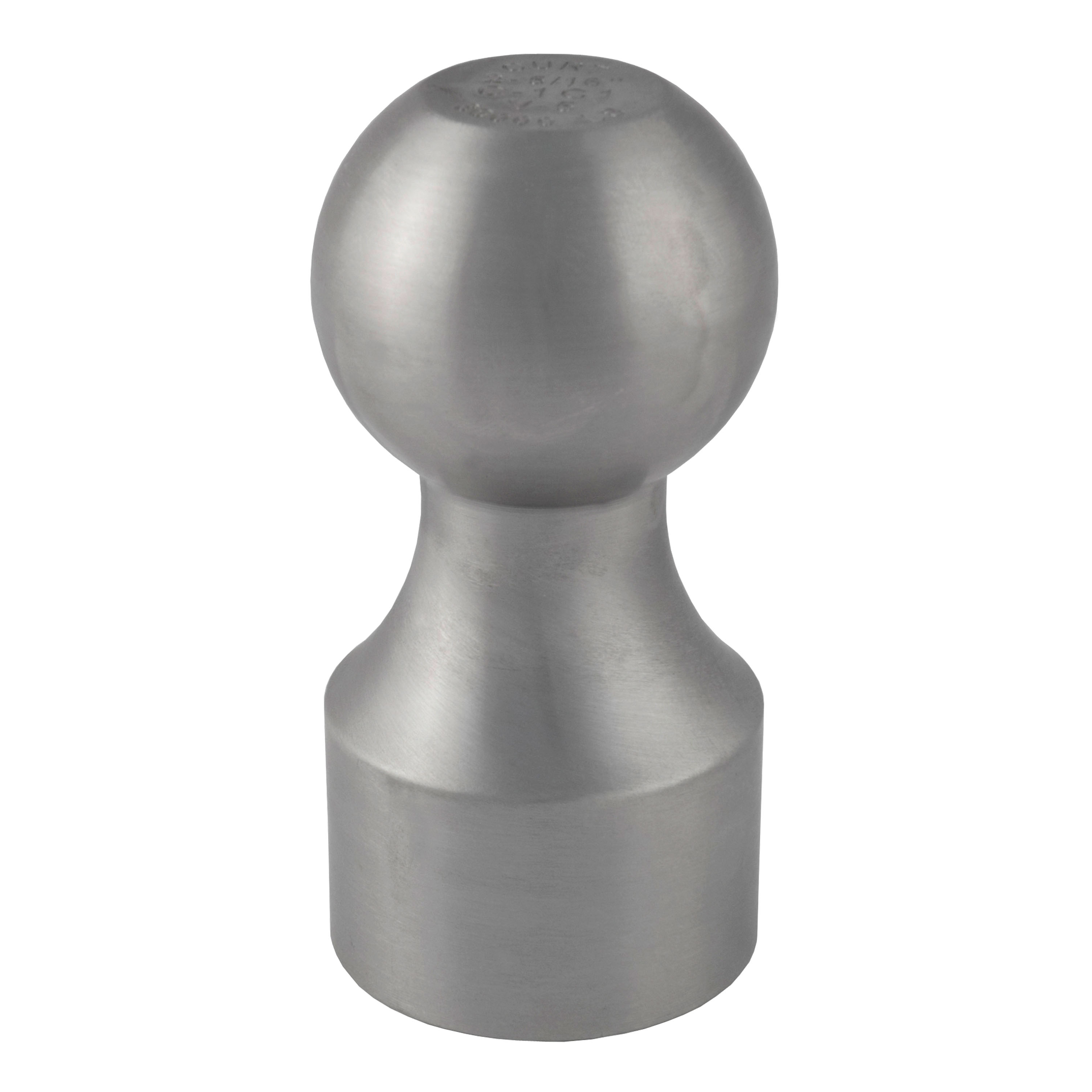

        The CURT weld-on gooseneck ball is perfect for hardworking trucks and gooseneck trailers. It features a ball diameter of 2-5/16" to fit any standard gooseneck trailer, and it is constructed with high-strength steel alloy. It is also heat-treated to optimize strength and durability to ensure dependable towing and long-lasting use. To allow this gooseneck trailer ball to be ready to weld onto a flat-plate gooseneck hitch, it comes with a raw steel finish. It is also tested to meet VESC V-5 specifications for safe towing.
        • Fits 2-5/16" gooseneck couplers and accepts up to 30,000 lbs. GTW
        • Constructed from high-strength, ready-to-weld SAE 51340 steel
        • Heat-treated for optimum strength and durability
        • Tested for safety to meet U.S. VESC V-5 specifications
        • Limited lifetime warranty (one-year finish, one-year parts)
        Retail price
        • $32.95
        Features
        • SKU
          40094
        • Brand
          CURT

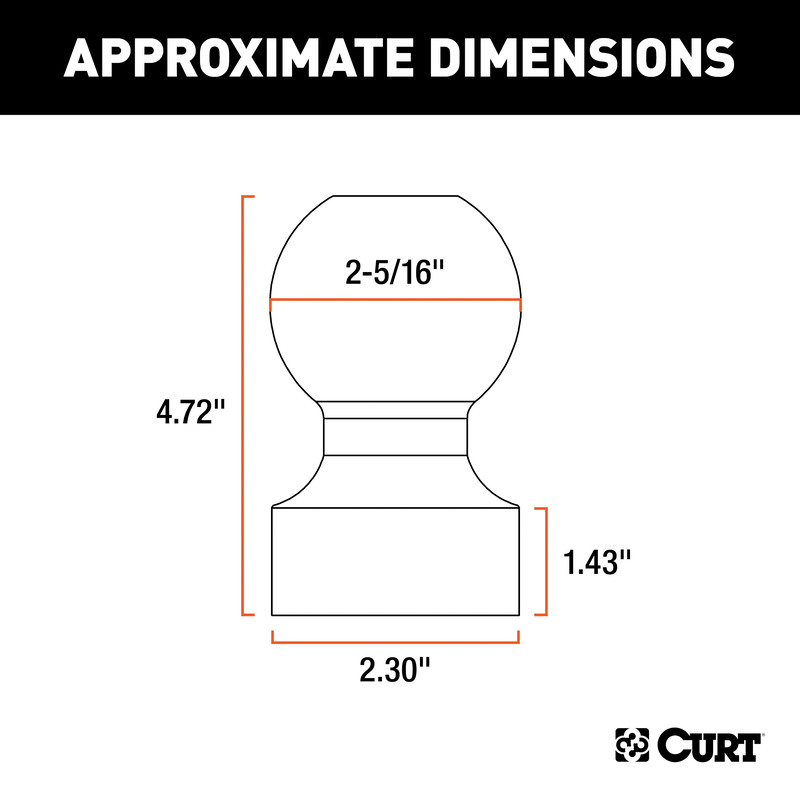

        • Ball Diameter
          2.313 in.
        • Class ID
          0
        • Container Cases Qty - XA
          630
        • Container Load Type - XA
          PALLETS
        • Container Pallet Qty - XA
          10
        • Container Type - XA
          20GP
        • Container Unit Qty - XA
          7560
        • Container Volume Cubic Feet - XA
          0.00000
        • Container Volume Cubic Meter - XA
          0.00000
        • Container Weight KG - XA
          0
        • Container Weight Lbs - XA
          38730
        • Finish
          Raw
        • Gross Trailer Weight
          30,000 lbs.
        • Height - Box 1
          4.0 in.
        • Item Class
          OBS
        • Item Height - XA
          0.000
        • Item Length - XA
          0.000
        • Item Width - XA
          0.000
        • Length - Box 1
          6.0 in.
        • Master Case Height Inches - XA
          6.700
        • Master Case ITF14
          0
        • Master Case ITF14 - XA
          20612314000948
        • Master Case Inner Pack Qty - XA
          0
        • Master Case Length Inches - XA
          9.840
        • Master Case Qty - XA
          12
        • Master Case Volume Cubic Feet - XA
          0.00000
        • Master Case Weight Lbs - XA
          61.000
        • Master Case Width Inches - XA
          7.870
        • Material - XA
          Blank
        • Mount Type Description - XA
          Blank
        • Pallet Case Per - XA
          63
        • Pallet Case Per Layer - XA
          21
        • Pallet Cases Per - XA
          63
        • Pallet Cases Per Layer - XA
          21
        • Pallet Layer of Cases - XA
          3
        • Pallet Qty - XA
          0.000
        • Pallet Total Height Inches - XA
          51.900
        • Pallet Total Weight Per - XA
          3873.000
        • Parcel Allowed
          Yes
        • Product Weight - XA
          0.000
        • Prop 65 Label Text - XA
          Blanks
        • Prop 65 Material - XA
          Unknown
        • Prop 65 Reason - XA
          Unknown
        • Prop 65 Warning Label Type - XA
          Unknown
        • Prop 65 Warning Y/N - XA
          NO
        • Retail Height - XA
          6.700
        • Retail Length - XA
          9.800
        • Retail Width - XA
          7.870
        • Sales Family Code - XA
          GOOSE
        • Sales Family Description - XA
          GOOSENECK
        • Sales Group Description - XA
          GOOSENECK PART
        • Shipping Weight - XA
          5.000
        • Side Application Type Description - XA
          Blank
        • Tariff 301
          Yes
        • Title
          2-5/16" Weld-On Gooseneck Ball
        • Truckload Cases Qty - XA
          819
        • Truckload Pallets Qty - XA
          13
        • Truckload Units Qty - XA
          9828
        • Truckload Volume Cubic Feet - XA
          0.00000
        • Truckload Weight - XA
          50349
        • Warranty
          Limited Lifetime - One Year on Finish, One Year on Parts
        • Width - Box 1
          6.0 in.
