Adjustable Multipurpose Ball Mount (2" Shank, 2" & 2-5/16" Balls)
CURT

Adjustable Multipurpose Ball Mount (2" Shank, 2" & 2-5/16" Balls)

Part Number:45049
If you own multiple trailers or frequently tow a variety of loads, you know how much time and money are spent tailoring your towing system to each and every individual trailer. There is nothing more inconvenient than switching back and forth between a few different ball mounts and trying to remember which mount fits with which trailer. A CURT adjustable ball mount is your multipurpose towing solution. This CURT adjustable ball mount has a shank size of 2" x 2" and features two different trailer ball sizes to accommodate two different coupler sizes: 2" and 2-5/16". The 2" trailer ball offers a gross trailer weight capacity of 7,500 lbs. and a tongue weight capacity of 750 lbs., while the 2-5/16" ball offers 10,000 lbs. GTW and 1,000 lbs. TW. This allows you to easily tow a variety of heavyweight trailers and to ensure that each one tows smoothly and securely. This special ball mount also features an adjustable shank assembly with multiple mounting holes for varying ball heights. Each trailer ball can be raised to a maximum of 6-11/16" rise or lowered to a maximum of 6-1/2" drop, allowing you to make your trailer completely level in any towing situation. It includes three 5/8" hitch pins for quick and secure installation, and comes equipped with a clevis bar to accept a lunette ring. Also, the adjustable shank can also be used with our tri-ball attachment #45800 and #45802 for even more versatility. All CURT adjustable ball mounts are made with sturdy steel construction and come with a durable powder coat finish for long-lasting rust, scratch and UV resistance.

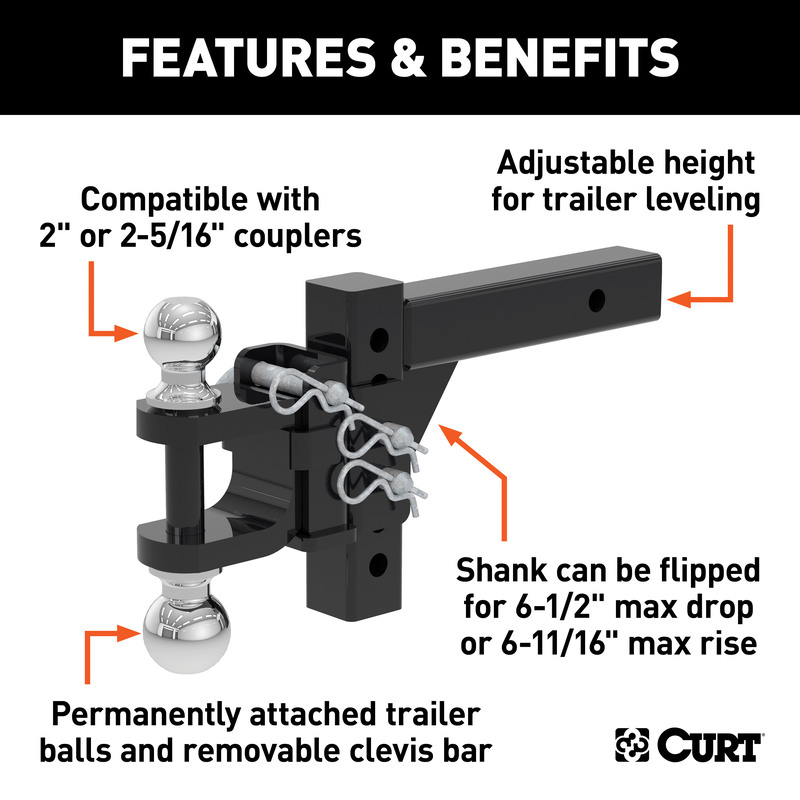

  • Adjustable height allows for precise trailer leveling

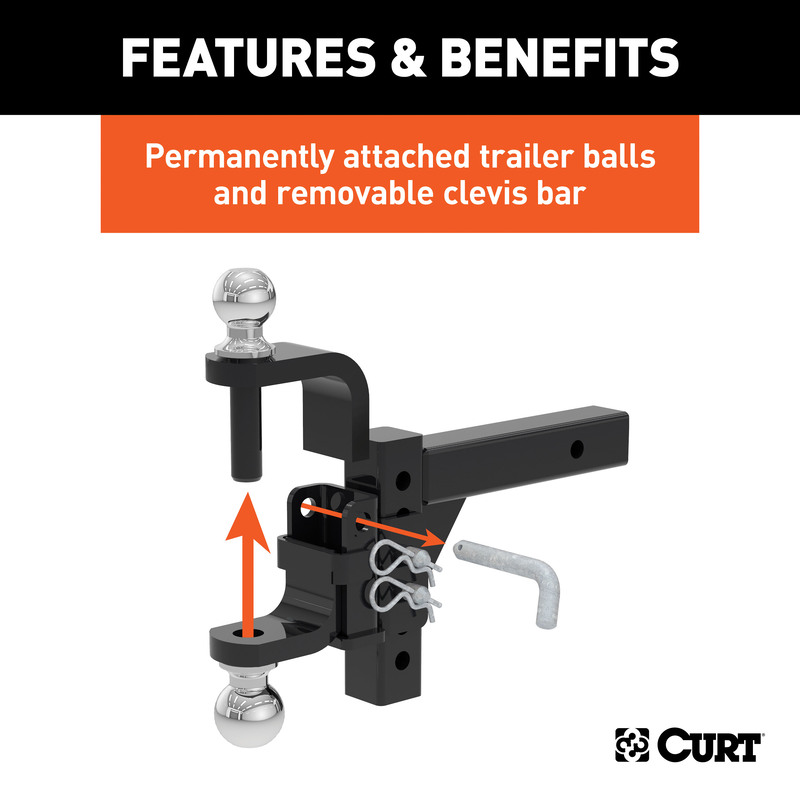

  • Features two welded trailer balls and a removable clevis bar

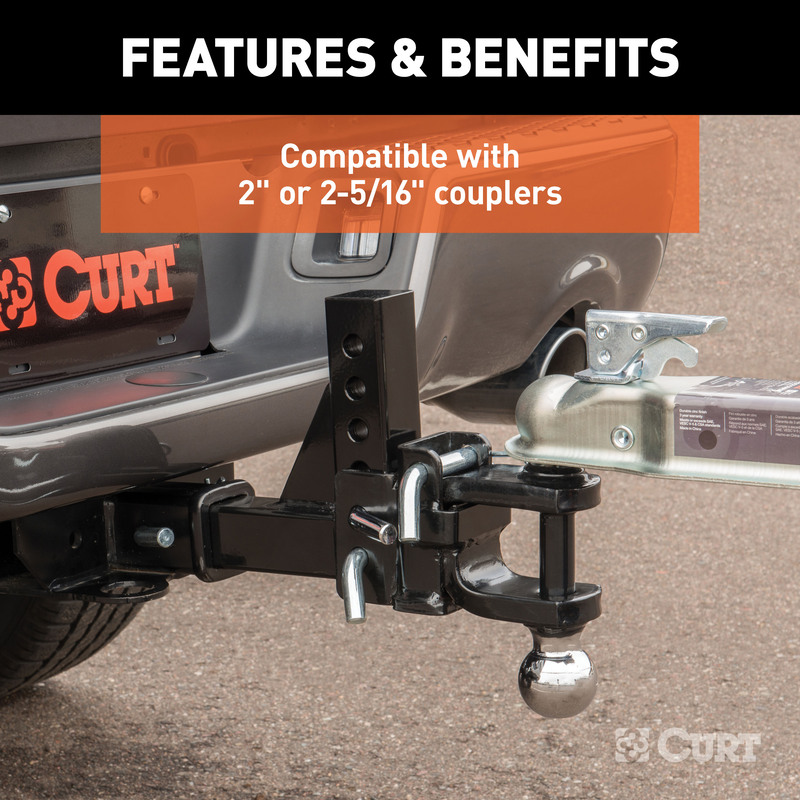

  • Fits 2" or 2-5/16" couplers
  • Limited lifetime warranty (one-year finish, one-year parts)
  • Mounts on trailer hitches with a 2" x 2" receiver tube opening
  • Permanently attached trailer balls cannot be loosened or stolen
  • Protected by a durable powder coat finish

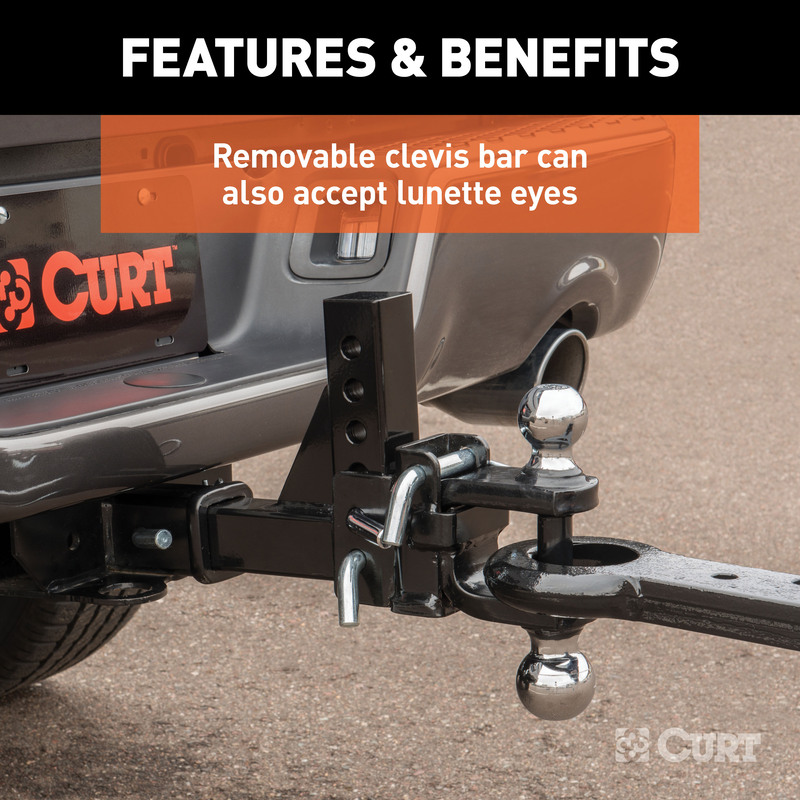

  • Removable clevis bar can also accept lunette eyes
  • Shank can be flipped for a 6-1/2" max drop or a 6-11/16" max rise
  • Trailer balls feature a polished chrome-plated finish
Retail price
  • $267.95
Features
  • SKU
    45049
  • Brand
    CURT
  • Ball 1 Capacity
    7,500 lbs.
  • Ball 1 Diameter
    2.0 in.
  • Ball 2 Capacity
    10,000 lbs.
  • Ball 2 Diameter
    2.313 in.
  • Ball Diameter
    2.0 in., 2.313 in.
  • Color
    Black
  • Finish
    Gloss Powder Coated
  • Freight Rate Class
    60.0
  • Gross Tongue Weight
    10,000 lbs.
  • Gross Towing Weight
    10,000 lbs.
  • Height
    5.91 in.
  • Item Class
    OBS
  • Max Drop
    6.5 in.
  • Parcel Allowed
    Yes
  • Receiver Tube Size
    2.0 in.
  • Tariff 301
    Yes
  • Tongue Weight
    1,000 lbs.
  • Warranty
    Limited Lifetime - One Year on Finish, One Year on Parts
