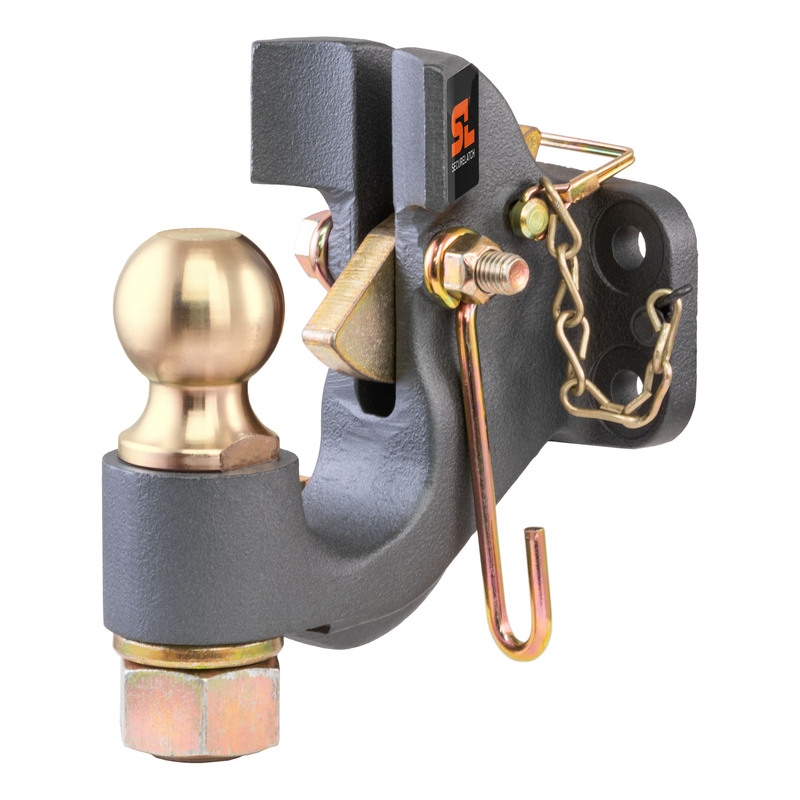

SecureLatch Ball & Pintle Hitch (2" Ball, 20,000 lbs.)
        CURT

        SecureLatch Ball & Pintle Hitch (2" Ball, 20,000 lbs.)

        Part Number:48411
        Enjoy automatic trailer coupling with the unique auto-locking mechanism of this SecureLatch pintle hitch. Just back up to the trailer tongue -- the integrated striker plate helps stop and center the lunette ring. Drop the ring onto the ball and hook, and the SecureLatch mechanism automatically engages the primary lock. Just insert the secondary safety pin and you're ready to tow. This unique pintle ball hitch also has a cupped design to hold the lunette eyelet more tightly and deter chucking noises. This ball and pintle combo is rated for 20,000 pounds gross trailer weight, 10,000 pounds ball capacity and is constructed from austempered cast iron for superior strength and wear resistance. It has a standard 2-inch ball and fits 2-1/2-inch or 3-inch lunette rings. NOTE: SecureLatch slotted pintle mount required for installation (pintle mount and bolts sold separately).

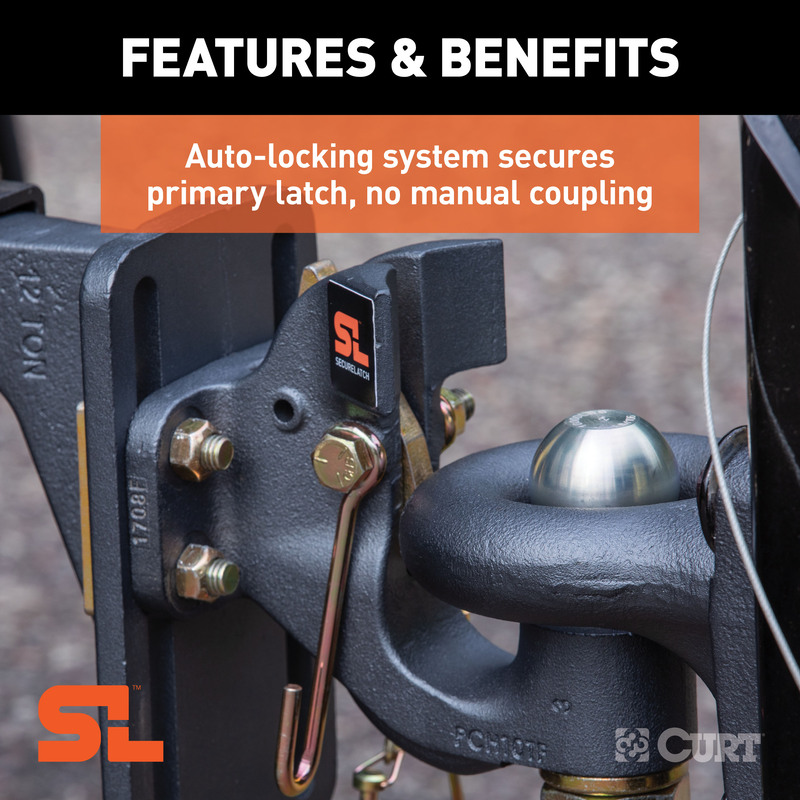

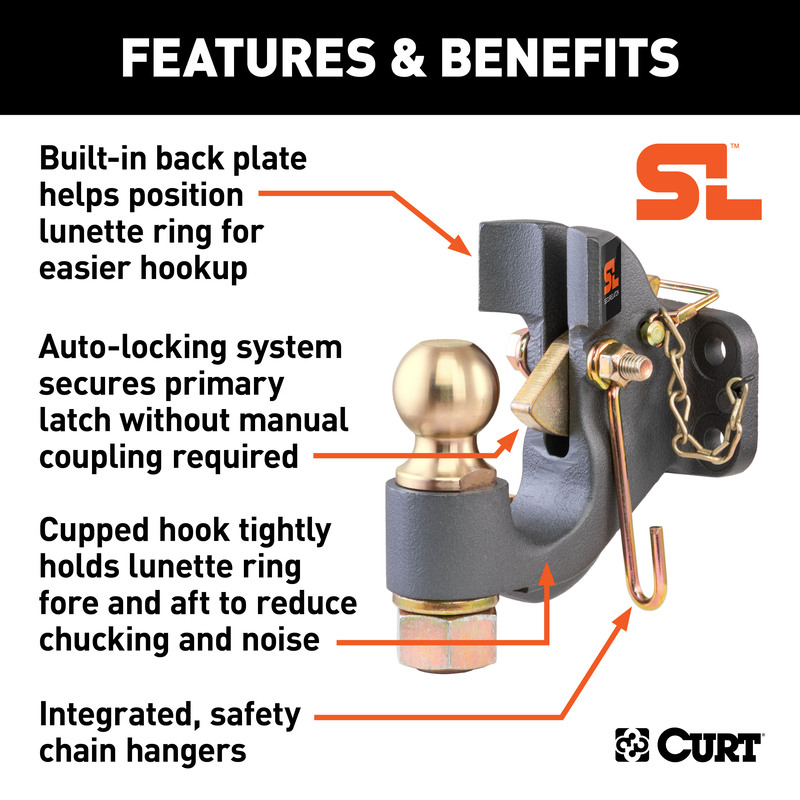

        • Auto-locking system secures primary latch without manual coupling required
        • Bright zinc-plated hardware for corrosion resistance (mount bolts not included)

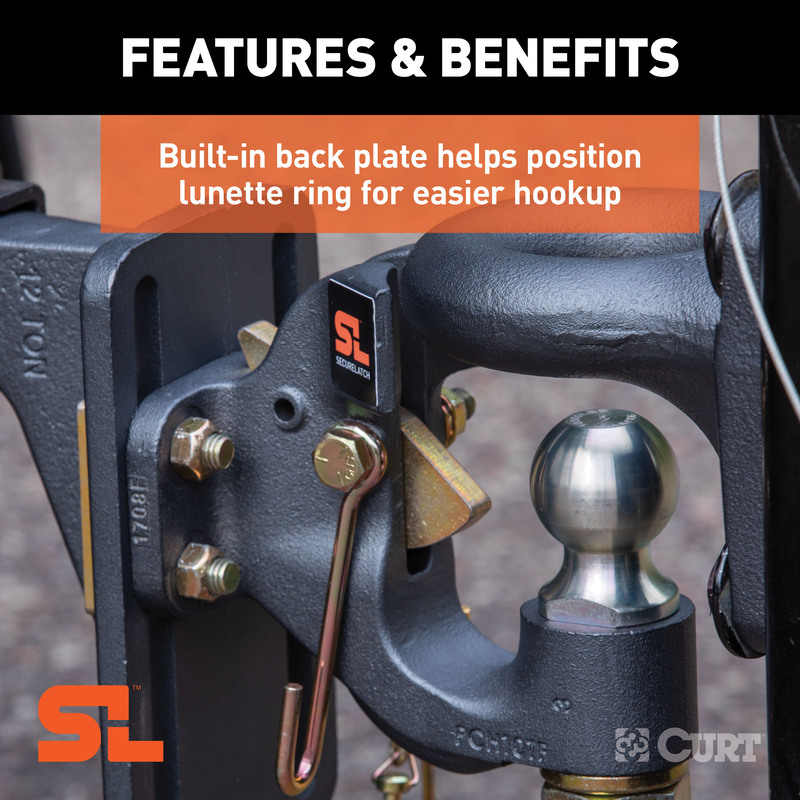

        • Built-in back plate helps position coupler or lunette ring for easier hookup
        • Cast iron construction is austempered for superior strength and wear resistance

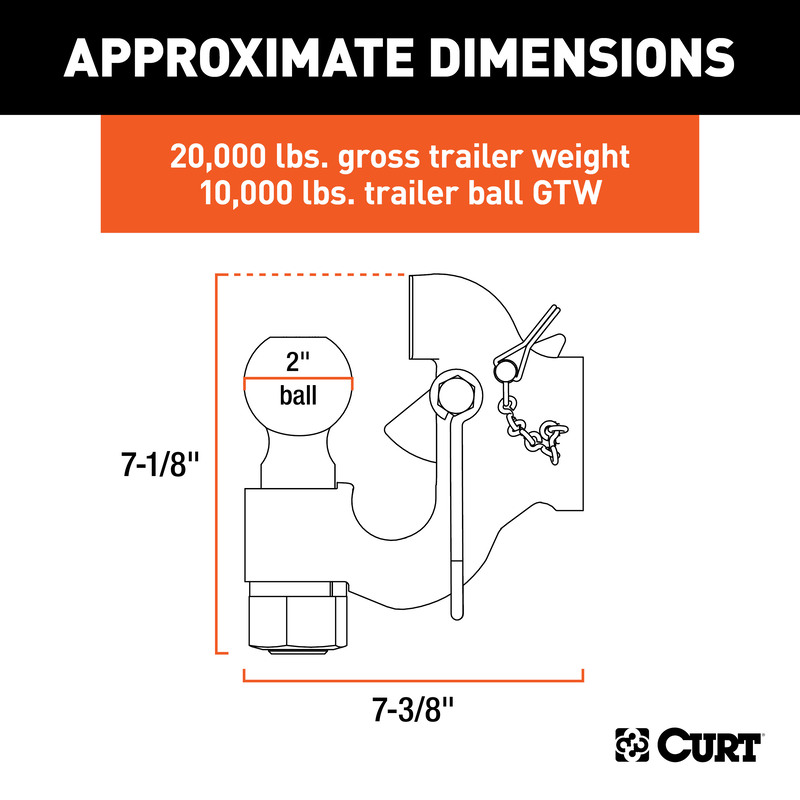

        • Couples to 2" couplers or lunette eyes with a 2-1/2" or 3" inside diameter

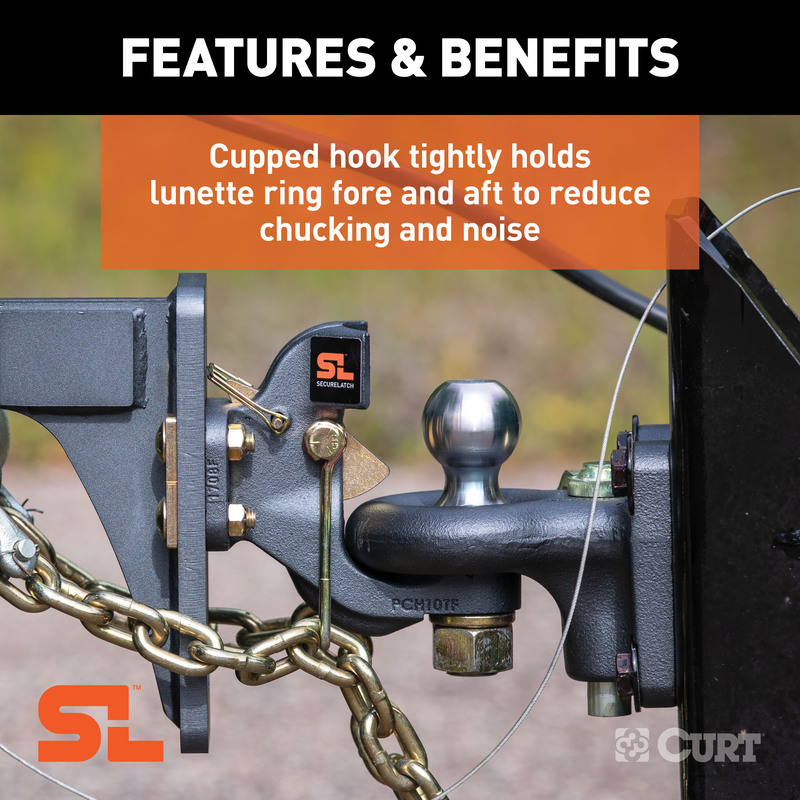

        • Cupped hook tightly holds lunette ring fore and aft to reduce chucking and noise
        • Fits SecureLatch pintle mounts with slotted plate (sold separately)

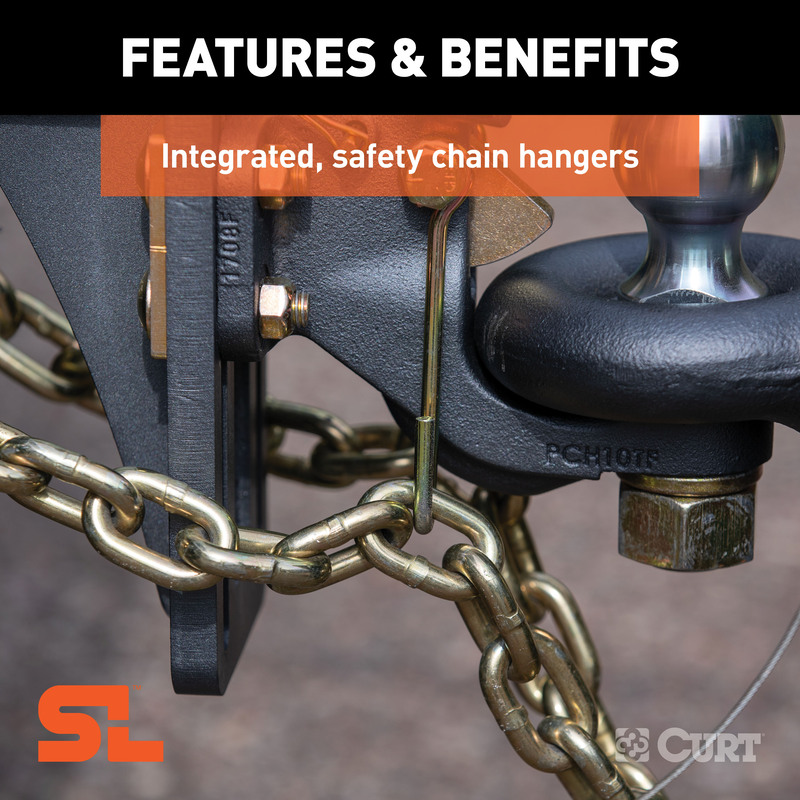

        • Integrated, intermediate safety chain hangers keep chains off the ground
        • Latch can be pinned in open position to clear standard trailer coupler
        • Limited lifetime warranty (one-year finish, one-year parts)
        • Quick, easy, one-tool height adjustments -- no disassembly required
        • Rated for 20,000 lbs. gross trailer weight and 10,000 lbs. ball capacity
        • Textured, dark grey teridium powder coat for a premium finish
        Retail price
        • $225.95
        Features
        • SKU
          48411
        • Brand
          CURT
        • Ball Capacity
          10,000 lbs.
        • Ball Diameter
          2.0 in.
        • Box Height in Inches - XA
          0
        • Box Length in Inches - XA
          0
        • Box Width in Inches - XA
          0
        • Color
          Dark Gray
        • Container Cases Qty - XA
          1680
        • Container Load Type - XA
          PALLETS
        • Container Pallet Qty - XA
          10
        • Container Type - XA
          20GP
        • Container Unit Qty - XA
          1680
        • Container Volume Cubic Feet - XA
          0.00000
        • Container Volume Cubic Meter - XA
          0.00000
        • Container Weight KG - XA
          0
        • Container Weight Lbs - XA
          29730
        • Finish
          Teridium Textured
        • Freight Rate Class
          60.0
        • Gross Trailer Weight
          20,000 lbs.
        • Height
          3.23 in.
        • Height
          8.37 in.
        • Item Class
          OBS
        • Length
          7.70 in.
        • Master Case Height Inches - XA
          9.840
        • Master Case ITF14
          0
        • Master Case ITF14 - XA
          0
        • Master Case Inner Pack Qty - XA
          0
        • Master Case Length Inches - XA
          10.530
        • Master Case Qty - XA
          1
        • Master Case Volume Cubic Feet - XA
          0.00000
        • Master Case Weight Lbs - XA
          17.500
        • Master Case Width Inches - XA
          6.690
        • Material
          Carbon Steel
        • Mount Type Description - XA
          Not Applicable
        • Pallet Case Per - XA
          168
        • Pallet Case Per Layer - XA
          24
        • Pallet Cases Per - XA
          168
        • Pallet Cases Per Layer - XA
          24
        • Pallet Layer of Cases - XA
          7
        • Pallet Qty - XA
          0.000
        • Pallet Total Height Inches - XA
          75.980
        • Pallet Total Weight Per - XA
          2973.000
        • Parcel Allowed
          Yes
        • Prop 65 Label Text - XA
          Blanks
        • Prop 65 Material - XA
          Unknown
        • Prop 65 Reason - XA
          Unknown
        • Prop 65 Warning Label Type - XA
          Unknown
        • Prop 65 Warning Y/N - XA
          NO
        • Sales Family Code - XA
          ACCES
        • Sales Family Description - XA
          ACCESSORIES
        • Sales Group Description - XA
          PINTLE MOUNT
        • Shipping Weight - XA
          15.500
        • Side Application Type Description - XA
          Not Applicable
        • Tariff 301
          Yes
        • Truckload Cases Qty - XA
          0
        • Truckload Pallets Qty - XA
          0
        • Truckload Units Qty - XA
          0
        • Truckload Volume Cubic Feet - XA
          0.00000
        • Truckload Weight - XA
          0
        • Warranty
          Limited Lifetime - One Year on Finish, One Year on Parts
        • Width
          3.23 in.
