SecureLatch Lunette Ring & Channel (40,000 lbs, 3" ID, 11-3/4" Channel Height)
CURT

SecureLatch Lunette Ring & Channel (40,000 lbs, 3" ID, 11-3/4" Channel Height)

Part Number:48641
The CURT SecureLatch adjustable lunette ring and channel set offers enhanced security and maximum versatility. Its integrated locking pin helps prevent coupling and theft when your trailer is left unattended, featuring holes in the bottom to accept a padlock. The pin can also be turned 90 degrees to allow you to hitch up your trailer. This lunette ring also offers flexible height adjustment. It can be moved up or down for more drop or rise as needed. The CURT SecureLatch lunette ring comes with an 11-3/4-inch tall x 2-3/4-inch inside width channel. It has a 3-hole bolt pattern. The lunette ring itself has a 3-inch inside diameter to couple to a pintle hook or ball and pintle combination, and it is rated for up to 40,000 pounds gross trailer weight. This SecureLatch lunette eyelet is made from austempered iron for superior strength and wear resistance, and it features a durable, dark grey teridium powder coat finish for resistance to the elements.

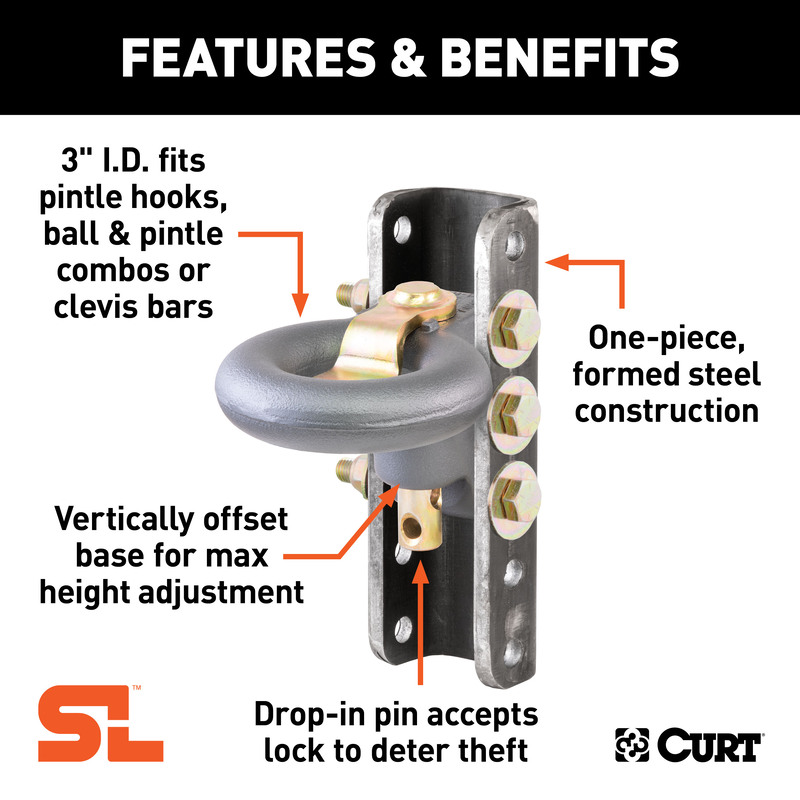

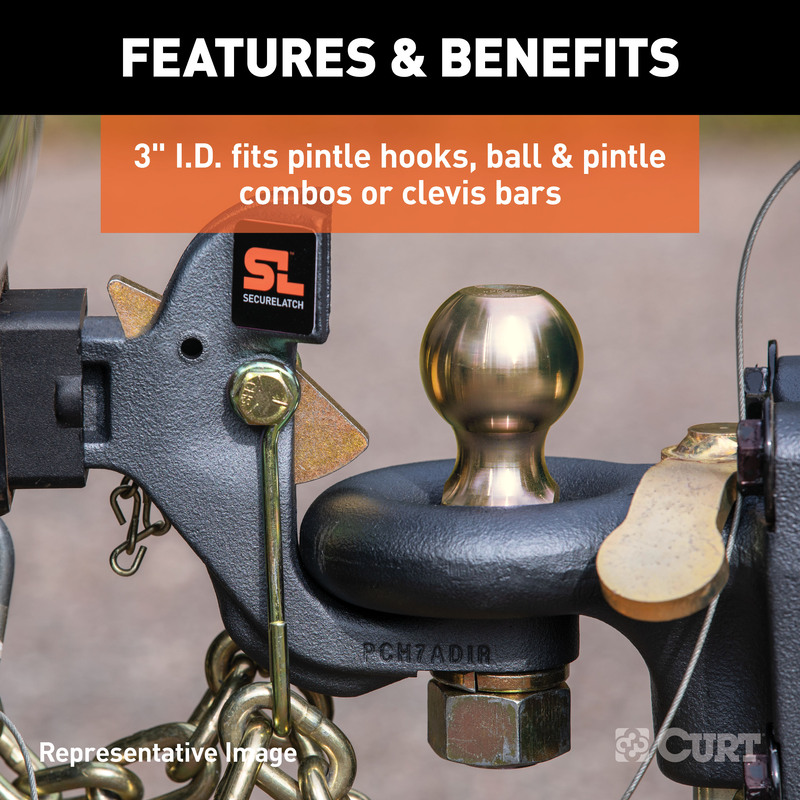

  • 3" inside diameter fits pintle hooks, ball & pintle combinations or clevis bars
  • Bright gold zinc-plated pin for long-lasting corrosion resistance
  • Cast iron construction is austempered for superior strength and wear resistance

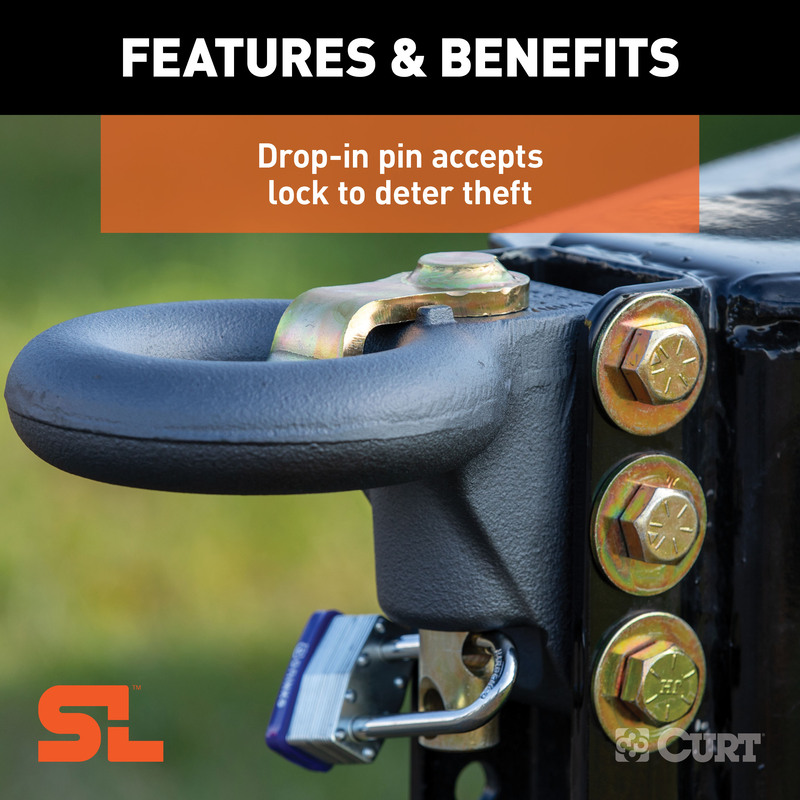

  • Drop-in pin accepts lock to deter theft (turns 90 degrees while coupled)
  • Flexible height adjustment for more drop or rise as needed

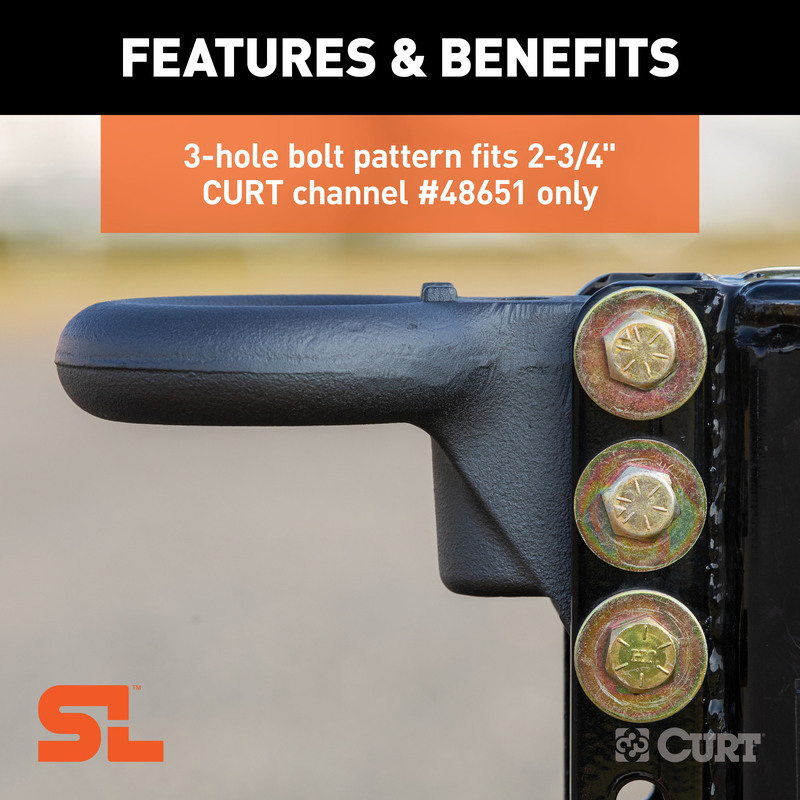

  • Heavy-duty 3-hole bolt pattern with 11-3/4" x 2-3/4" channel
  • Limited lifetime warranty (one-year finish, one-year parts)
  • Rated for 40,000 lbs. gross trailer weight

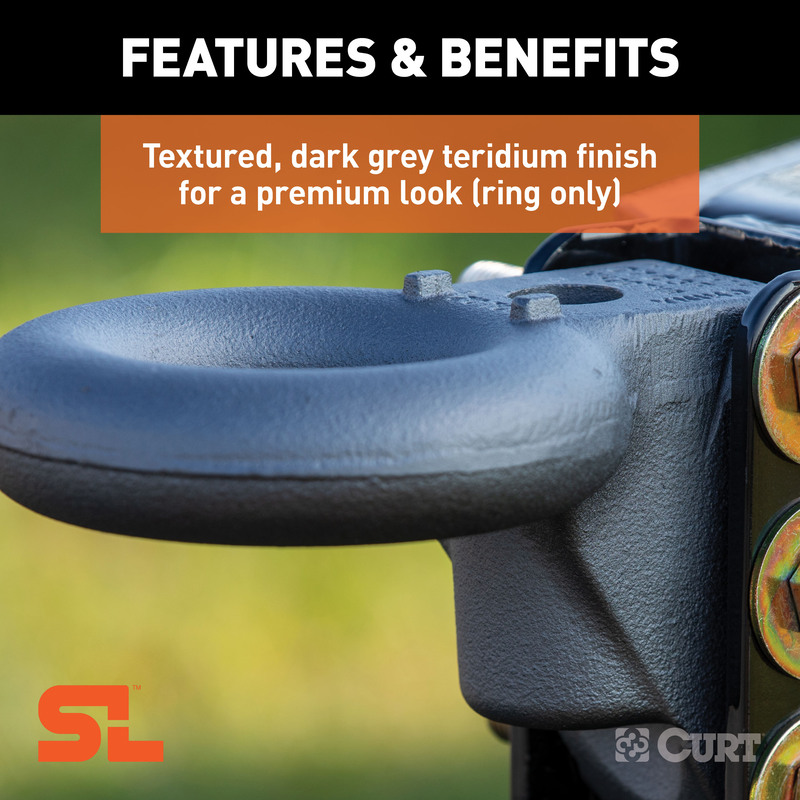

  • Textured, dark grey teridium powder coat for a premium finish
Retail price
  • $284.95
Features
  • SKU
    48641
  • Brand
    CURT
  • Color
    Dark Gray
  • Finish
    Teridium Textured
  • Freight Rate Class
    60.0
  • Gross Trailer Weight
    40,000 lbs.
  • Height
    11.75 in.
  • Item Class
    OBS
  • Length
    9.38 in.
  • Material
    Carbon Steel
  • Parcel Allowed
    Yes
  • Tariff 301
    Yes
  • Warranty
    Limited Lifetime - One Year on Finish, One Year on Parts
  • Width
    6.0 in.
