Injen Technology SuperNano-Web Air Filter
Injen

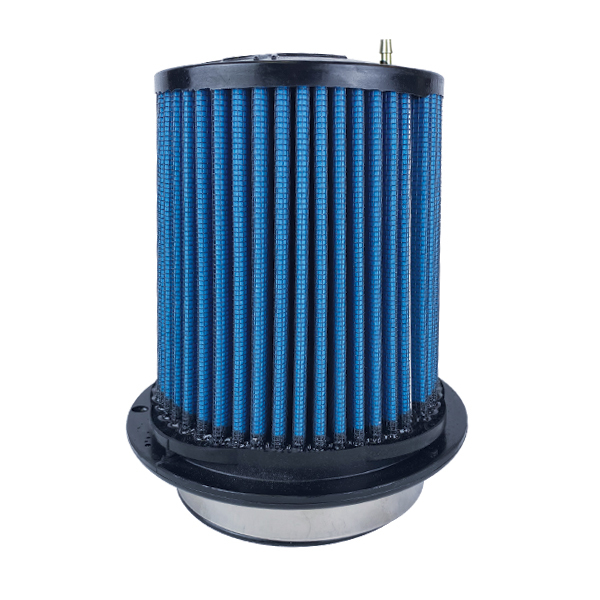

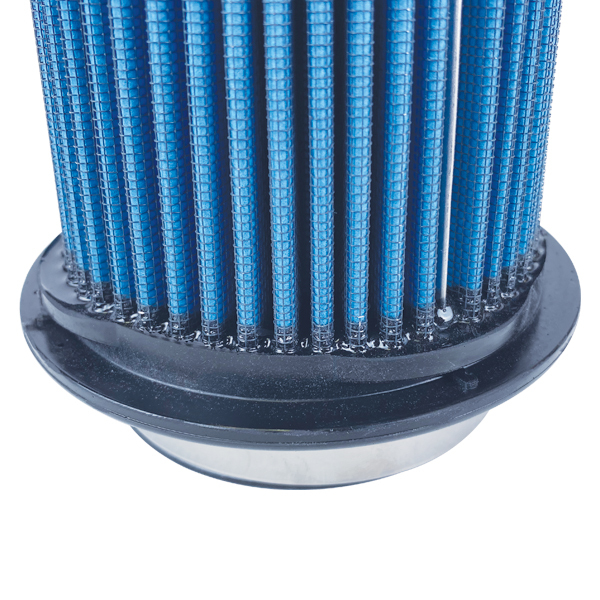

Injen Technology SuperNano-Web Air Filter

Part Number:X-1086-BB
With a rich history in racing and the street performance, Injen Technology has proven itself as a leader in filtration engineering and technology. Lab tested and race proven, Injen's air filter line features state of the art designs and performance. All SuperNano-Web air filters feature a proprietary media that includes and high-flow base media with a highly efficient Nano membrane applied on top. This allows our SuperNano-Web media to flow the maximum amount of air, all while protecting your valuable engine from harmful dirt and debris. 100% cleanable with a light blast of compressed air and requiring no oil to function properly, you'll never have to worry about your MAF sensor becoming dirty from over oiling your air filter again; Lab Tested ? Race Proven!, Our media was lab tested by an outside lab to ensure accuracy and filtration performance. We then took that data and tested in the harshest conditions by racing the Baja 1000 in Mexico and also throughout the sand dunes of the Middle East ? all to provide you with best air filter that money can buy. Improve Performance while Protecting Your Engine., Injen's High-flow SuperNano-Web media was designed to improve airflow and filtration efficiency resulting in increased horsepower and torque, all while protecting your engine from harmful dirt and contaminants.
  • Direct Fit for many Injen intakes and/or universal applications
  • Twist Lock base for use on select Evolution intake systems
  • Fully serviceable Injen SuperNano-Web dry air filter
  • Includes molded-in vacuum nipple
  • Dry filtration media; no oil required for maximum performance
  • Conical Air Filter Shape
  • Flange Inside Dimensions 3.50"
  • Flange Height 1.00"
  • Base Outside Diameter 5.50" Twist Lock
  • Media Height 5.15"
  • Overall Height 6.50"+/-.150"
  • Top Outside Dimensions 4.0"
  • Top Style; Closed Top
  • Stainless steel band clamp with inner protective liner
  • Deep pleats for maximum airflow and efficiency
Retail price
  • $89.95
Features
  • SKU
    X-1086-BB
  • Brand
    Injen
  • Base Outside Diameter
    5.5 in.
  • Filter Material
    SuperNano-Web Dry
  • Filter Shape
    Round Conical
  • Filter Type
    Dry
  • Filter Washable
    No
  • Flange Length
    1.0 in.
  • Grade Type
    Performance
  • Includes Gasket/Seal
    No
  • Includes Insert on Filter Top
    No
  • Includes Neck Flange
    Yes
  • Marine Approved
    No
  • Media Height
    0.625 in.
  • Media Height
    5.150 in.
  • Overall Filter Height
    6.5 in.
  • Pleat Count
    47
  • Prop 65 - Required to list in California with Warning
    Yes
  • Prop 65 - Type
    Cancer and Reproductive
  • Prop 65 - Warning Image Label
  • Reusable
    Yes
  • Top Material
    Rubber
  • Top Outside Diameter
    4.0 in.
  • Top Style
    Closed
  • Twist Lock Base
    Yes
  • Vacuum Nipple
    Yes
