Bilstein Shock Absorbers
Bilstein

Bilstein Shock Absorbers

Part Number:24-214667
Discontinued

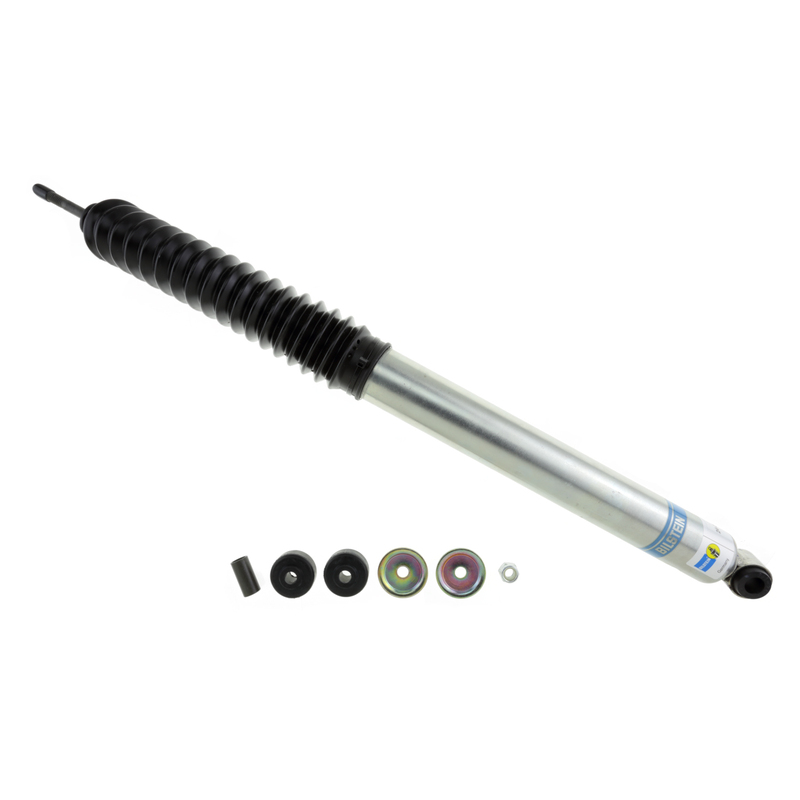

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.
  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Patented digressive valving instantly reacts to changing surface conditions
  • Vehicle specific tuning
Retail price
  • $120.47
Features
  • SKU
    24-214667
  • Brand
    Bilstein
  • Body Design
    Smooth Body
  • Coilover Type
    Non-Coilover
  • Collapsed Length
    16.14 in.
  • Collapsed Length
    410.0 mm
  • Compression at 0.52 m/s
    940.0 N
  • Extended Length
    25.98 in.
  • Extended Length
    659.9 mm
  • Feature Note
    Reservoir Not Included
  • Finish
    Zinc Plated
  • Includes Boot
    Black Bellows
  • Includes Spring Seat
    No
  • Internal Design
    Monotube
  • Lower Mount Type
    Eye 15.875 mm
  • Mount Type - Upper
    Stem
  • Rebound @0.52m/s
    1780
  • Series
    B8 5125
