        Bilstein Shock Absorbers

        Part Number:24-225434

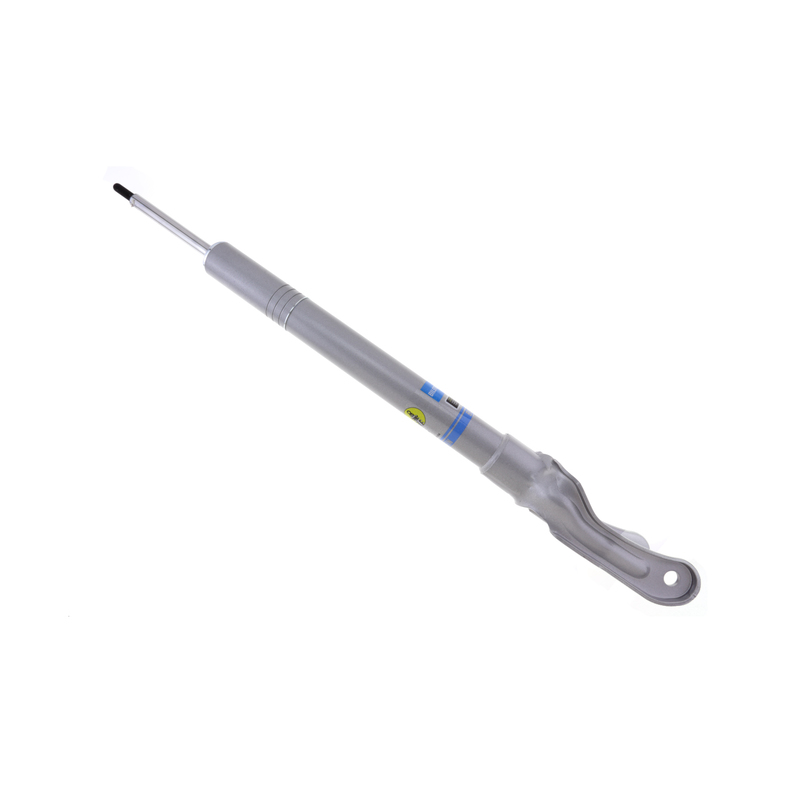

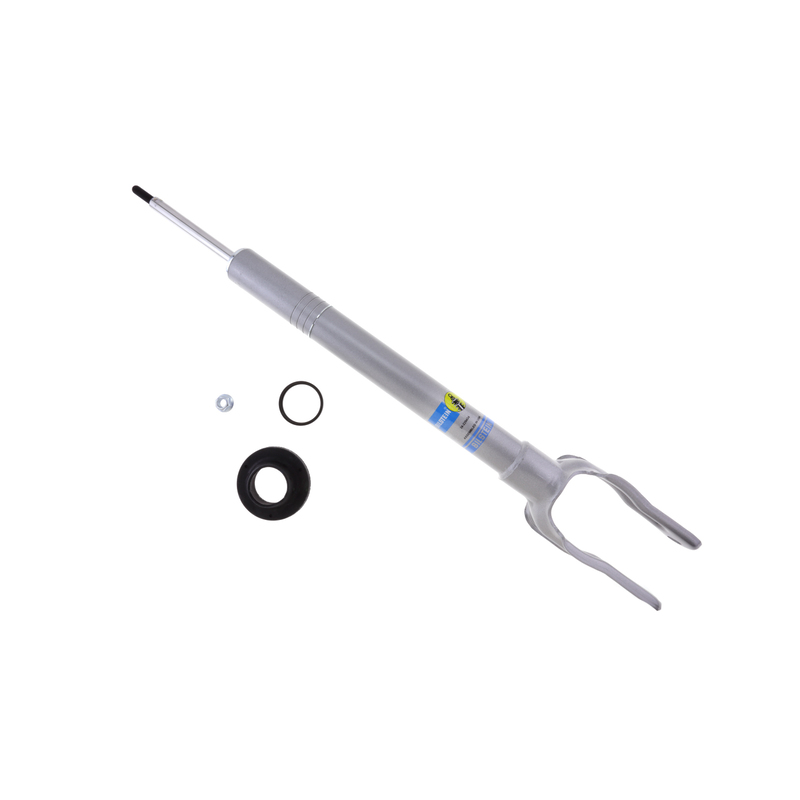

        Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
        • 46mm monotube design ensures consistent, fade-free performance in all conditions
        • Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
        • Adjustable spring seat offers 0-2.75in of lift, depending on the application
        Retail price
        • $229.60
        Features
        • SKU
          24-225434
        • Brand
          Bilstein
        • Adjustable Damping
          No
        • Body Design
          Snap Ring Grooved Body
        • Body Inside Diameter
          46.0 mm
        • Coilover Type
          Coilover
        • Collapsed Length
          26.28 in.
        • Collapsed Length
          667.6 mm
        • Color
          Silver
        • Extended Length
          32.09 in.
        • Extended Length
          815.0 mm
        • Feature Note
          Reservoir Not Included
        • Finish
          Painted
        • Includes Boot
          No

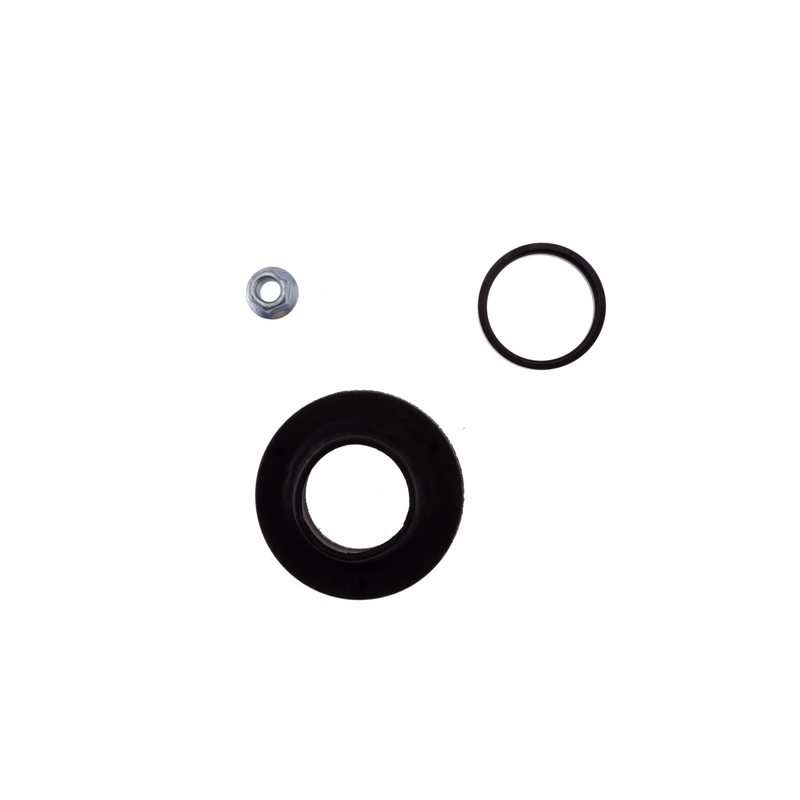

        • Includes Spring Seat
          Yes
        • Internal Design
          Monotube
        • Lower Mount Type
          Clevis
        • Mount Type - Upper
          Stem
        • PartType
          Shocks / Struts
        • Prop 65 (Y/N)
          Y
        • Prop 65 - Short Label
          WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
        • Segment
          Light Truck
        • Series
          B8 5100 (Ride Height Adjustable)
        • Spring Max Travel (IN)
          5.80
        • Title
          Bilstein Shock Absorbers
