Bilstein Shock Absorbers
Bilstein

Bilstein Shock Absorbers

Part Number:24-249928

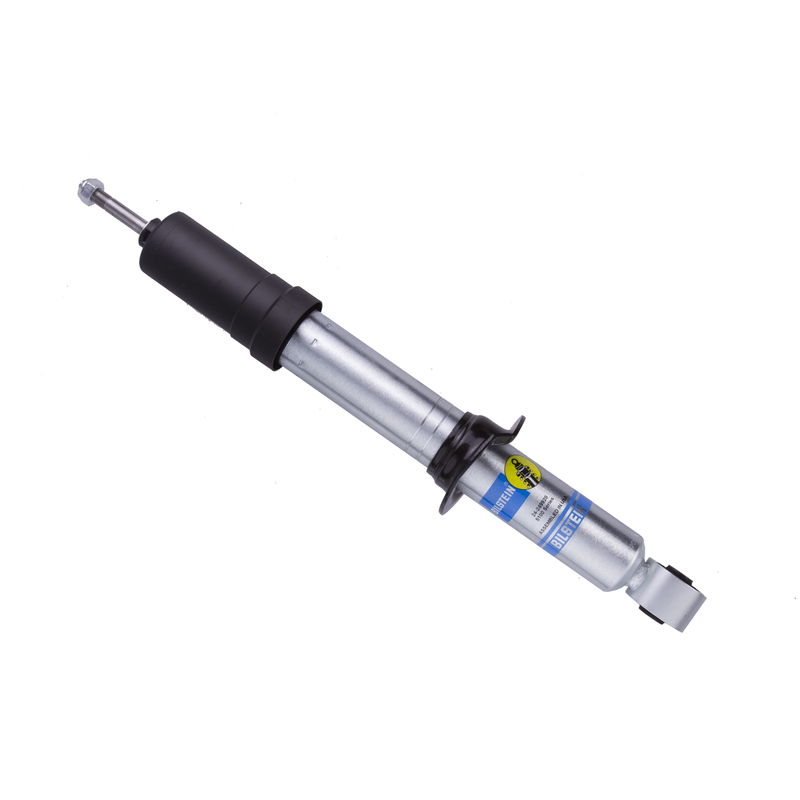

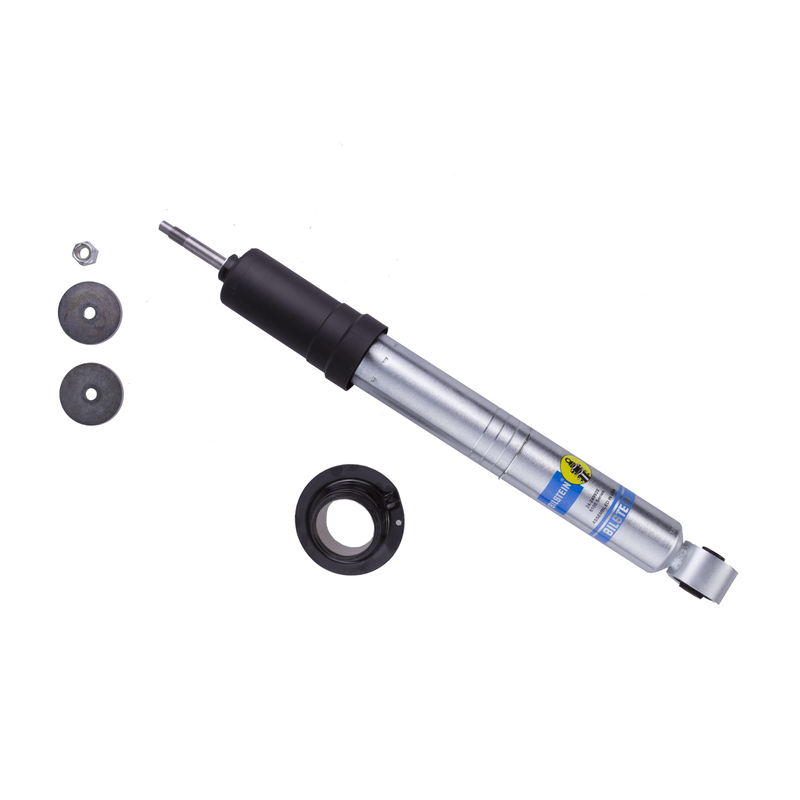

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
  • Adjustable spring seat offers 0-2.75in of lift, depending on the application
Retail price
  • $223.60
Features
  • SKU
    24-249928
  • Brand
    Bilstein
  • Adjustable Damping
    No
  • Body Design
    Snap Ring Grooved Body
  • Body Inside Diameter
    46.0 mm
  • Coilover Type
    Coilover
  • Collapsed Length
    13.86 in.
  • Collapsed Length
    352.0 mm
  • Extended Length
    18.66 in.
  • Extended Length
    474.0 mm
  • Feature Note
    Reservoir Not Included
  • Finish
    Zinc Plated
  • Includes Boot
    Black Straight
  • Includes Spring Seat
    Yes
  • Internal Design
    Monotube
  • Lower Mount Type
    Eye 14.2 mm
  • Mount Type - Upper
    Stem
  • Series
    B8 5100 (Ride Height Adjustable)
