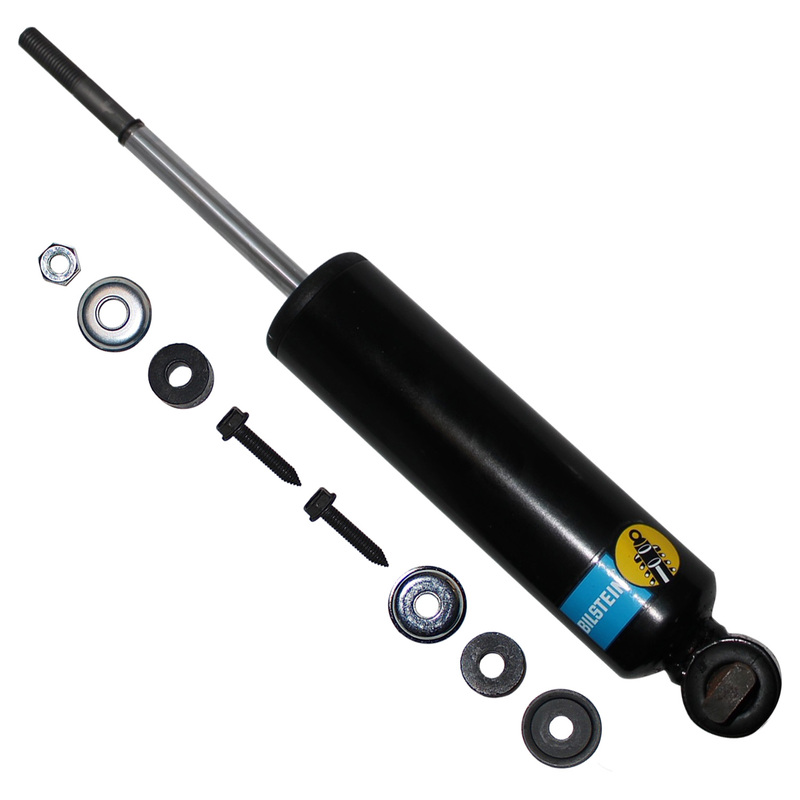

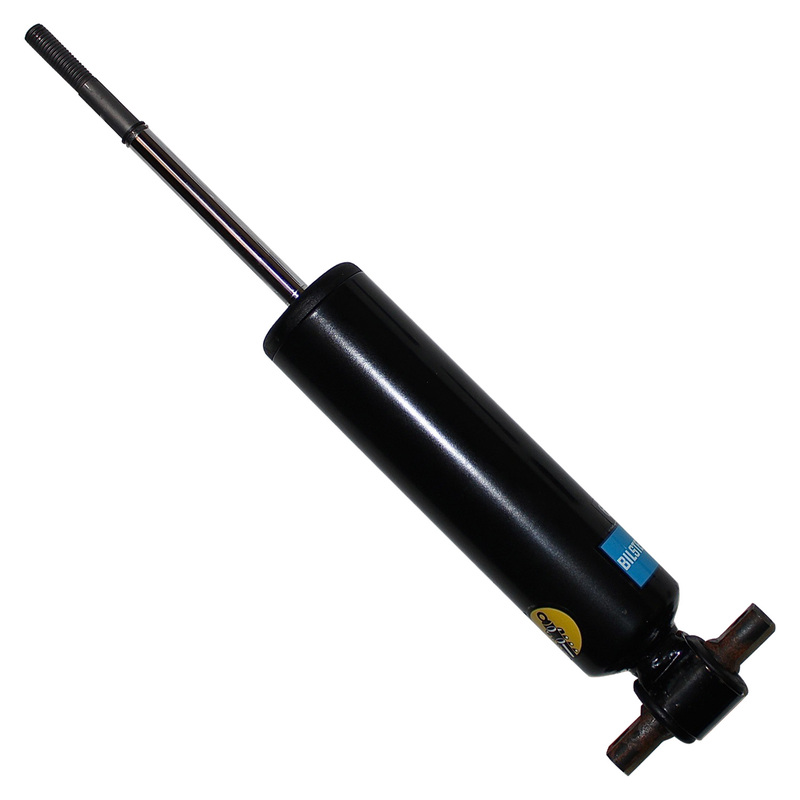

Bilstein Shock Absorbers
        Bilstein

        Bilstein Shock Absorbers

        Part Number:24-296861
        Bilstein SMX Series shock absorbers are specifically designed for motorsports applications that mandate the use of stock mount (OE) suspension components. Designed using 46mm monotube technology, the shocks are available in a variety of damping options including dry kit designed specifically to provide the best options for a variety of race track types and conditions. Built in the USA with precision components and top quality controls, the SMX Series shocks deliver Bilstein’s famous fade-free performance and consistency in a factory-mount package that championship winning racers demand.
        • Stock mount design for GM metric chassis applications
        • 46mm piston design for maximum damping control
        • A wide range of valving choices available for endless tuning combinations
        Retail price
        • $179.15
        Features
        • SKU
          24-296861
        • Brand
          Bilstein
        • Adjustable Damping
          No
        • Body Design
          Smooth Body
        • Body Inside Diameter
          46.0 mm
        • Body Material
          Steel
        • Collapsed Length
          210.0 mm
        • Collapsed Length
          8.27 in.
        • Color
          Black
        • Compression @ 10"/sec
          325
        • Extended Length
          12.01 in.
        • Extended Length
          305.0 mm
        • Finish
          Painted
        • Includes Boot
          No
        • Includes Spring Seat
          No
        • Internal Design
          Monotube
        • Lower Mount Type
          Barpin
        • Mount Type
          Stock Mount
        • Mount Type - Upper
          Stem
        • PartType
          Shocks / Struts
        • Piston Type
          Linear
        • Prop 65 (Y/N)
          Y
        • Prop 65 - Short Label
          WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
        • Rebound @ 10"/sec
          175
        • Segment
          Motorsports
        • Series
          SMX Series
        • Spring Hardware
          N/A
        • Spring Max Travel (IN)
          3.74
        • Title
          Bilstein Shock Absorbers
