Bilstein Shock Absorbers
Bilstein

Bilstein Shock Absorbers

Part Number:25-187762

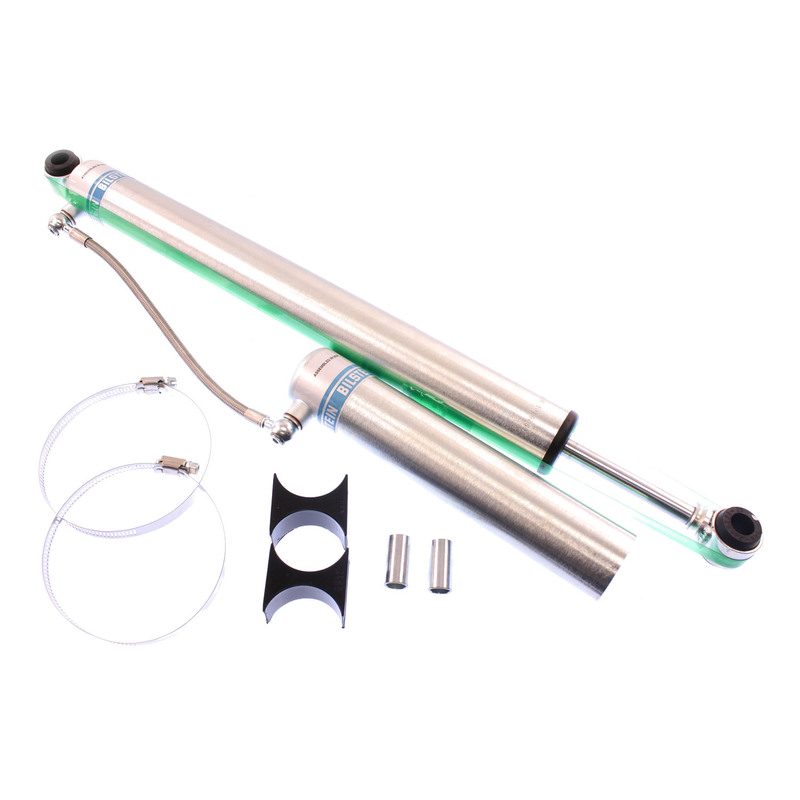

Bilstein B8 5165 Classic remote reservoir shock absorbers are designed to be used on custom off-road vehicles in order to achieve the desired ride of your light truck or SUV. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom applications. All B8 5165 Classic shock absorbers come equipped with 5/8 inch eyelets with hour glass bushings on both ends. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting, providing a clean, low profile installation. B8 5165 Classic cremote reservoir shock absorbers will increase overall durability of your custom vehicle allowing you to conquer the harshest of off-road environments.
  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
  • Remote reservoir increases shock oil capacity for greater heat dissipation
Retail price
  • $237.00
Features
  • SKU
    25-187762
  • Brand
    Bilstein
  • Adjustable Damping
    No
  • Body Design
    Smooth Body
  • Body Inside Diameter
    46.0 mm
  • Coilover Type
    Non-Coilover
  • Collapsed Length
    20.65 in.
  • Collapsed Length
    21.0 in.
  • Collapsed Length
    524.5 mm
  • Compression at 0.52 m/s
    700.0 N
  • Extended Length
    34.76 in.
  • Extended Length
    35.0 in.
  • Extended Length
    883.0 mm
  • Finish
    Zinc Plated
  • Includes Boot
    No
  • Includes Reservoir
    Yes
  • Includes Spring Seat
    No
  • Internal Design
    Monotube
  • Lower Mount Type
    Eye 15.875 mm
  • Mount End Type
    Eye-To-Eye
  • Rebound @0.52m/s
    2550
  • Recommended Additional Part

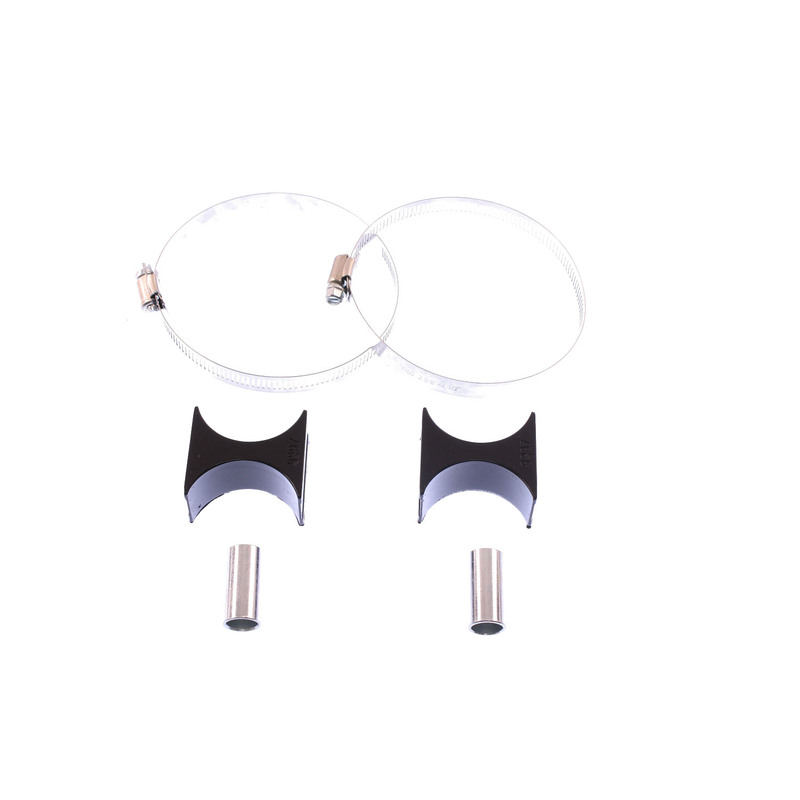

    Reservoir Clamp: 11-176015
  • Series
    B8 5165
  • Upper Mount Type
    Eye 15.875 mm
