Bilstein Shock Absorbers
Bilstein

Bilstein Shock Absorbers

Part Number:25-287837
Discontinued

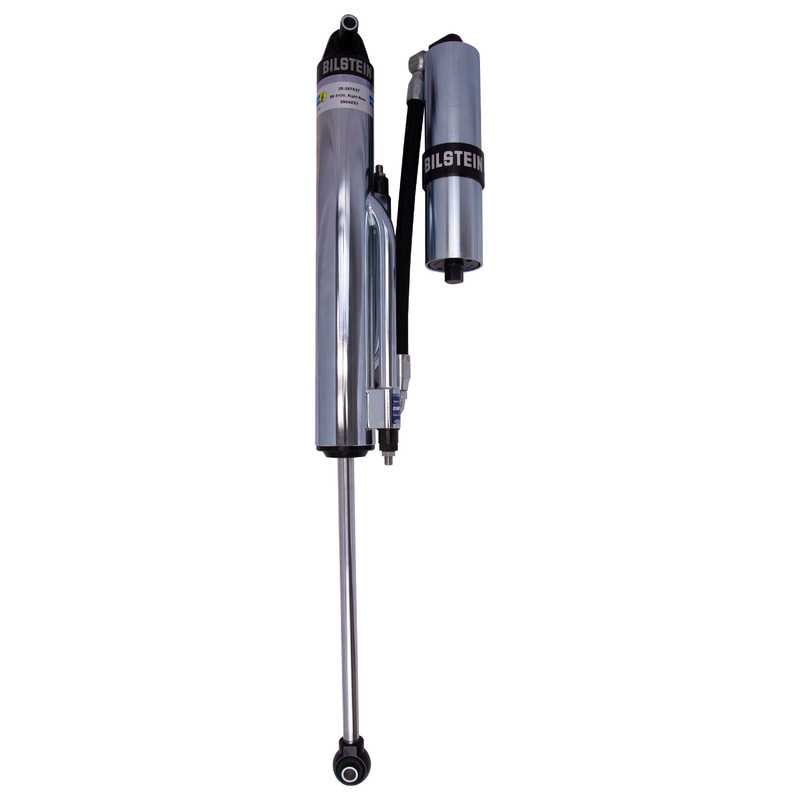

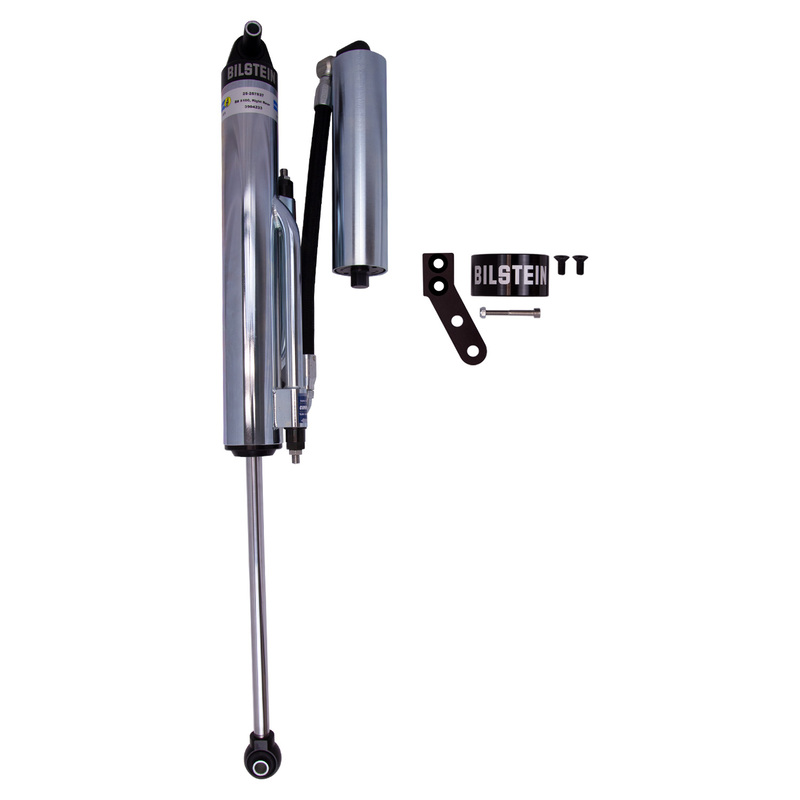

Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.
  • Dual tube external bypass offers position sensitive damping with independent adjustment for rebound and compression
  • Incremental flow adjuster offers finite and incremental changes in damping force for precise adjustments
  • 60mm large bore hard anodized aluminum piston offers a greater range of damping control and delivers exceptional long-term durability
Retail price
  • $1,189.90
Features
  • SKU
    25-287837
  • Brand
    Bilstein
  • Adjustable Damping
    Yes
  • Body Design
    Bypass Body
  • Body Inside Diameter
    60.0 mm
  • Coilover Type
    Non-Coilover
  • Collapsed Length
    19.49 in.
  • Collapsed Length
    495.0 mm
  • Damping Type
    Double Adjustable - Compression and Rebound
  • Extended Length
    32.01 in.
  • Extended Length
    813.0 mm
  • Finish
    Zinc Plated
  • Includes Boot
    No
  • Includes Reservoir
    Yes
  • Includes Spring Seat
    No
  • Internal Design
    Monotube
  • Lower Mount Type
    Eye 12.8 mm
  • Series
    B8 8100 (Bypass)
  • Upper Mount Type
    Eye 12.8 mm
