Bilstein

Bilstein Shock Absorbers

Part Number:33-221793
Discontinued

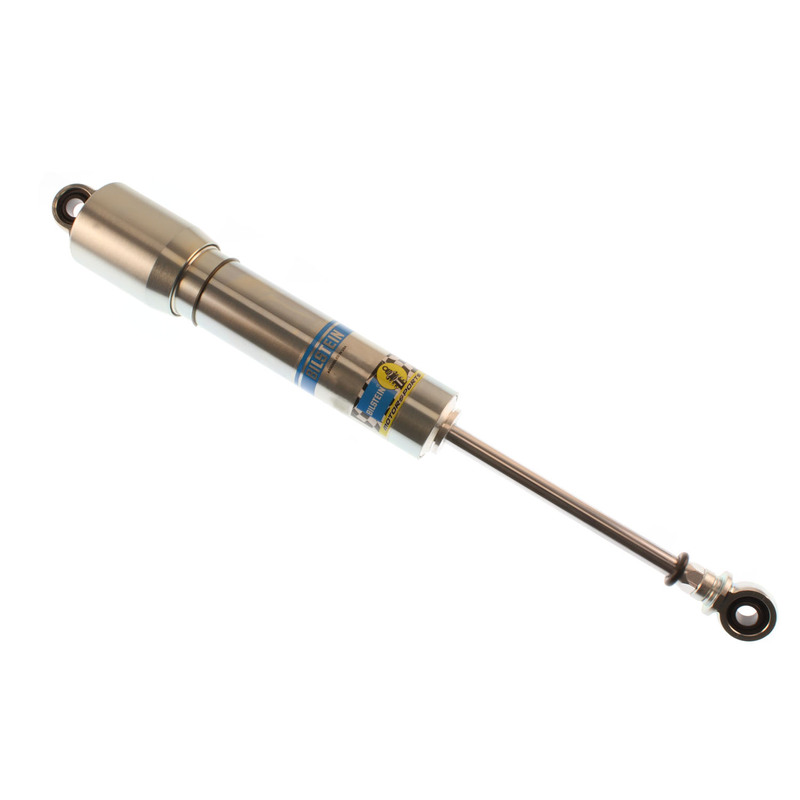

Bilstein XVS Series shock absorbers feature a 46mm piston, steel construction, and a threaded body designed for motorsports applications. These shock absorbers are rebuildable with an available fill plug tool (sold separately). The large volume dual zone nitrogen bulb, with optional base valve, allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. XVS Series shock absorbers are ideal for racers looking for a steel, rebuildable design with multiple upgrade options and superior performance.
  • 46mm extruded aluminum threaded body improves durability and heat dissipation
  • Dual-zone gas bulb decreases gas pressure while increasing grip levels
  • Optimized floating piston improves driver feel and response
Retail price
  • $367.00
Features
  • SKU
    33-221793
  • Brand
    Bilstein
  • Adjustable Damping
    No
  • Body Design
    Smooth Body
  • Body Inside Diameter
    46.0 mm
  • Body Material
    Steel
  • Coilover Type
    Non-Coilover
  • Collapsed Length
    15.24 in.
  • Collapsed Length
    387.0 mm
  • Compression at 0.52 m/s
    2,645.0 N
  • Extended Length
    23.64 in.
  • Extended Length
    600.5 mm
  • Finish
    Zinc Plated
  • Includes Boot
    No
  • Includes Spring Seat
    No
  • Internal Design
    Monotube
  • Lower Mount Type
    12.7 mm Heim
  • Mediem Adjustable Compression Valve
    3-7
  • Piston Type
    Linear
  • Rebound @0.52m/s
    1465
  • Series
    XVS Series
  • Upper Mount Type
    12.7 mm Heim
  • Valving Type
    Mediem Adjustable Compression Valve
