Bilstein Shock Absorbers
        Bilstein

        Bilstein Shock Absorbers

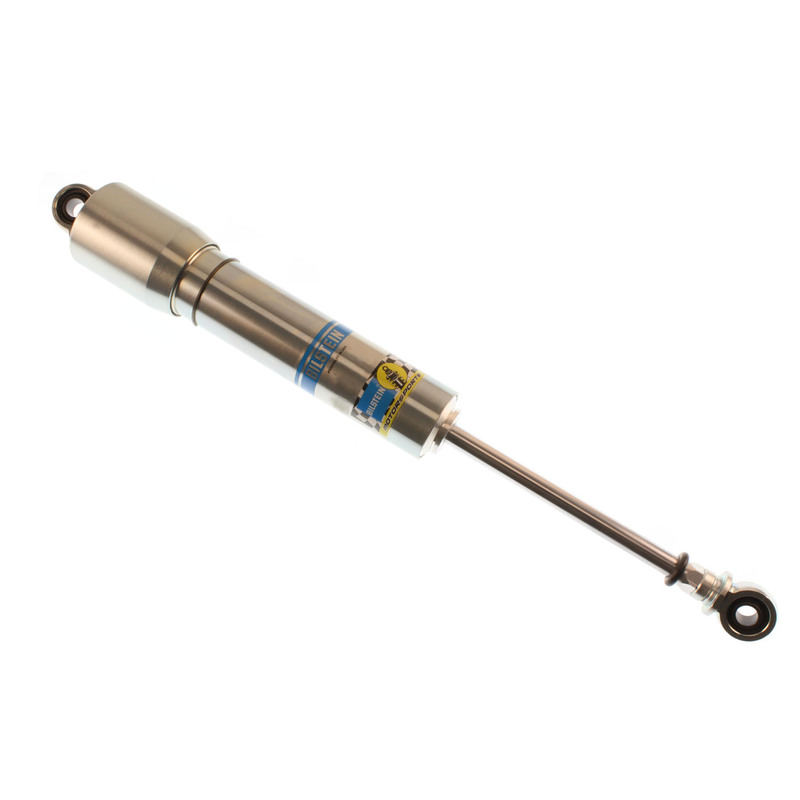

        Part Number:33-221861
        Bilstein XVS Series shock absorbers feature a 46mm piston, steel construction, and a threaded body designed for motorsports applications. These shock absorbers are rebuildable with an available fill plug tool (sold separately). The large volume dual zone nitrogen bulb, with optional base valve, allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. XVS Series shock absorbers are ideal for racers looking for a steel, rebuildable design with multiple upgrade options and superior performance.
        • 46mm extruded aluminum threaded body improves durability and heat dissipation
        • Dual-zone gas bulb decreases gas pressure while increasing grip levels
        • Optimized floating piston improves driver feel and response
        Retail price
        • $367.00
        Features
        • SKU
          33-221861
        • Brand
          Bilstein
        • Adjustable Damping
          No
        • Body Design
          Smooth Body
        • Body Inside Diameter
          46.0 mm
        • Body Material
          Steel
        • Coilover Type
          Non-Coilover
        • Collapsed Length
          13.35 in.
        • Collapsed Length
          339.0 mm
        • Compression at 0.52 m/s
          790.0 N
        • Extended Length
          20.04 in.
        • Extended Length
          509.0 mm
        • Finish
          Zinc Plated
        • Includes Boot
          No
        • Includes Spring Seat
          No
        • Internal Design
          Monotube
        • Lower Mount Type
          12.7 mm Heim
        • PartType
          Shocks / Struts
        • Piston Style
          Digressive
        • Prop 65 (Y/N)
          Y
        • Prop 65 - Short Label
          WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
        • Rebound @0.52m/s
          2795
        • Segment
          Motorsports
        • Series
          XVS Series
        • Spring Hardware
          B4-BOA-0000117
        • Spring Max Travel (IN)
          6.69
        • Title
          Bilstein Shock Absorbers
        • Upper Mount Type
          12.7 mm Heim
        • Valving Compression Open Bound
          10-2
        • Valving Type
          Valving Compression Open Bound
