Bilstein Shock Absorbers
        Bilstein

        Bilstein Shock Absorbers

        Part Number:33-247786

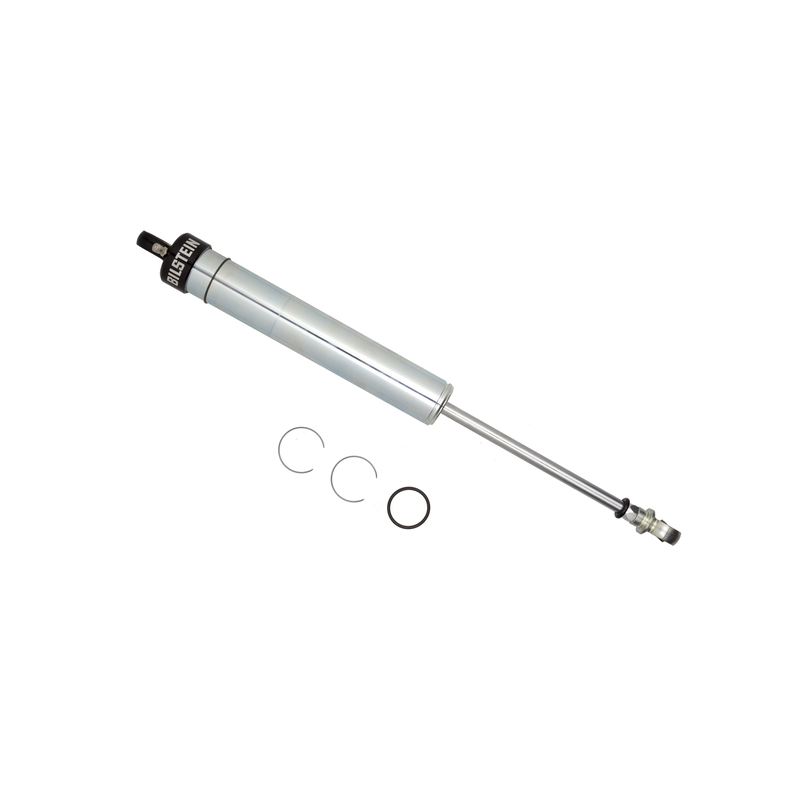

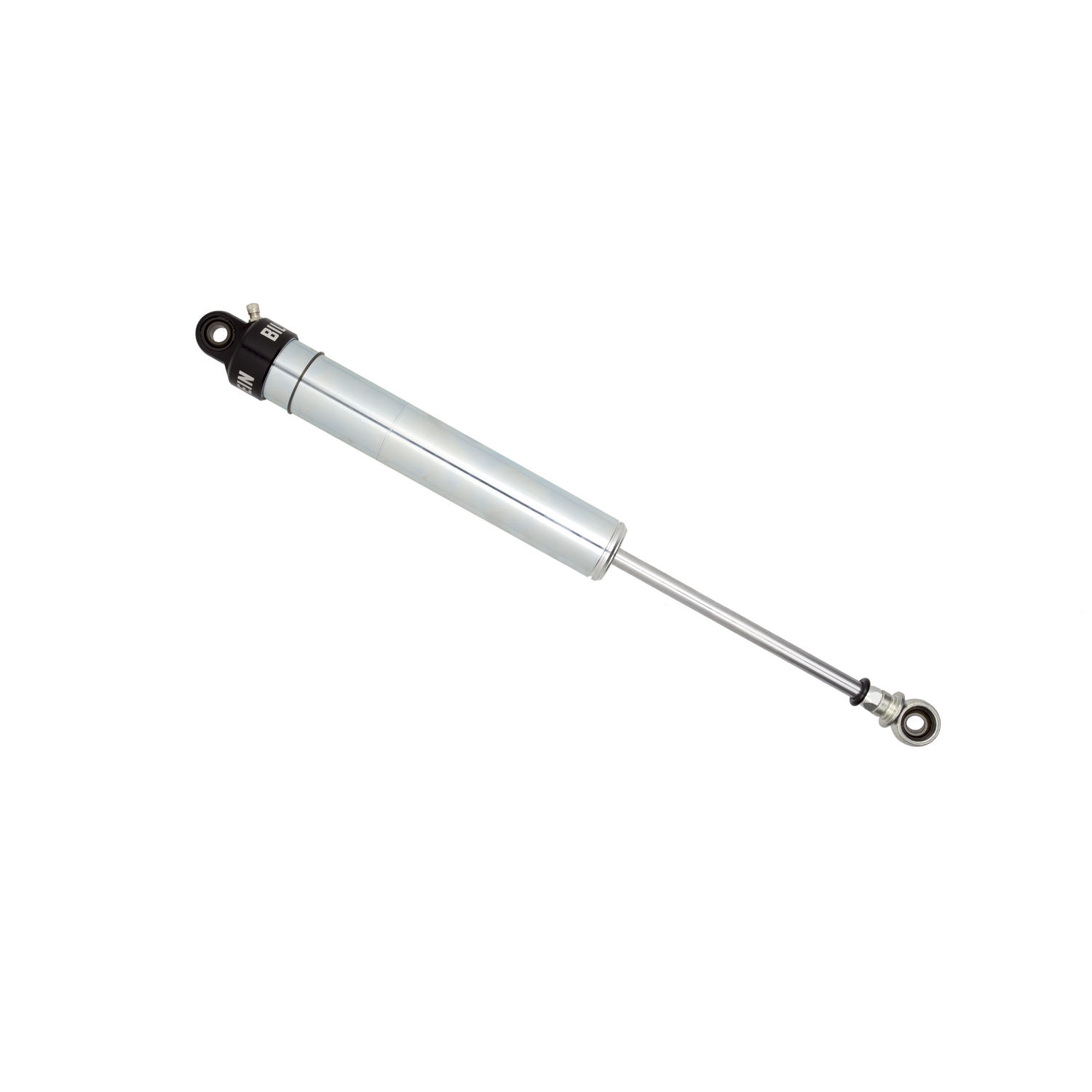

        Bilstein SN2 Series shock absorbers feature a steel, smooth body design utilizing the 46mm monotube technology (piston and piston band sold separately) designed for motorsports applications. These shock absorbers are available in non-, single and double adjustable configurations in optimized lengths and can also be converted to a coilover design (kit sold separately). SN2 Series shock absorbers are ideal for racers whose sanctioning rules require steel body shock absorbers but allow for a user rebuildable design and aluminum end caps.
        • Plated steel body for durability and superior heat dissipation
        • 46mm piston design for maximum damping control
        • Standard 1/2” graphite heims
        Retail price
        • $199.00
        Features
        • SKU
          33-247786
        • Brand
          Bilstein
        • Adjustable Damping
          No
        • Body Design
          Smooth Body
        • Body Inside Diameter
          46.0 mm
        • Body Material
          Steel
        • Coilover Type
          Non-Coilover
        • Collapsed Length
          15.12 in.
        • Collapsed Length
          384.0 mm
        • Extended Length
          23.9 in.
        • Extended Length
          607.0 mm
        • Finish
          Zinc Plated
        • Includes Boot
          No
        • Includes Spring Seat
          No
        • Internal Design
          Monotube
        • Lower Mount Type
          12.7 mm Heim
        • PartType
          Shocks / Struts
        • Piston Type
          Linear
        • Prop 65 (Y/N)
          Y
        • Prop 65 - Short Label
          WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
        • Segment
          Motorsports
        • Series
          SN2 Series
        • Shock Cap Type
          Screw Top
        • Spring Hardware
          B4-BOA-0000117
        • Spring Max Travel (IN)
          8.78
        • Title
          Bilstein Shock Absorbers
        • Upper Mount Type
          12.7 mm Heim
        • Valve Type
          Linear Dry Kit (no valving)
