Bilstein Shock Absorbers

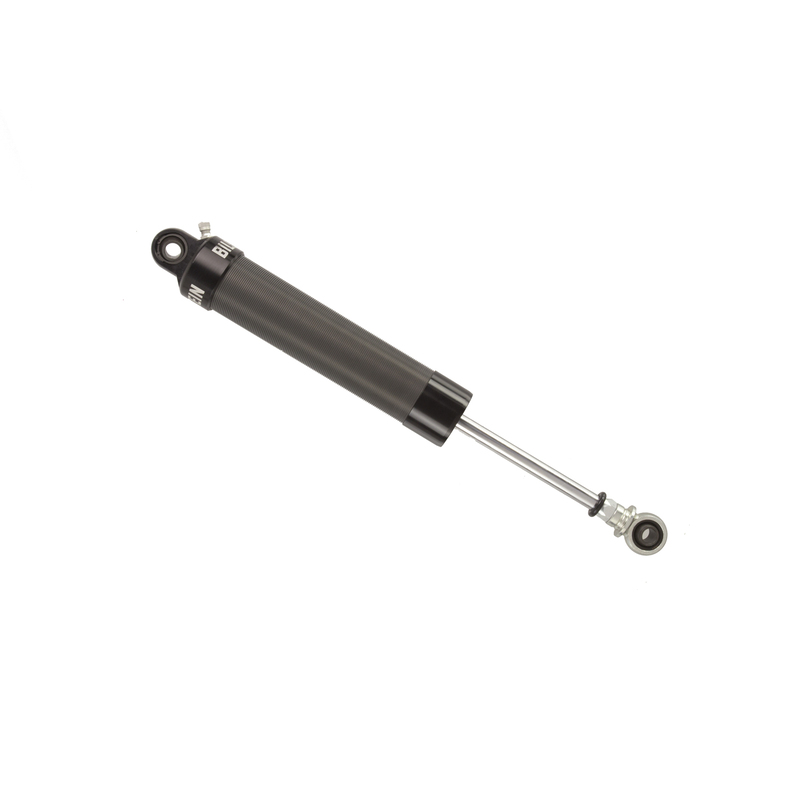

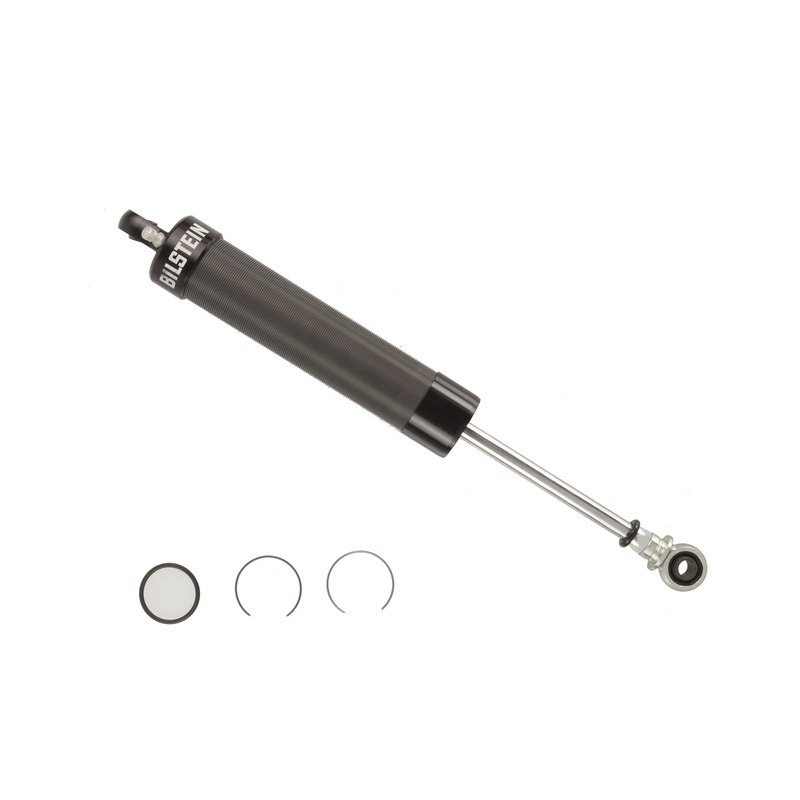

Part Number:33-247861
Bilstein AS2 Series shock absorbers are designed for motorsports applications and provide the user with the option to rebuild them. The modular aluminum design is offered in non-, single and double adjustable configurations which provide superior on-vehicle tuning capabilities. The threaded body provides precise height adjustments for coilover setups and dissipates heat quickly. The hard anodized coating reduces internal friction and improves strength and durability (pistons, piston bands and heims are sold separately to allow for a variety of combinations). AS2 Series shock absorbers are ideal for racers demanding a lightweight design with upgrade capability.
  • 46mm lightweight extruded aluminum body for superior heat dissipation
  • Fine thread body provides precise adjustments in coilover applications
  • Single and double adjustable shaft options available
Retail price
  • $259.00
Features
  • SKU
    33-247861
  • Brand
    Bilstein
  • Adjustable Damping
    No
  • Body Design
    Threaded Body
  • Body Inside Diameter
    46.0 mm
  • Body Material
    Aluminum
  • Coilover Type
    Coilover
  • Collapsed Length
    12.0 in.
  • Collapsed Length
    304.8 mm
  • Color
    Natural
  • Extended Length
    17.89 in.
  • Extended Length
    454.3 mm
  • Finish
    Anodized
  • Includes Boot
    No
  • Includes Spring Seat
    No
  • Internal Design
    Monotube
  • Lower Mount Type
    12.7 mm Heim
  • Piston Style
    Digressive
  • Series
    AS2 Series
  • Shock Cap Type
    Screw Top
  • Upper Mount Type
    12.7 mm Heim
  • Valve Type
    Digressive Dry Kit (no valving)
