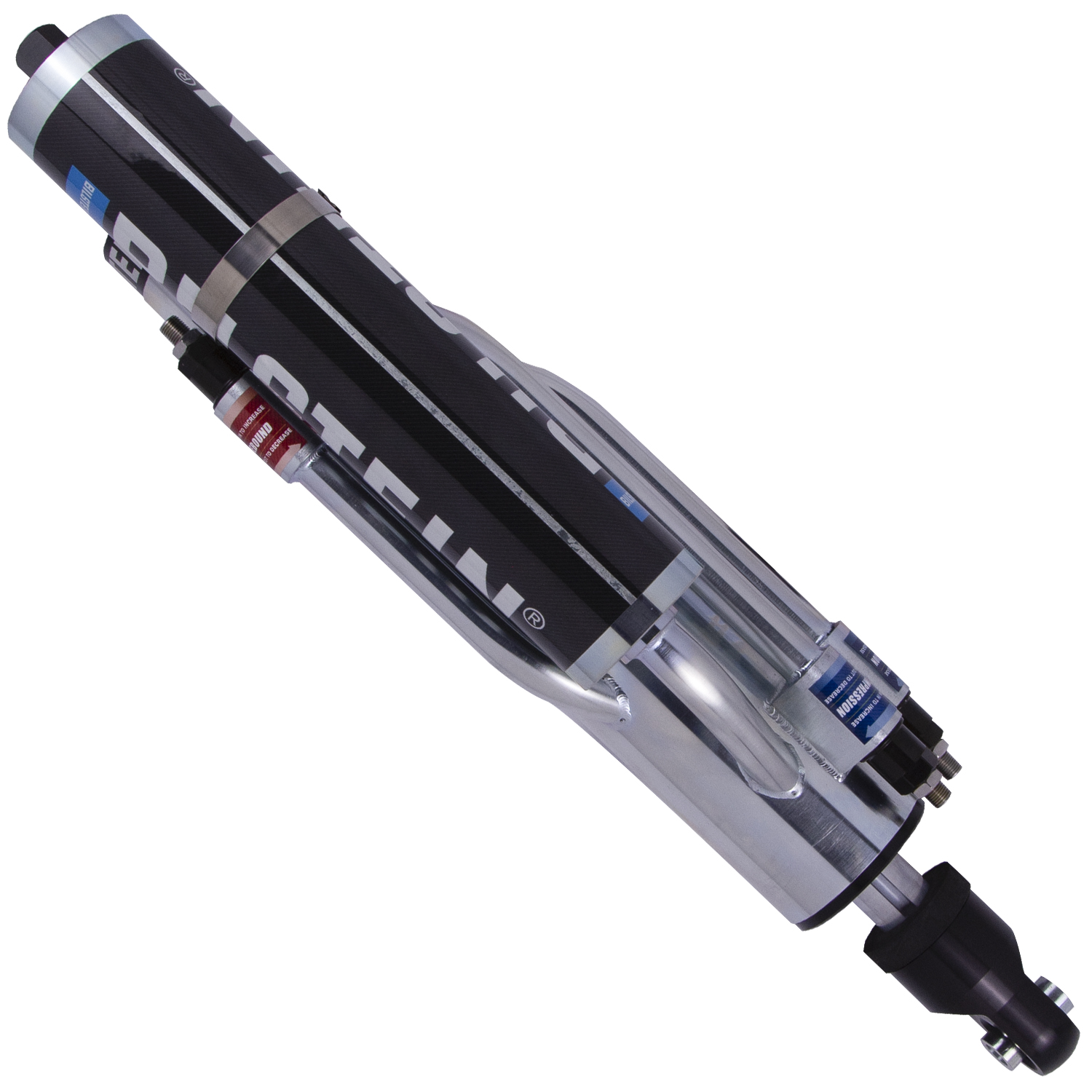

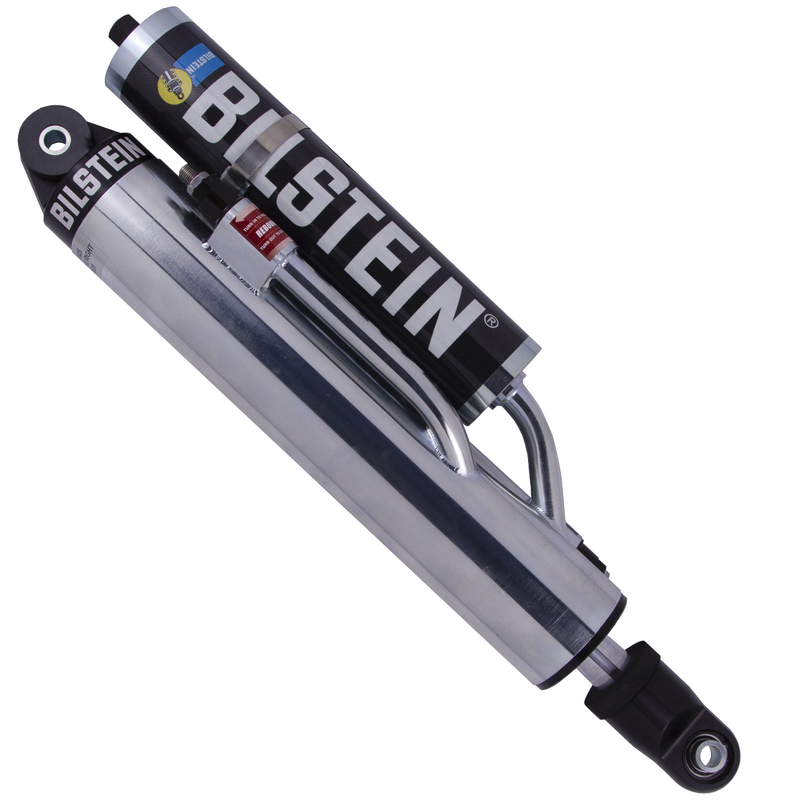

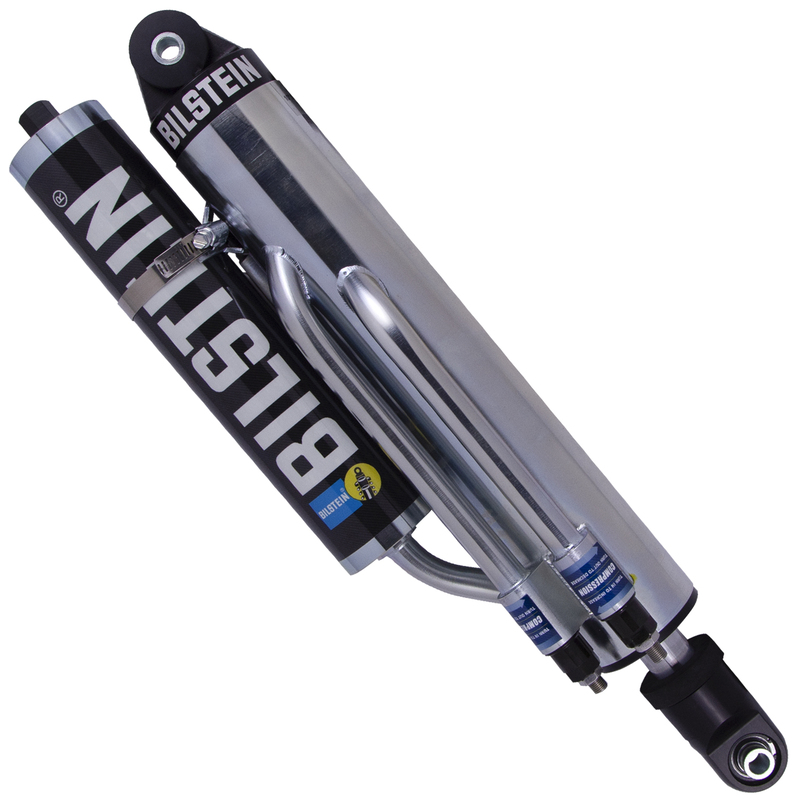

        Bilstein Shock Absorbers

        Part Number:33-250625
        Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.
        • Available in 60mm, 70mm and 83mm monotubes
        • 4-tube, position sensitive with adjustable rebound and compression
        • Multiple stroke lengths available ranging from 8" to 18"
        Retail price
        • $1,348.00
        Features
        • SKU
          33-250625
        • Brand
          Bilstein
        • Body Inside Diameter
          70.0 mm
        • Boot Included
          N/A
        • Bypass Type
          3-Tube
        • Collapsed Length
          19.5 in.
        • Collapsed Length
          20.0 in.
        • Collapsed Length
          495.3 mm
        • Compression at 0.52 m/s
          Custom
        • Extended Length
          29.5 in.
        • Extended Length
          30.0 in.
        • Extended Length
          749.3 mm
        • Finish
          Zinc Plated
        • Includes Reservoir
          Yes
        • Includes Spring Seat
          No
        • Internal Design
          Monotube
        • Lower Mount Type
          Eye 12.7 x 38.1 mm
        • Mount End Type
          Eye-To-Eye
        • Optional Reservoir Clamp
          N/A
        • PartType
          Shocks / Struts
        • Position
          Right
        • Prop 65 (Y/N)
          Y
        • Prop 65 - Short Label
          WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
        • Rebound at 0.52 m/s
          Custom
        • Segment
          Motorsports
        • Series
          M 9200 (Bypass)
        • Shock Cap Type
          Screw Top
        • Spring Max Travel (IN)
          10.00
        • Title
          Bilstein Shock Absorbers
        • Upper Mount Type
          Eye 12.7 x 38.1 mm
