Part Number:33-255187

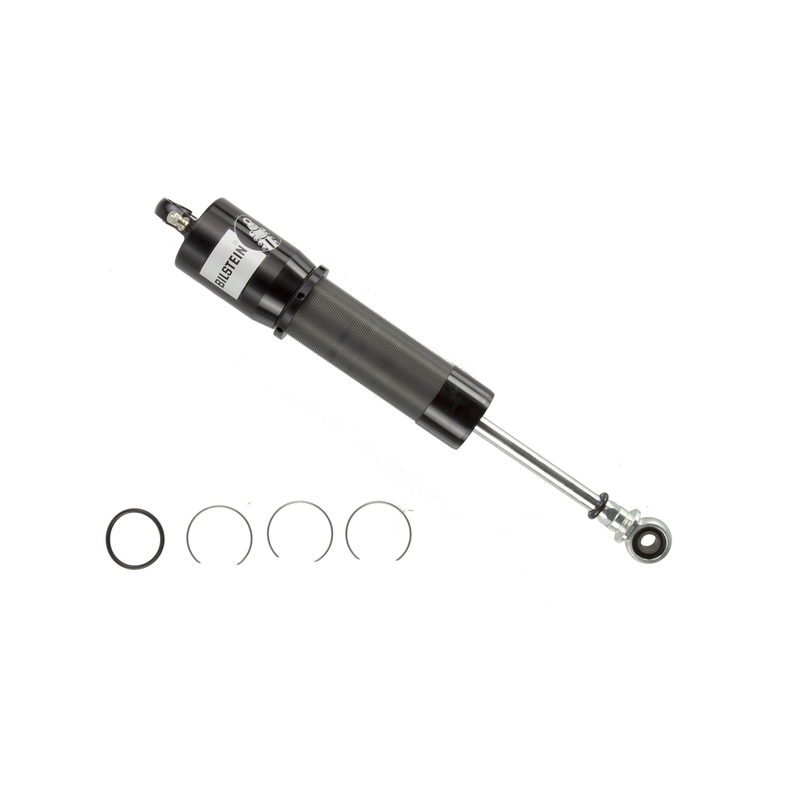

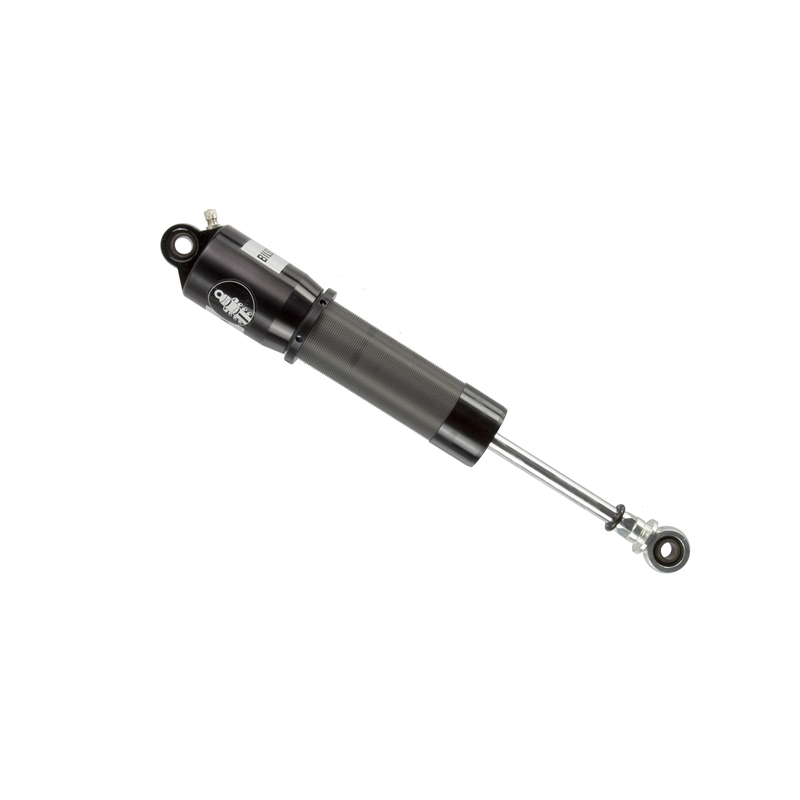

46mm Monotube Shock Absorber

Bilstein XVA Series shock absorbers features aluminum threaded body construction designed for motorsports applications. The large volume dual zone nitrogen bulb, with optional base valve (sold separately), allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. Pistons, piston bands and heims are sold separately to allow the greatest flexibility in upgrade combinations. XVA Series shock absorbers are ideal for racers looking for an aluminum, rebuildable design with multiple upgrade options and superior performance.
  • 46mm extruded aluminum threaded body improves durability and heat dissipation
  • Dual-zone gas bulb decreases gas pressure while increasing grip levels
  • Optimized floating piston improves driver feel and response

Retail price
  • $375.00
Features
  • SKU
    33-255187
  • Brand
    Bilstein
  • Adjustable Damping
    No
  • Body Design
    Threaded Body
  • Body Inside Diameter
    46.0 mm
  • Body Material
    Aluminum
  • Coilover Type
    Coilover
  • Collapsed Length
    11.87 in.
  • Collapsed Length
    301.5 mm
  • Color
    Natural
  • Extended Length
    16.75 in.
  • Extended Length
    425.5 mm
  • Finish
    Anodized
  • Includes Boot
    No
  • Includes Spring Seat
    No
  • Internal Design
    Monotube
  • Lower Mount Type
    12.7 mm Heim
  • Piston Type
    Linear
  • Series
    XVA Series
  • Shock Cap Type
    Large Bulb Screw Top
  • Upper Mount Type
    12.7 mm Heim
  • Valve Type
    Linear Dry Kit (no valving)
Fitment
Installation
  • F4-BOA-0001212_0.pdf
More Detail
    • BILSTEIN_Measure_a_Shock.pdf
    • USA SDS_Shock_Air Spring_V2_EN.pdf
