Bilstein Shock Absorbers

Part Number:41-284575

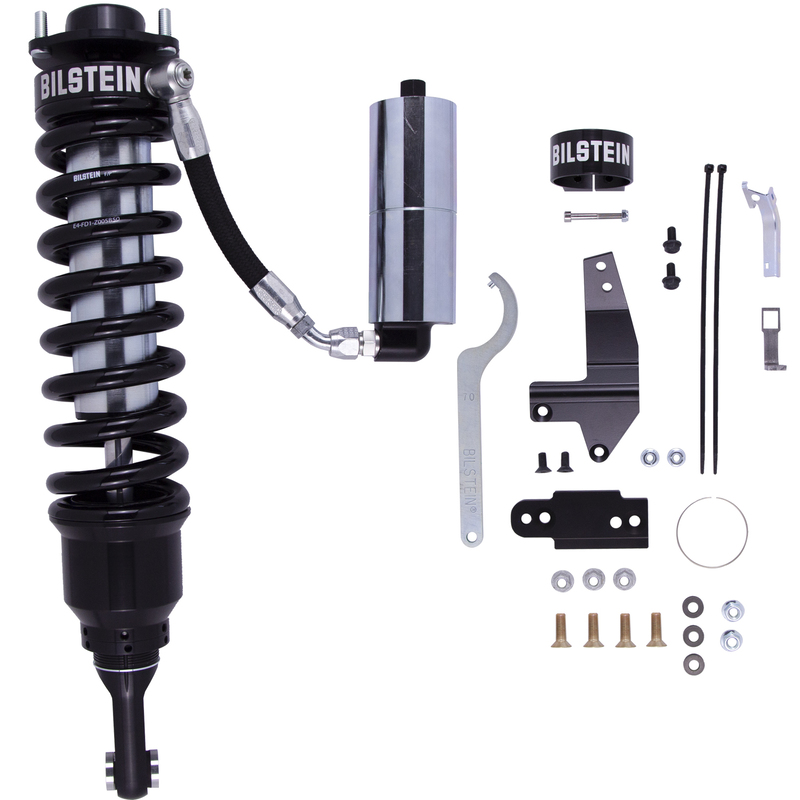

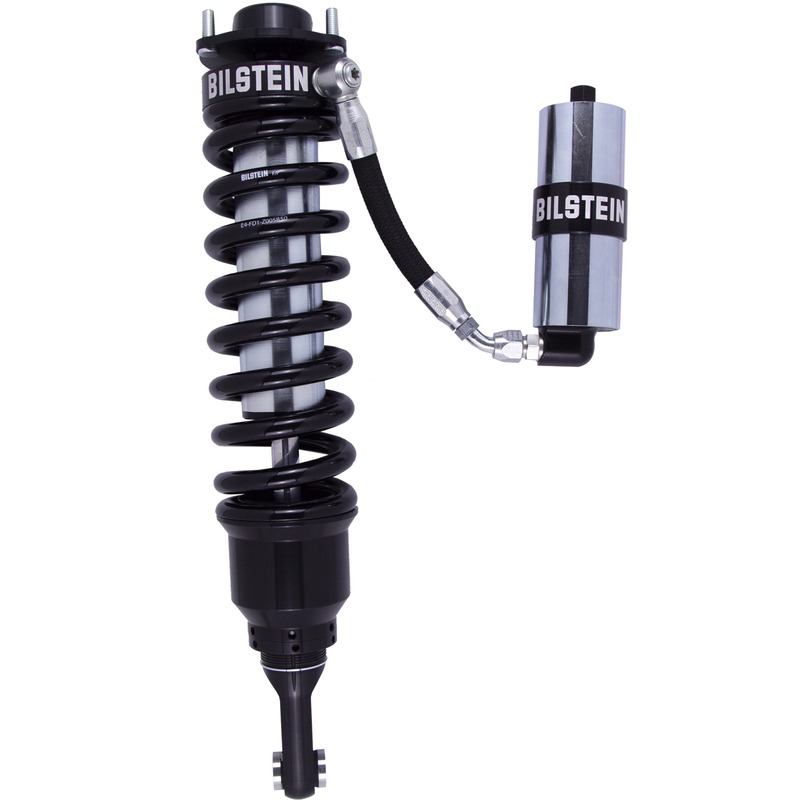

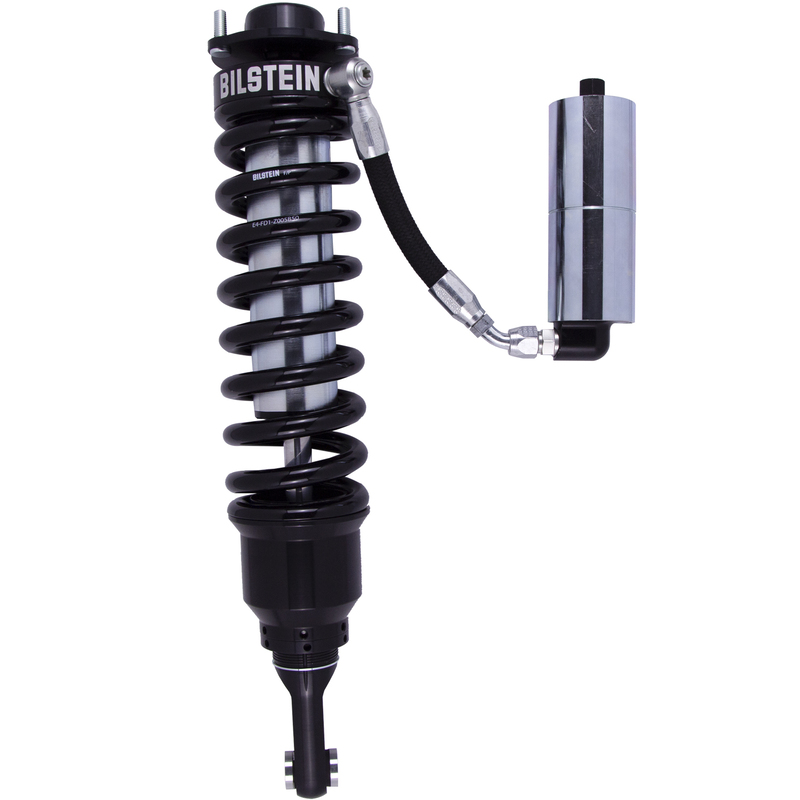

Bilstein B8 8112 (ZoneControl CR) is a direct fit, 2.65-in body position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.
  • ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
  • Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
  • 60mm remote reservoir for increased oil capacity and cooling
Retail price
  • $1,189.90
Features
  • SKU
    41-284575
  • Brand
    Bilstein
  • Adjustable Damping
    No
  • Body Inside Diameter
    60.0 mm
  • Body Material
    Steel
  • Collapsed Length
    17.99 in.
  • Collapsed Length
    456.9 mm
  • Damper Finish
    Zinc Plated
  • Extended Length
    22.8 in.
  • Extended Length
    579.1 mm
  • Includes Boot
    No
  • Includes Reservoir
    Yes
  • Includes Spring Seat
    Yes
  • Internal Design
    Monotube
  • Lower Mount Type
    Eye 14.1 mm
  • Series
    B8 8112 (ZoneControl CR)
  • Spring Color
    Black
  • Upper Mount Type
    Special
