Bilstein

Bilstein Shock Absorbers

Part Number:A411152530
Discontinued

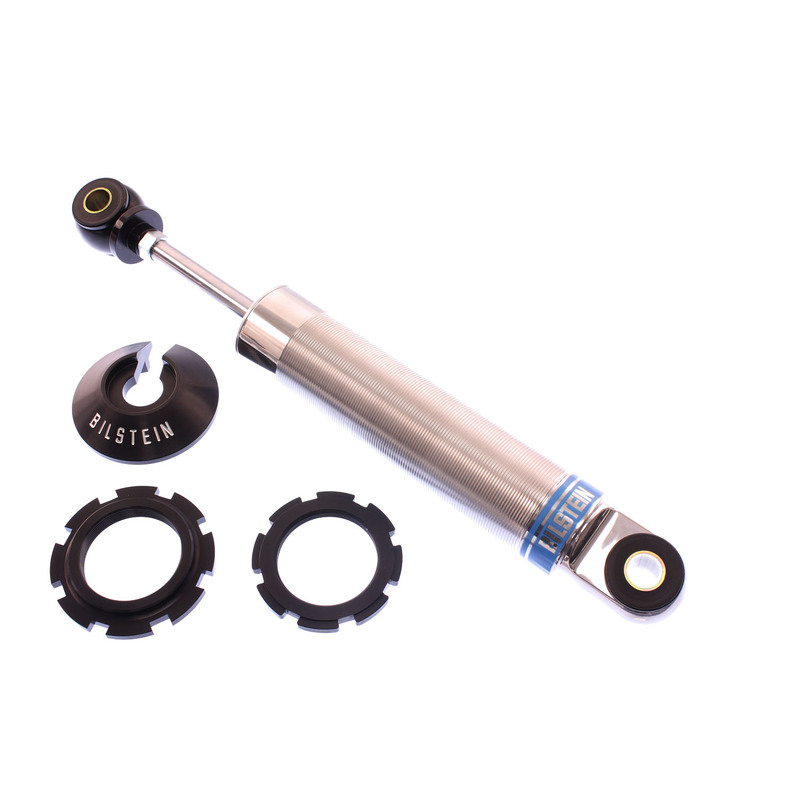

Bilstein CA4 Series shock absorbers are designed specifically for custom street rod applications that require unique lengths and valve settings for the proper chassis setup. Built around a billet aluminum monotube design, these shock absorbers feature a 46mm piston, threaded body, 5/8 inch polyurethane bushing mounts and various lengths and valve settings to choose from. Each shock absorber is supplied with a hard anodized spring seat, lock ring, and hat to accommodate a 2.5 inch ID spring. Bilstein CA4 Series shock absorbers provide a wide range of options to support any custom street rod application need.
  • Designed specifically for custom street rod applications that require unique lengths and valve settings for the proper chassis setup
  • Built around a billet aluminum monotube design, these shock absorbers feature a 46mm piston, threaded body, 5/8 inch polyurethane bushing mounts and various lengths and valve settings to choose from

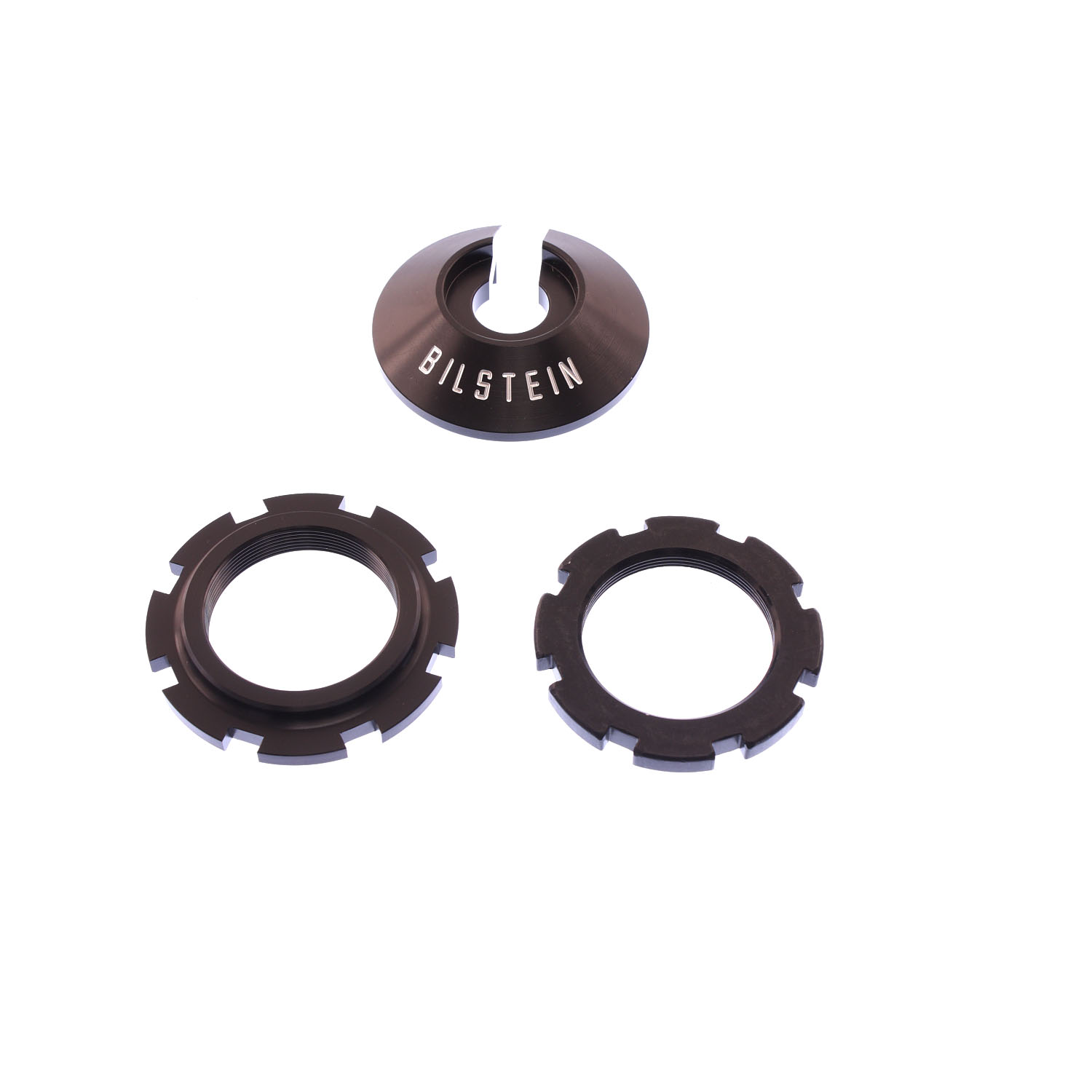

  • Each shock absorber is supplied with a hard anodized spring seat, lock ring, and hat to accommodate a 2.5 inch ID spring
Retail price
  • $407.00
Features
  • SKU
    A411152530
  • Brand
    Bilstein
  • Collapsed Length
    11.67 in.
  • Collapsed Length
    296.5 mm
  • Compression at 0.52 m/s
    370.0 N
  • Extended Length
    15.16 in.
  • Extended Length
    385.0 mm
  • Finish
    Polished
  • Includes Boot
    No
  • Includes Spring Seat
    Yes
  • Internal Design
    Monotube
  • Lower Mount Type
    Eye 15.9 mm
  • Material
    Aluminum
  • Position
    Rear
  • Rebound @0.52m/s
    1350
  • Recommended Mounting Length
    12.5 in.
  • Series
    CA4 Series
  • Upper Mount Type
    Eye 15.9 mm
See More
