Bilstein Shock Absorbers
Bilstein

Bilstein Shock Absorbers

Part Number:AK7110SB05
Discontinued

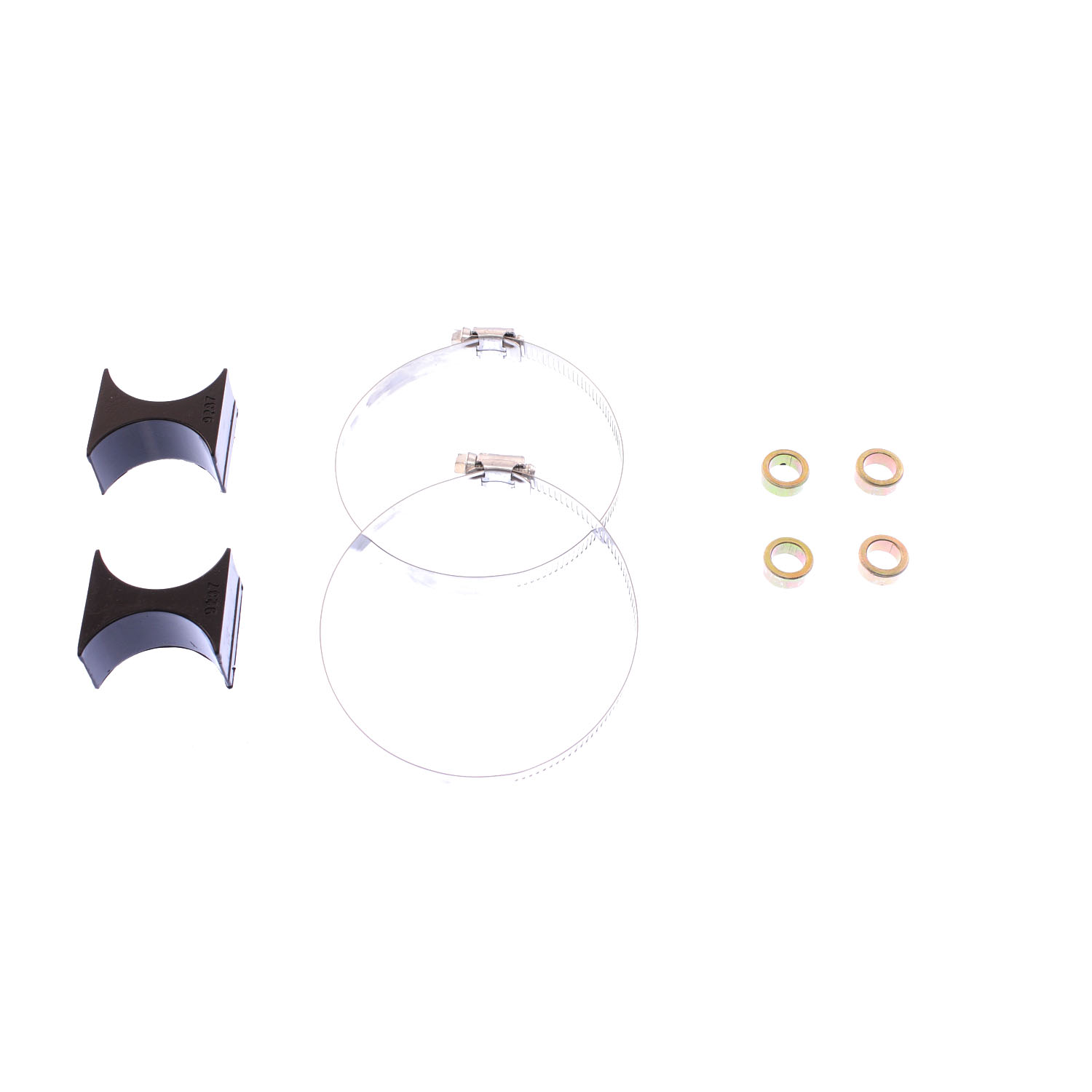

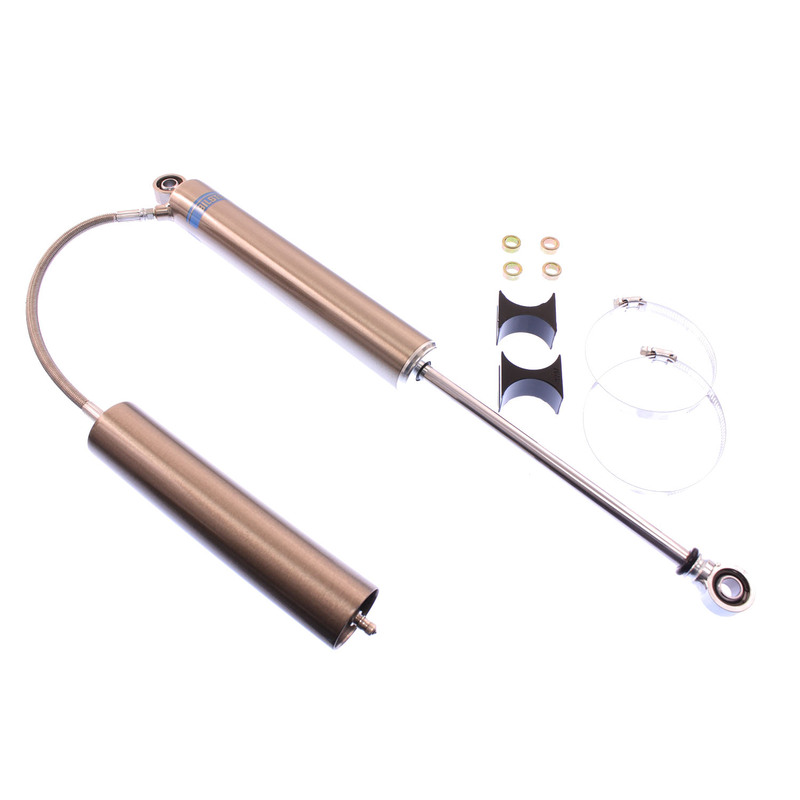

Bilstein M 7100 shock absorbers are designed for custom off-road motorsports and recreational applications. These shock absorbers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each shock absorber is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 shock absorbers are available in a wide array of lengths and valve settings. Service components for M 7100 shock absorbers are readily available and sold separately. M 7100 shock absorbers will offer reliable performance that is customizable to meet specific demands.
  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
  • High-flow piston reduces harshness
Features
  • SKU
    AK7110SB05
  • Brand
    Bilstein
  • Body Design
    Smooth Body
  • Body Inside Diameter
    46.0 mm
  • Coilover Type
    Non-Coilover
  • Collapsed Length
    14.0 in.
  • Collapsed Length
    14.21 in.
  • Collapsed Length
    360.9 mm
  • Compression at 0.52 m/s
    780.0 N
  • Extended Length
    24.0 in.
  • Extended Length
    24.31 in.
  • Extended Length
    617.5 mm
  • Finish
    Nickel Plated with Clear Powder Coat
  • Includes Reservoir
    Yes
  • Includes Spring Seat
    No
  • Internal Design
    Monotube
  • Lower Mount Type
    12.7 mm Heim
  • Mount End Type
    Eye-To-Eye
  • Rebound @0.52m/s
    2750
  • Series
    M 7100
  • Upper Mount Type
    12.7 mm Heim
