        Bilstein Shock Absorbers

        Part Number:B46-1103S

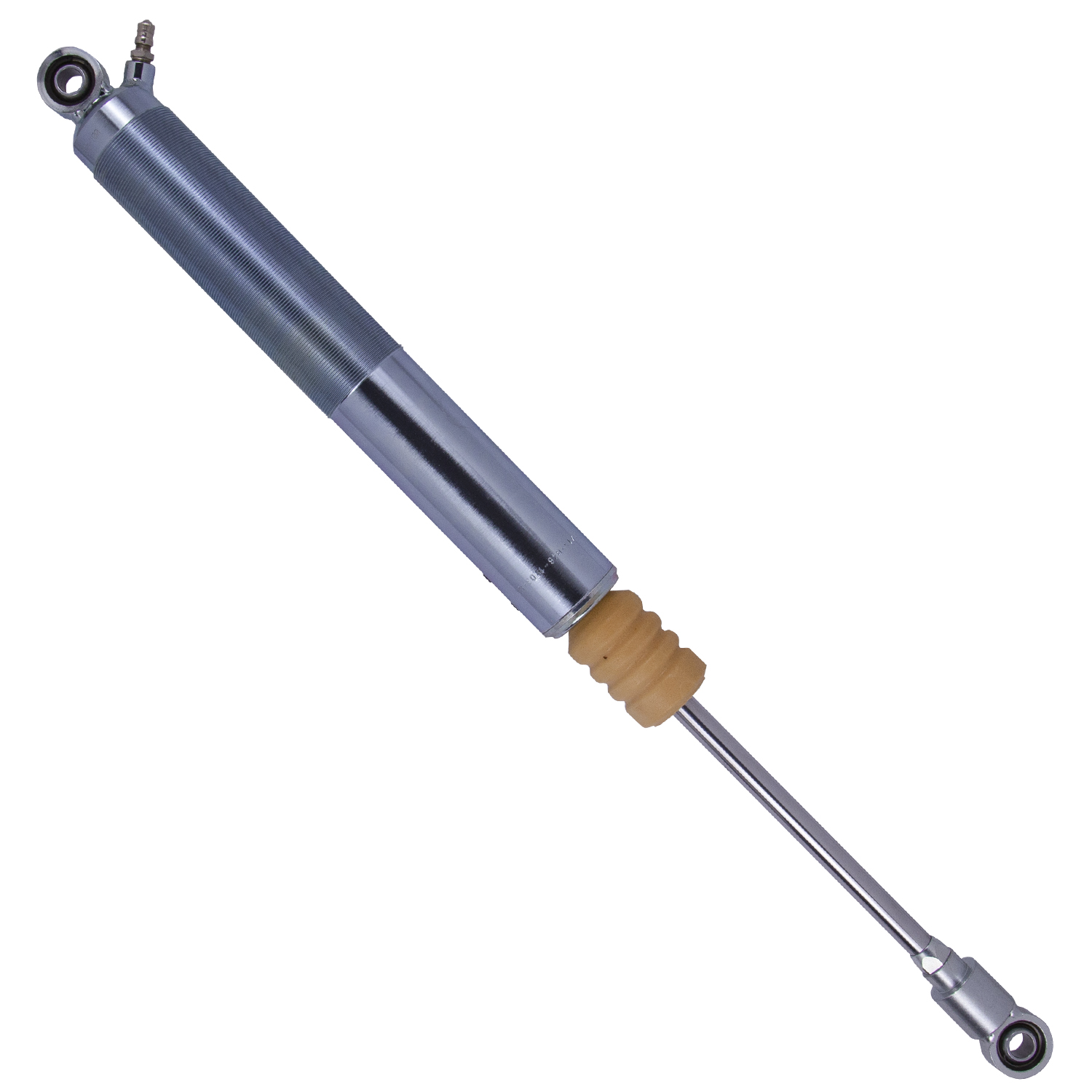

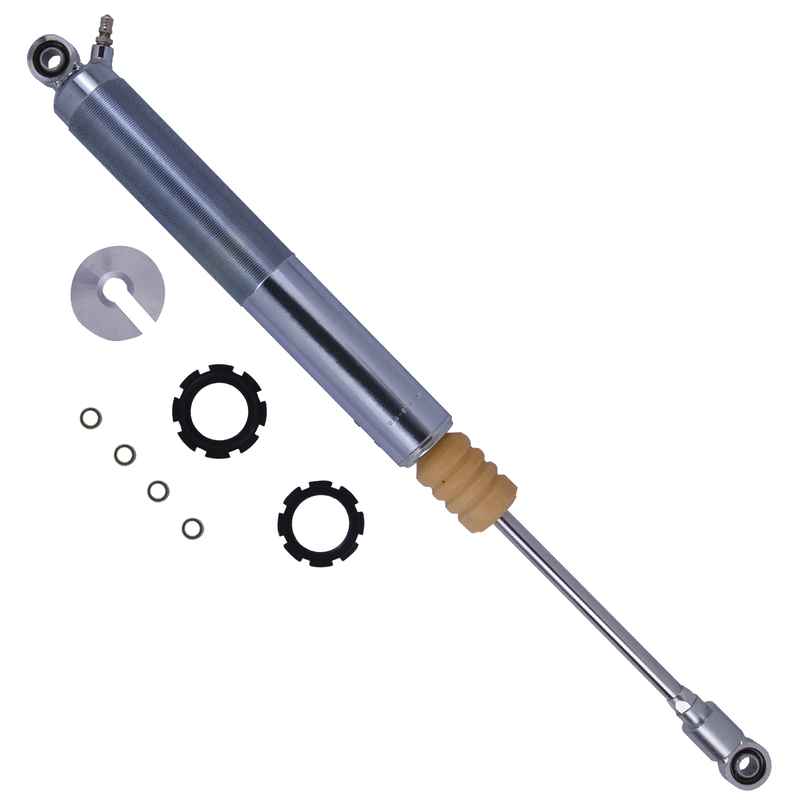

        Bilstein M 7100 (Coilover) is designed for custom off-road motorsports and recreational applications. These coilovers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each coilover is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 (Coilover) is offered in a 10 inch travel stroke with a choice of multiple valve settings and will accommodate a 2.5 inch ID coil spring. All service components are readily available and sold separately. M 7100 (Coilover) is the perfect choice for light weight off-road vehicles.
        • 46mm monotube design ensures consistent, fade-free performance in all conditions
        • Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
        • High-flow piston reduces harshness
        Retail price
        • $235.00
        Features
        • SKU
          B46-1103S
        • Brand
          Bilstein
        • Body Design
          Threaded Body
        • Body Inside Diameter
          46.0 mm
        • Coilover Type
          Coilover
        • Collapsed Length
          17.0 in.
        • Collapsed Length
          17.44 in.
        • Collapsed Length
          443.0 mm
        • Compression at 0.52 m/s
          1,000.0 N
        • Extended Length
          26.65 in.
        • Extended Length
          27.0 in.
        • Extended Length
          676.9 mm
        • Feature Note
          Reservoir Not Included
        • Finish
          Nickel Plated with Clear Powder Coat
        • Includes Spring Seat
          Yes
        • Internal Design
          Monotube
        • Lower Mount Type
          12.7 mm Heim
        • Mount End Type
          Eye-To-Eye
        • Optional Reservoir Clamp
          N/A
        • PartType
          Shocks / Struts
        • Prop 65 (Y/N)
          Y
        • Prop 65 - Short Label
          WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
        • Rebound @0.52m/s
          2550
        • Segment
          Motorsports
        • Series
          M 7100 (Coilover)
        • Spring Hardware
          Single Rate (2.5in)
        • Spring Max Travel (IN)
          9.21
        • Title
          Bilstein Shock Absorbers
        • Upper Mount Type
          12.7 mm Heim
