Bilstein Shock Absorbers
        • Bilstein Shock Absorbers
        • Bilstein Shock Absorbers
        • Bilstein Shock Absorbers
        Bilstein

        Bilstein Shock Absorbers

        Part Number:B46-9110BYST

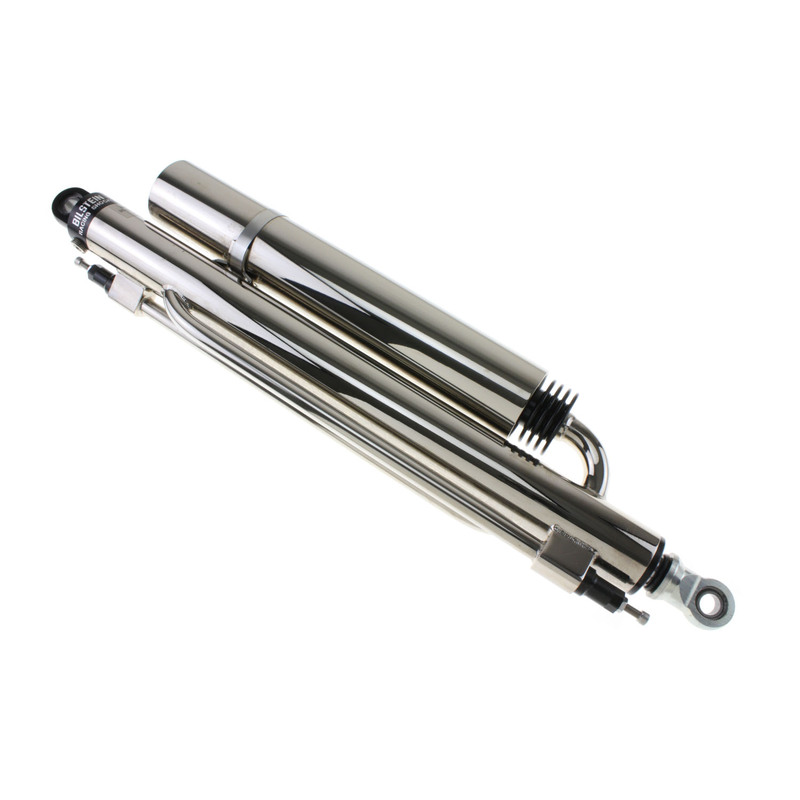

        Bilstein M 9100 (Bypass) off-road racing shock absorbers are filled with the technology perfected over 3 decades of off-road dominance. Bilstein's monotube gas pressure design maximizes heat dissipation for increased shock life, and decreases oil foaming to prevent performance loss while under extreme working conditions. Available for lifted truck, custom truck, rock crawling and off-road racing applications.
        • Filled with technology perfected over 3 decades of off-road dominance
        • Monotube gas pressure design maximizes heat dissipation
        • Available for lifted truck, custom truck, rock crawling and off-road racing applications
        Retail price
        • $604.00
        Features
        • SKU
          B46-9110BYST
        • Brand
          Bilstein
        • Body Inside Diameter
          46.0 mm
        • Bypass Type
          2-Tube
        • Collapsed Length
          19.71 in.
        • Collapsed Length
          20.0 in.
        • Collapsed Length
          500.6 mm
        • Compression at 0.52 m/s
          Custom
        • Extended Length
          29.5 in.
        • Extended Length
          30.0 in.
        • Extended Length
          749.3 mm
        • Finish
          Nickel Plated
        • Includes Reservoir
          Yes
        • Includes Spring Seat
          No
        • Internal Design
          Monotube
        • Lower Mount Type
          12.7 mm Heim
        • Mount End Type
          Eye-To-Eye
        • Optional Reservoir Clamp
          N/A
        • PartType
          Shocks / Struts
        • Prop 65 (Y/N)
          Y
        • Prop 65 - Short Label
          WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
        • Rebound at 0.52 m/s
          Custom
        • Segment
          Motorsports
        • Series
          M 9100 (Bypass)
        • Shock Cap Type
          Screw Top
        • Spring Max Travel (IN)
          9.79
        • Title
          Bilstein Shock Absorbers
        • Upper Mount Type
          12.7 mm Heim
