Bilstein

Bilstein Shock Absorbers

Part Number:B46-9118BYST
Discontinued

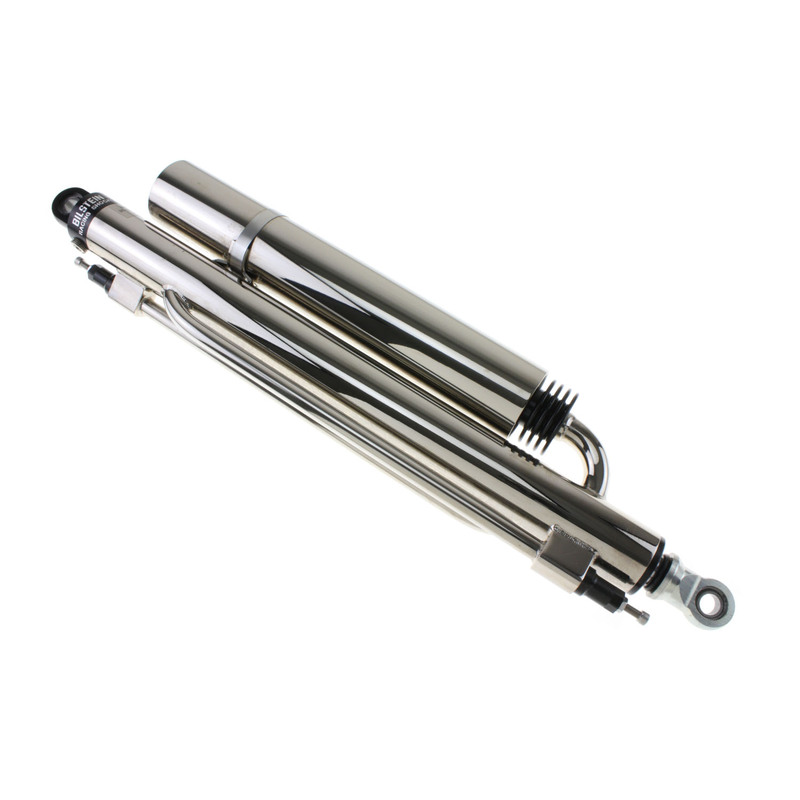

Bilstein M 9100 (Bypass) off-road racing shock absorbers are filled with the technology perfected over 3 decades of off-road dominance. Bilstein's monotube gas pressure design maximizes heat dissipation for increased shock life, and decreases oil foaming to prevent performance loss while under extreme working conditions. Available for lifted truck, custom truck, rock crawling and off-road racing applications.
  • Filled with technology perfected over 3 decades of off-road dominance
  • Monotube gas pressure design maximizes heat dissipation
  • Available for lifted truck, custom truck, rock crawling and off-road racing applications
Retail price
  • $604.00
Features
  • SKU
    B46-9118BYST
  • Brand
    Bilstein
  • Body Inside Diameter
    46.0 mm
  • Bypass Type
    2-Tube
  • Collapsed Length
    26.0 in.
  • Collapsed Length
    26.22 in.
  • Collapsed Length
    666.0 mm
  • Compression at 0.52 m/s
    Custom
  • Extended Length
    1,101.3 mm
  • Extended Length
    43.0 in.
  • Extended Length
    43.36 in.
  • Finish
    Nickel Plated
  • Includes Reservoir
    Yes
  • Includes Spring Seat
    No
  • Internal Design
    Monotube
  • Lower Mount Type
    12.7 mm Heim
  • Mount End Type
    Eye-To-Eye
  • Rebound at 0.52 m/s
    Custom
  • Series
    M 9100 (Bypass)
  • Shock Cap Type
    Screw Top
  • Upper Mount Type
    12.7 mm Heim
