Bilstein Shock Absorbers
        Bilstein

        Bilstein Shock Absorbers

        Part Number:B46-DTA5

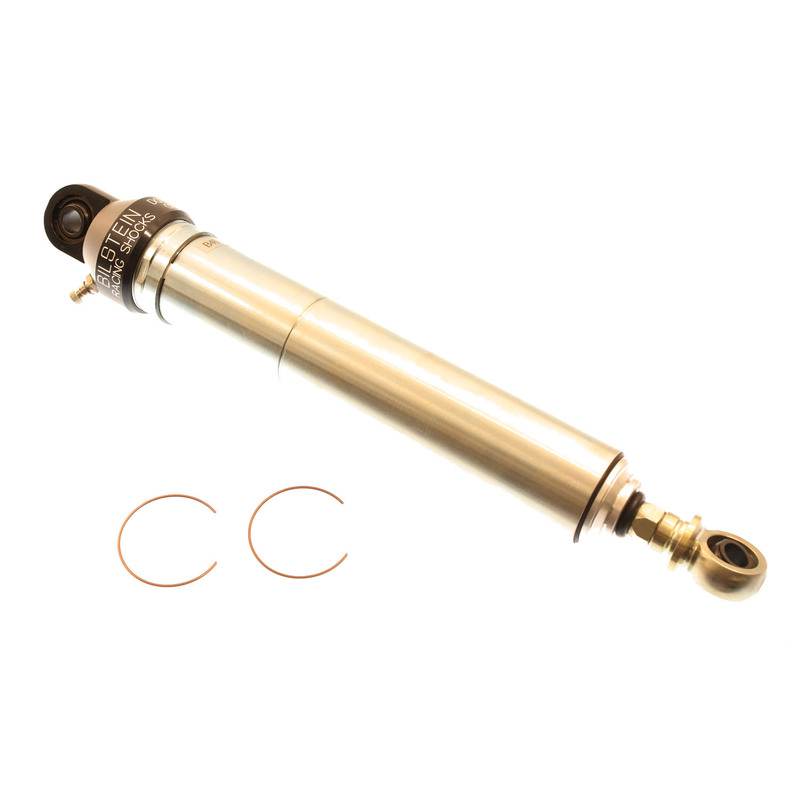

        Bilstein SN Series shock absorbers feature a 46mm piston, steel construction, and smooth body with a billet aluminum cap designed for motorsports applications. These shock absorbers are rebuildable for easy repair and valve setting changes, and can be converted to a coilover (kit sold separately). SN Series shock absorbers are available in multiple lengths and are ideal for racers whose sanctioning rules only allow steel body rebuildable shock absorbers with an aluminum cap.
        • 46mm extruded steel body with ultra smooth ID finish provides superior fitment tolerances with the large 46mm working piston design for precise fluid control
        • 14mm case hardened stainless steel chrome shaft that provides low seal drag/ friction and resists stone chips and dings
        • Standard with linear and digressive pistons, with optional upgrades available
        Retail price
        • $209.00
        Features
        • SKU
          B46-DTA5
        • Brand
          Bilstein
        • Collapsed Length
          11.48 in.
        • Collapsed Length
          291.6 mm
        • Compression
          Digressive
        • Extended Length
          16.32 in.
        • Extended Length
          414.5 mm
        • Finish
          Nickel Plated
        • Includes Boot
          No
        • Includes Spring Seat
          No
        • Internal Design
          Monotube
        • Mount Type - Lower
          Eye 12.7 mm
        • Mount Type - Upper
          Eye 12.7 mm
        • PartType
          Shocks / Struts
        • Prop 65 (Y/N)
          Y
        • Prop 65 - Short Label
          WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
        • Rebound Type
          Digressive
        • Segment
          Motorsports
        • Series
          SN Series
        • Title
          Bilstein Shock Absorbers
