Bilstein

Bilstein Shock Absorbers

Part Number:F4-B46-0207-ZH
Discontinued

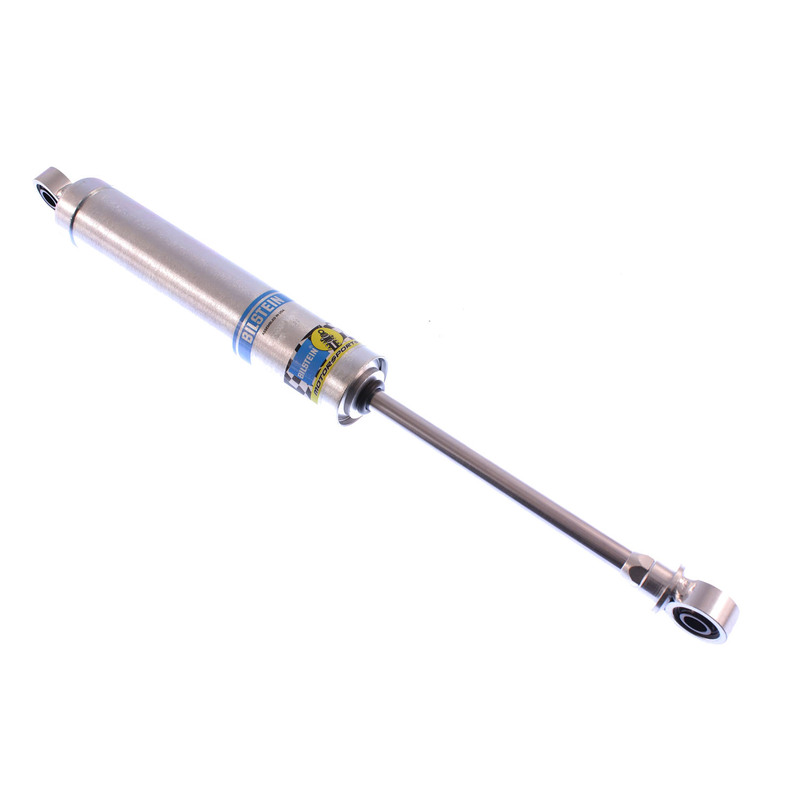

Bilstein SZ Series shock absorbers feature a 46mm piston, steel construction and smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths and standard digressive valve settings that utilize proprietary spring steel valve discs and can be converted to a coilover design (kit sold separately). They are also available as dry kits (partially assembled wtih no valving or gas) that are geared towards giving tuners the versatility to build to their unique needs. SZ Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.
  • Plated steel body for durability and superior heat dissipation
  • 46mm piston design for maximum damping control
  • Standard 1/2” graphite heims
Retail price
  • $170.50
Features
  • SKU
    F4-B46-0207-ZH
  • Brand
    Bilstein
  • Adjustable Damping
    No
  • Body Design
    Smooth Body
  • Body Inside Diameter
    46.0 mm
  • Body Material
    Steel
  • Coilover Type
    Non-Coilover
  • Collapsed Length
    14.88 in.
  • Collapsed Length
    378.0 mm
  • Compression at 0.26 m/s
    625.0 N
  • Extended Length
    23.52 in.
  • Extended Length
    597.5 mm
  • Finish
    Zinc Plated
  • Includes Boot
    No
  • Includes Spring Seat
    No
  • Internal Design
    Monotube
  • Lower Mount Type
    12.7 mm Heim
  • PartType
    Shocks / Struts
  • Piston Style
    Digressive
  • Prop 65 (Y/N)
    Y
  • Prop 65 - Short Label
    WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
  • Rebound @0.26m/s
    1340
  • Segment
    Motorsports
  • Series
    SZ Series
  • Spring Hardware
    B4-BOA-0000117
  • Spring Max Travel (IN)
    8.64
  • Title
    Bilstein Shock Absorbers
  • Upper Mount Type
    12.7 mm Heim
  • Valving Identifier
    6020
