Bilstein Shock Absorbers
        Bilstein

        Bilstein Shock Absorbers

        Part Number:F4-BE5-F614-M0

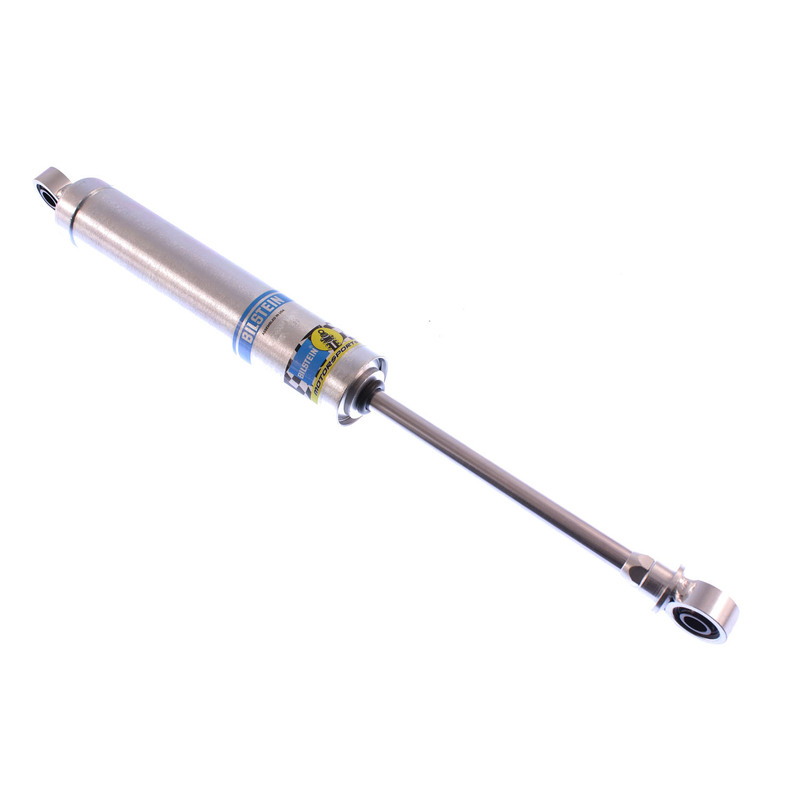

        Bilstein SLS Series shock absorbers feature a 46mm piston, steel construction, and a smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths, valve settings and can be converted to a coilover design (kit sold separately). SLS Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.
        • Plated steel body for durability and superior heat dissipation
        • 46mm piston design for maximum damping control
        • Standard 1/2” graphite heims
        Retail price
        • $170.50
        Features
        • SKU
          F4-BE5-F614-M0
        • Brand
          Bilstein
        • Adjustable Damping
          No
        • Body Design
          Smooth Body
        • Body Inside Diameter
          46.0 mm
        • Body Material
          Steel
        • Coilover Type
          Non-Coilover
        • Collapsed Length
          14.88 in.
        • Collapsed Length
          378.0 mm
        • Compression at 0.26 m/s
          470.0 N
        • Extended Length
          23.52 in.
        • Extended Length
          597.5 mm
        • Finish
          Zinc Plated
        • Includes Boot
          No
        • Includes Spring Seat
          No
        • Internal Design
          Monotube
        • Lower Mount Type
          12.7 mm Heim
        • PartType
          Shocks / Struts
        • Piston Type
          Linear
        • Prop 65 (Y/N)
          Y
        • Prop 65 - Short Label
          WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
        • Rebound @0.26m/s
          1265
        • Segment
          Motorsports
        • Series
          SLS Series
        • Soft Adjustable Compression Valve
          5-1.5
        • Spring Hardware
          B4-BOA-0000117
        • Spring Max Travel (IN)
          8.64
        • Title
          Bilstein Shock Absorbers
        • Upper Mount Type
          12.7 mm Heim
        • Valving Type
          Soft Adjustable Compression Valve
