        Bilstein

        Bilstein Shock Absorbers

        Part Number:F4-BE5-G723-M0

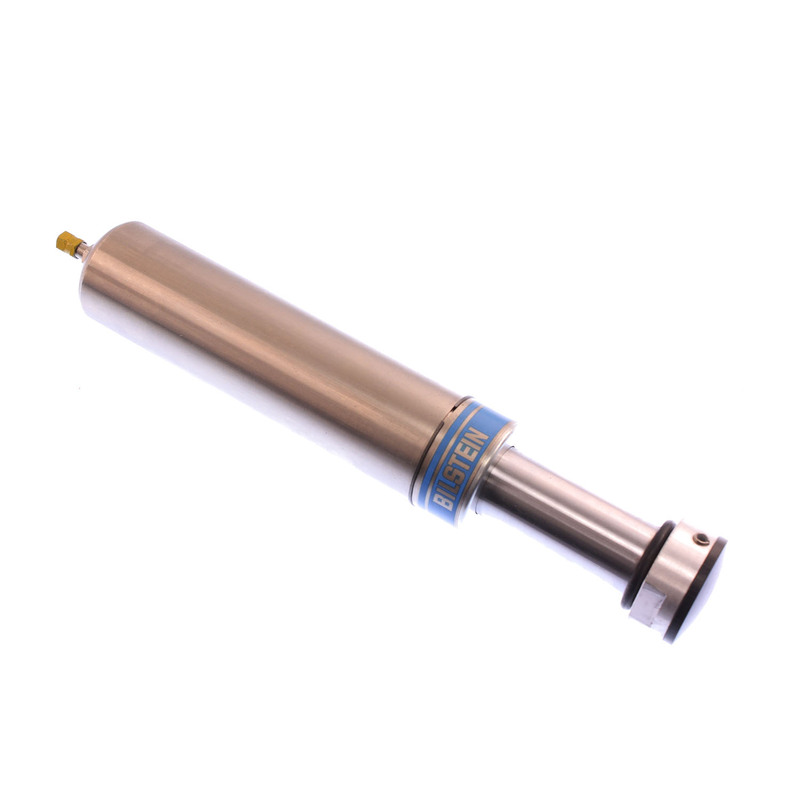

        Bilstein M 9100 (Bump Stop) is designed to provide a significant increase in compression control over the last few inches of suspension travel on custom off-road applications. M 9100 (Bump Stop) is available in 3 different stroke lengths ranging from 2-4 inch travel that can accommodate a wide range of custom mount configurations. M 9100 (Bump Stop) has a replaceable strike pad for easy maintenance. This bump stop utilizes a nitrogen fill valve which can be used to fully adjust the compression force. When properly applied, M 9100 (Bump Stop) will effectively decelerate the suspension and prevent harsh bottoming on custom off-road applications.
        • Filled with technology perfected over 3 decades of off-road dominance
        • Monotube gas pressure design maximizes heat dissipation
        • Available for lifted truck, custom truck, rock crawling and off-road racing applications
        Retail price
        • $267.00
        Features
        • SKU
          F4-BE5-G723-M0
        • Brand
          Bilstein
        • Body Design
          Smooth Body
        • Body Diameter
          46.0 mm
        • Coilover Type
          Non-Coilover
        • Collapsed Length
          10.0 in.
        • Collapsed Length
          244.1 mm
        • Collapsed Length
          316.7 mm
        • Collapsed Length
          9.61 in.
        • Compression at 0.52 m/s
          Custom
        • Extended Length
          12.0 in.
        • Extended Length
          12.47 in.
        • Feature Note
          Reservoir Not Included
        • Finish
          Nickel Plated
        • Includes Spring Seat
          No
        • Internal Design
          Monotube
        • Lower Mount Type
          Special
        • Mount Type
          Special
        • Optional Reservoir Clamp
          N/A
        • PartType
          Bump Stop
        • Prop 65 (Y/N)
          Y
        • Prop 65 - Short Label
          WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
        • Rebound at 0.52 m/s
          Custom
        • Segment
          Motorsports
        • Series
          M 9100 (Bump Stop)
        • Spring Max Travel (IN)
          2.86
        • Title
          Bilstein Shock Absorbers
        • Upper Mount Type
          Special
