Bilstein

Bilstein Shock Absorbers

Part Number:F4-BE5-G724-M0

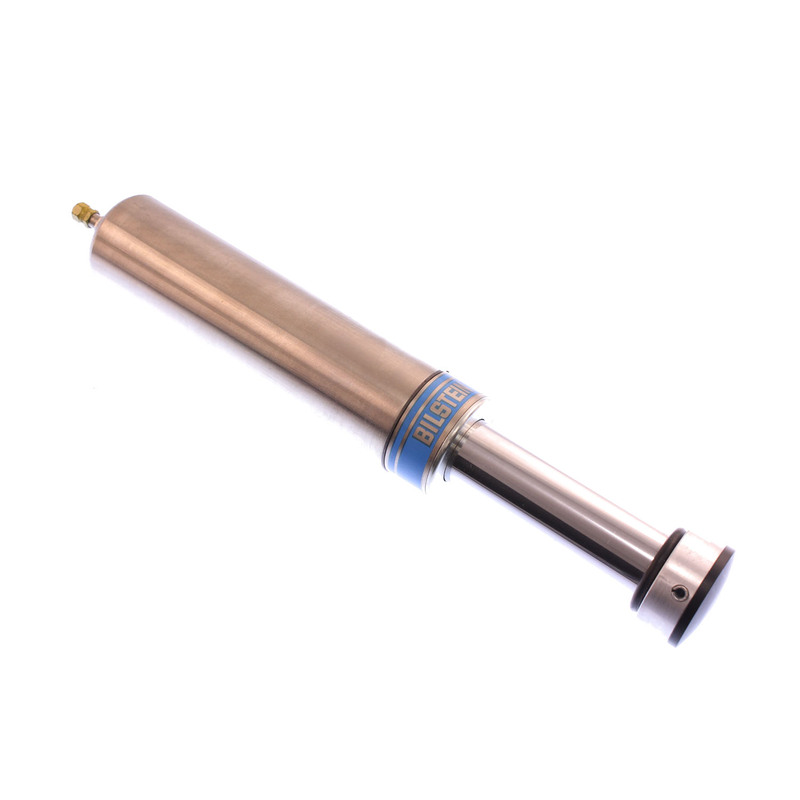

Bilstein M 9100 (Bump Stop) is designed to provide a significant increase in compression control over the last few inches of suspension travel on custom off-road applications. M 9100 (Bump Stop) is available in 3 different stroke lengths ranging from 2-4 inch travel that can accommodate a wide range of custom mount configurations. M 9100 (Bump Stop) has a replaceable strike pad for easy maintenance. This bump stop utilizes a nitrogen fill valve which can be used to fully adjust the compression force. When properly applied, M 9100 (Bump Stop) will effectively decelerate the suspension and prevent harsh bottoming on custom off-road applications.
  • Filled with technology perfected over 3 decades of off-road dominance
  • Monotube gas pressure design maximizes heat dissipation
  • Available for lifted truck, custom truck, rock crawling and off-road racing applications
Retail price
  • $267.00
Features
  • SKU
    F4-BE5-G724-M0
  • Brand
    Bilstein
  • Body Design
    Smooth Body
  • Body Diameter
    46.0 mm
  • Coilover Type
    Non-Coilover
  • Collapsed Length
    10.0 in.
  • Collapsed Length
    244.1 mm
  • Collapsed Length
    342.1 mm
  • Collapsed Length
    9.61 in.
  • Compression at 0.52 m/s
    Custom
  • Extended Length
    13.0 in.
  • Extended Length
    13.47 in.
  • Feature Note
    Reservoir Not Included
  • Finish
    Nickel Plated
  • Includes Spring Seat
    No
  • Internal Design
    Monotube
  • Lower Mount Type
    Special
  • Rebound at 0.52 m/s
    Custom
  • Series
    M 9100 (Bump Stop)
  • Upper Mount Type
    Special
