HEDMAN HEDDERS STAINLESS STEEL HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN- UNCOATED
        Hedman Hedders

        HEDMAN HEDDERS STAINLESS STEEL HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN- UNCOATED

        Part Number:62090

        Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing LONG and MID-LENGTH tube headers for Chevy trucks for nearly as long. These headers are manufactured from 100% T304 Stainless Steel to provide durability rivaled only by Hedman's ELITE® line of headers. They have smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next, and utilize 3/8 in. thick T304 stainless flanges to prevent warping. Hedman's unique, gasketless ball and socket collector design allows your Small Block Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.

        These raw stainless LONG-TUBE headers use Hedman's best selling Chevy truck header configuration. They fit a wide range of early to mid-year 1967-1987 2WD & 4WD Chevy/GMC 1/2 Ton and 3/4 ton trucks, Blazers and Suburbans (check the application listings for exact fitment), powered by a Small Block Chevy engine (without A.I.R. System). The smooth 1-5/8 in. tube design provides ample exhaust flow to let your truck's 283-400 SB Chevy engine breathe easy, and produce maximum horsepower and torque. These headers are uncoated, and ship from the factory with a raw stainless surface. For protection against the element and lower under hood temperatures, these headers are also available with a silver or black ceramic-metallic finish.

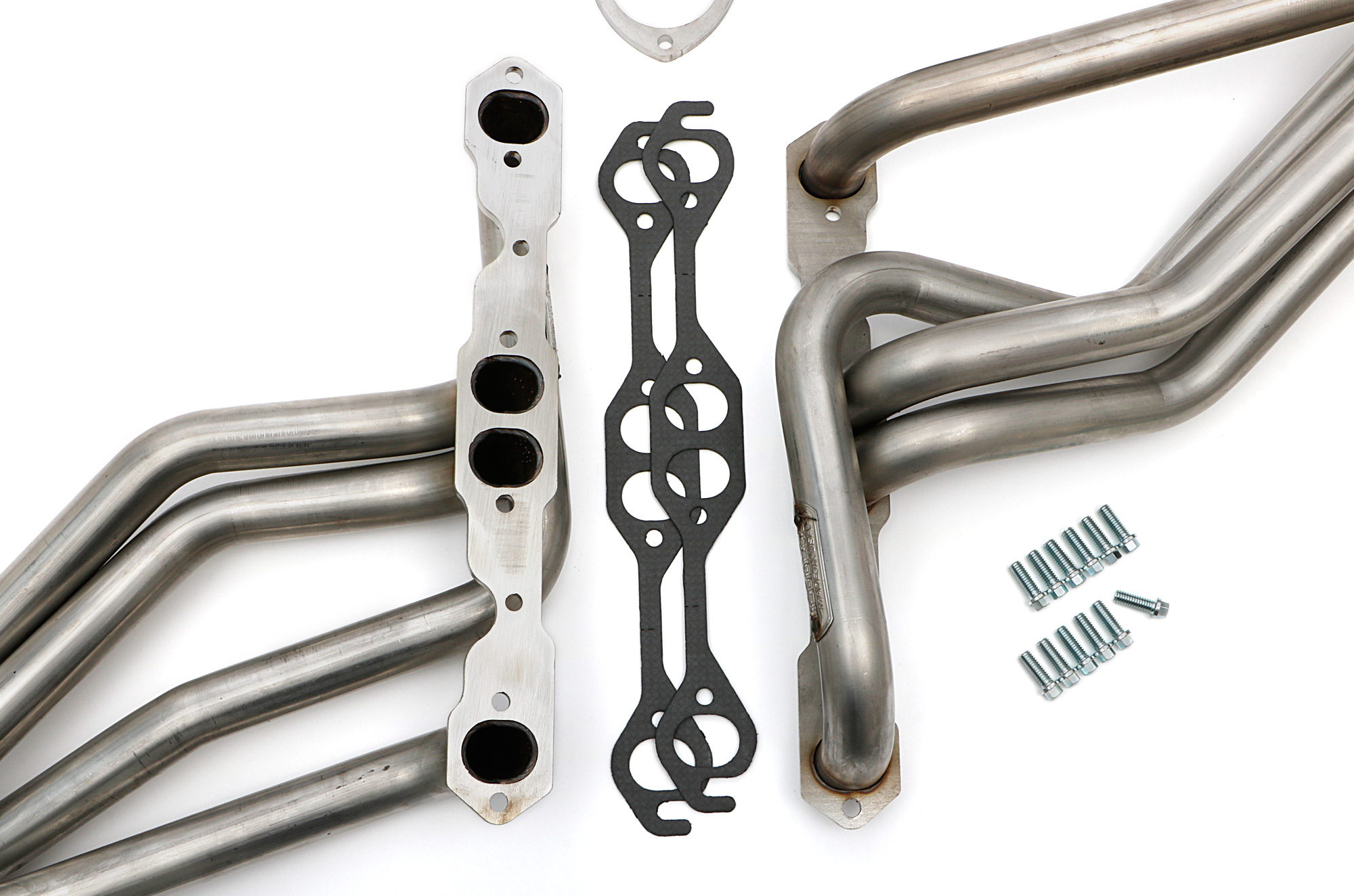

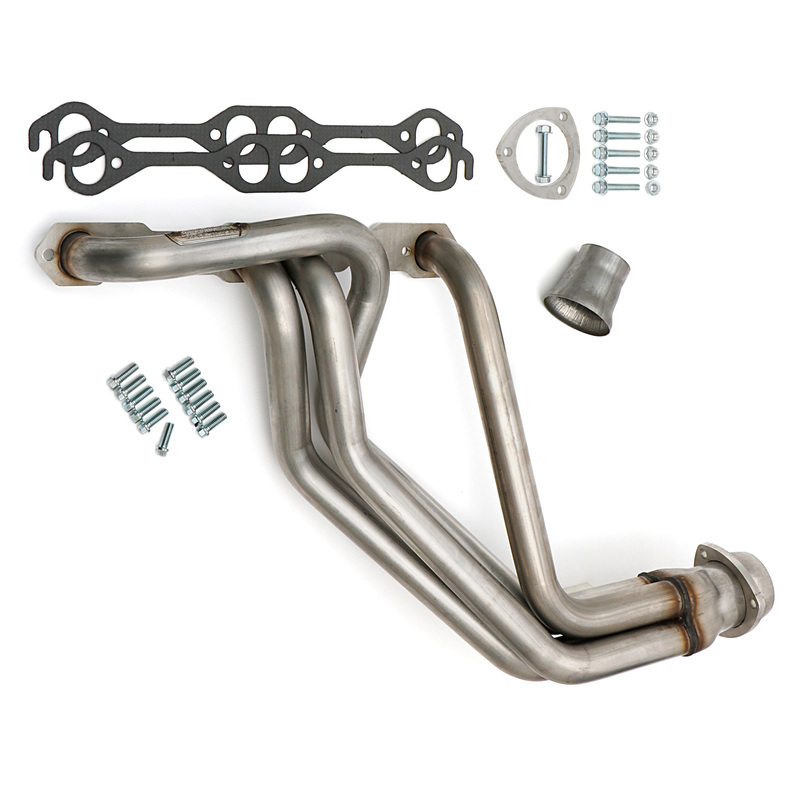

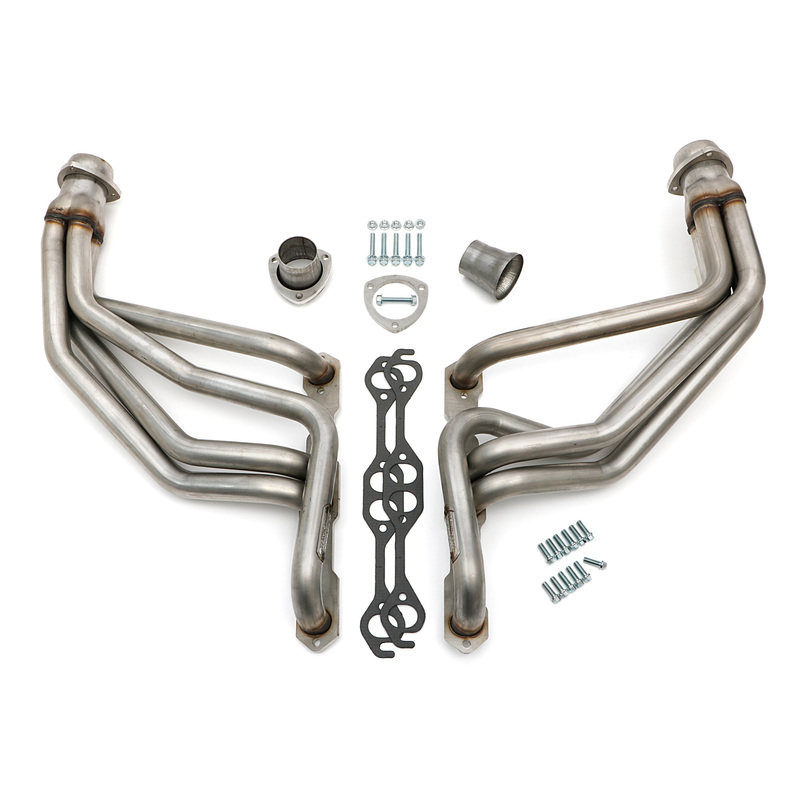

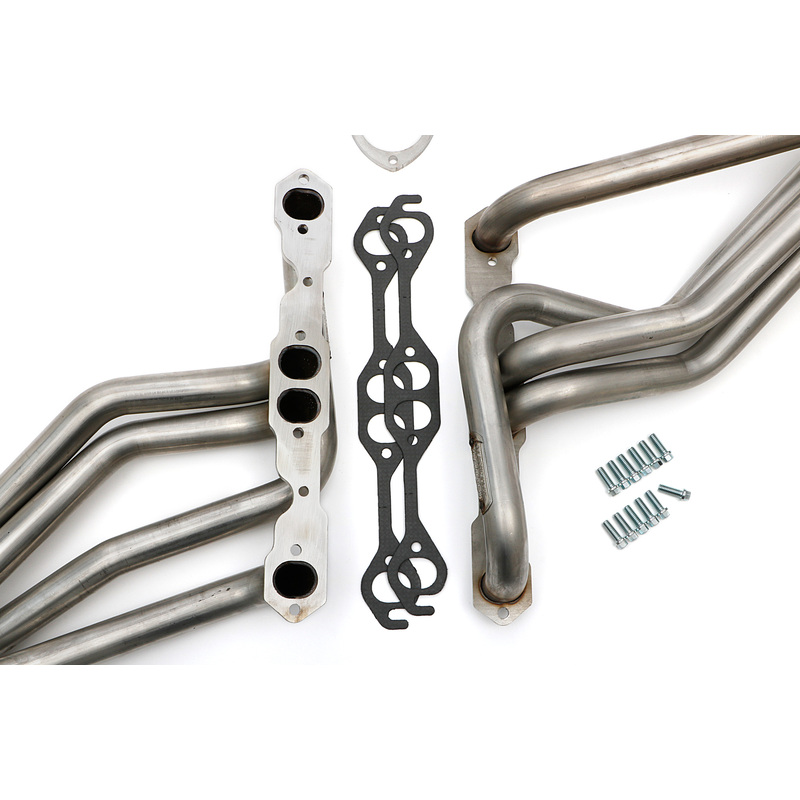

        Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.

        Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty.

        • 100% Premium T304 Stainless Steel Flange and Tube Construction.
        • T304 Stainless Material Is more Durable, Heat Resistant and Corrosion Resistant Than The 409 Stainless Steel Typically Used To Manufacture Exhaust Products.
        • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
        • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
        • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
        • Proud To Say, Made In The USA, Since 1954!
        Retail price
        • $2,649.38
        Features
        • SKU
          62090
        • Brand
          Hedman Hedders
        • 50-State Street Legal
          Please Refer to Vehicle Fitment Data for CARB EO Information
        • Air Conditioning
          Yes
        • Alternate Variation Part Number
          69096, 69890, 62096
        • Automatic Transmission - Column
          Yes
        • Automatic Transmission - Floor
          Yes
        • Collector Diameter
          3.0 in.
        • Collector Style
          Ball and Socket (Gasketless)
        • Cylinder Head Port Shape
          Oval
        • Drivetrain
          2WD
        • Exhaust System Diameter
          2.5 in.
        • Finish
          Uncoated
        • Fitment Note
          67-91 1/2, 3/4, 1 Ton Chevrolet Truck 2-4WD 283-400
        • Fitment Note
          Fits Factory GM Aluminum Angle Plug and Straight Plug Heads.
        • Fitment Note
          NOT For Vehicles with Offset Right Engine Position
        • Flange Style
          Standard
        • Flange Thickness
          0.375 in.
        • Flange Thickness
          0.38 in.
        • Header Style
          Long Tubes
        • Includes Bolts/Studs
          Yes
        • Includes Catalytic Converters
          No
        • Includes Crossover Pipe
          No
        • Includes Gasket/Seal
          Yes
        • Includes Motor Mounts
          No
        • Includes Mounting Hardware
          Yes
        • Includes Reducers
          Yes
        • Includes Y-Pipe
          No
        • Manual Transmission - Column
          No
        • Manual Transmission - Floor
          Yes
        • Material
          T-304 Stainless Steel
        • Package Contents
          Headers, Ball and Socket Reducers (Exhaust Adapters), Gaskets, Mounting Hardware
        • Package Contents
          Headers, Collector Flange Gaskets, Collector Bolts.
        • Primary Tube Diameter
          1.625 in.
        • Prop 65 - Short Label
          WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
        • Reducer Outlet Size
          2.5 in.
        • Replacement Head Flange Gasket Part Number
          27520
        • Replacement Manifold Gasket Part Number
          27520
        • Sold As
          Pair
        • Title
          HEDMAN HEDDERS STAINLESS STEEL HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN- UNCOATED
        • Tube Design
          Standard
        • Tube Diameter
          1.625 in.
        • Tube Size
          1.625 in.
        • Tube Thickness
          16 ga
        • Tuned
          No
        • Weld-Up
          No
        • With A.I.R. System
          No
        • With EGR
          No
        • With Power Steering
          Yes
