HEDMAN HEDDERS CHEVY P/U 2 & 4 WD SMOG- BLACK MAXX
Hedman Hedders

HEDMAN HEDDERS CHEVY P/U 2 & 4 WD SMOG- BLACK MAXX

Part Number:63091

Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing LONG and MID-LENGTH tube headers for Chevy trucks for nearly as long. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your Small Block Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.

These BLACK-MAXX™ coated, LONG-TUBE headers use one of Hedman's best selling Chevy truck header tube configurations. They fit a wide range of early to mid-year 1967-1987 2WD & 4WD Chevy/GMC 1/2 Ton and 3/4 ton trucks, Blazers and Suburbans (check the application listings for exact fitment), powered by a Small Block Chevy engine (with A.I.R. System).. The smooth 1-5/8 in. tube design provides ample exhaust flow to let your truck's 283-400 SB Chevy engine breathe easy, and produce maximum horsepower and torque.

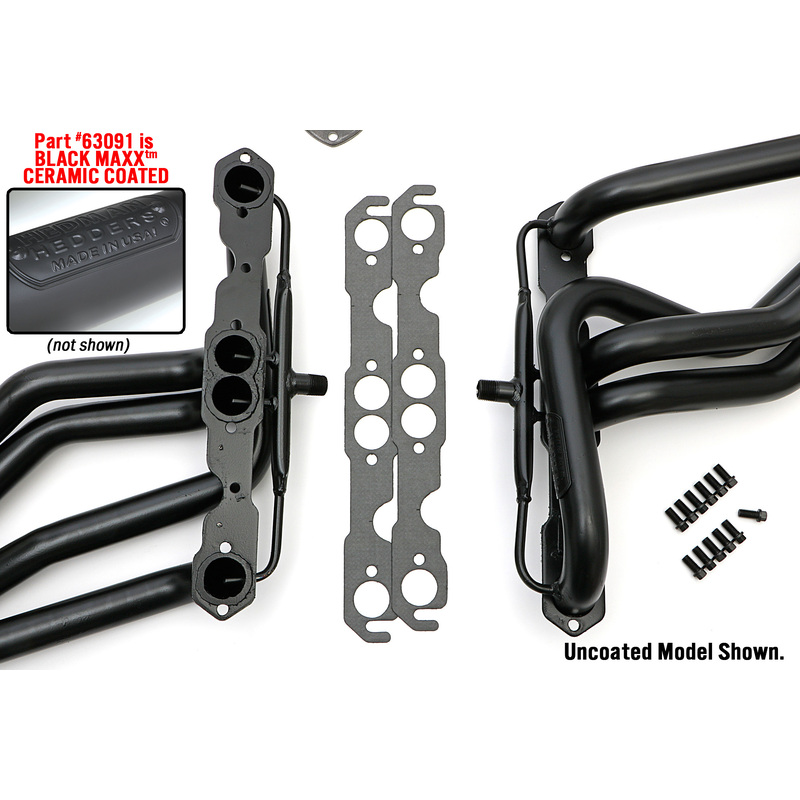

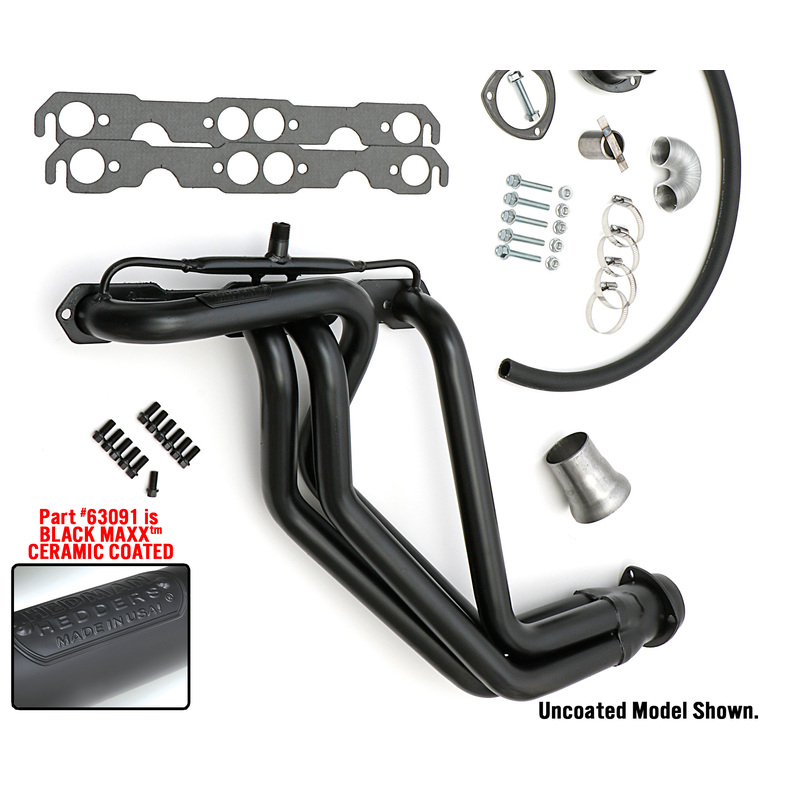

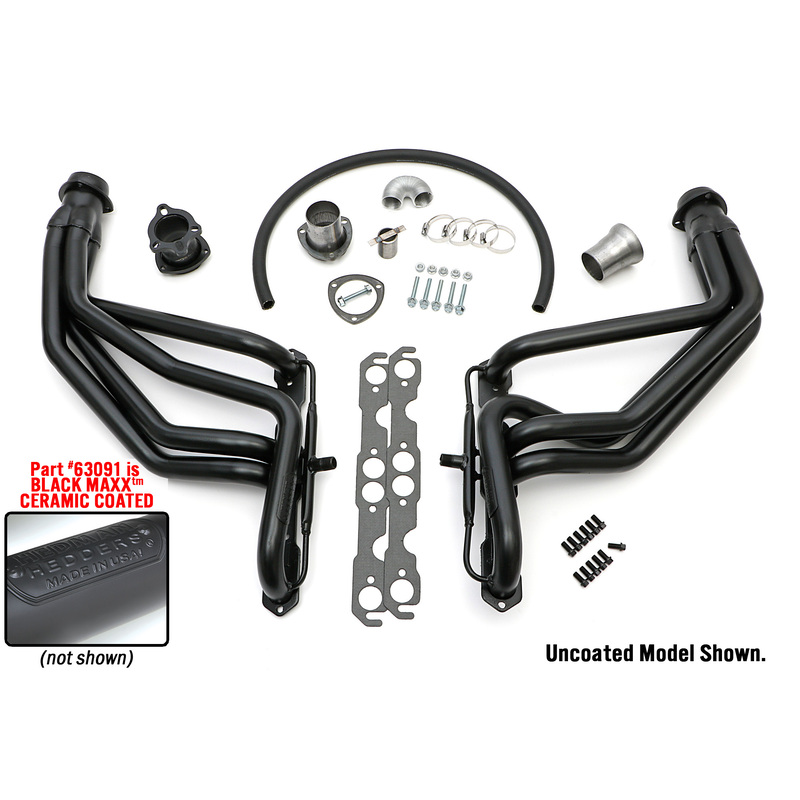

Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.

Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. These headers have a high temperature, BLACK-MAXX™ Satin Black ceramic finish that resists corrosion, and can withstand temperatures up to 1400 degree F. This finish is covered by a 5 year factory warranty, in addition to Hedman's standard lifetime header warranty. (This Black-Maxx header number is not currently covered by an EO#. Please call for latest EO status.)

  • Handcrafted, Mild Steel Construction.
  • Long Tube Header Design Provides Excellent Top-End Horsepower and Torque.
  • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
  • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
  • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
  • Proud To Say, Made In The USA, Since 1954!
Retail price
  • $1,903.18
Features
  • SKU
    63091
  • Brand
    Hedman Hedders
  • 50-State Street Legal
    Please Refer to Vehicle Fitment Data for CARB EO Information
  • Air Conditioning
    Yes
  • Alternate Variation Part Number
    63891
  • Automatic Transmission - Column
    Yes
  • Automatic Transmission - Floor
    Yes
  • Collector Diameter
    3.0 in.
  • Collector Style
    Ball and Socket (Gasketless)
  • Color
    Black Maxx
  • Cylinder Head Port Shape
    Round
  • Exhaust System Diameter
    2.5 in.
  • Feature Note
    With A.I.R.
  • Finish
    Satin Ceramic-Metallic
  • Fitment Note
    67-91 GM 1/2, 3/4, 1 Ton Truck/SUV/Class A 2-4WD SBC with AIR
  • Fitment Note
    Fits Stock Profile Heads
  • Fitment Note
    NOT For Vehicles with Offset Right Engine Position
  • Flange Style
    Standard
  • Flange Thickness
    0.3125 in.
  • Header Style
    Long Tubes
  • Includes Bolts/Studs
    Yes
  • Includes Catalytic Converters
    No
  • Includes Collector Bolts
    Yes
  • Includes Crossover Pipe
    No
  • Includes Gasket/Seal
    Yes
  • Includes Header Fasteners
    Yes
  • Includes Motor Mounts
    No
  • Includes Mounting Hardware
    Yes
  • Includes Reducers
    Yes
  • Includes Y-Pipe
    No
  • Manual Transmission - Column
    No
  • Manual Transmission - Floor
    No
  • Material
    Mild Steel
  • Material
    Standard-Duty Mild Steel
  • Package Contents
    Headers, Ball and Socket Reducers (Exhaust Adapters), Gaskets, Mounting Hardware
  • Package Contents
    Headers, New Bolts, Gaskets to Head, Reducers and Hardware, Instructions.
  • Primary Tube Diameter
    1.625 in.
  • Prop 65 - Short Label
    WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
  • Reducer Outlet Size
    2.5 in.
  • Replacement Head Flange Gasket Part Number
    27500
  • Replacement Manifold Gasket Part Number
    27500
  • Sold As
    Pair
  • Tube Design
    Standard
  • Tube Diameter
    1.625 in.
  • Tube Size
    1.625 in.
  • Tube Thickness
    16 ga
  • Tuned
    No
  • Weld-Up
    No
  • With A.I.R. System
    Yes
  • With EGR
    No
  • With Power Steering
    Yes
