HEDMAN HEDDERS 5.0/5.7L 88-95 2&4WD EO- BLACK MAXX

Part Number:63471

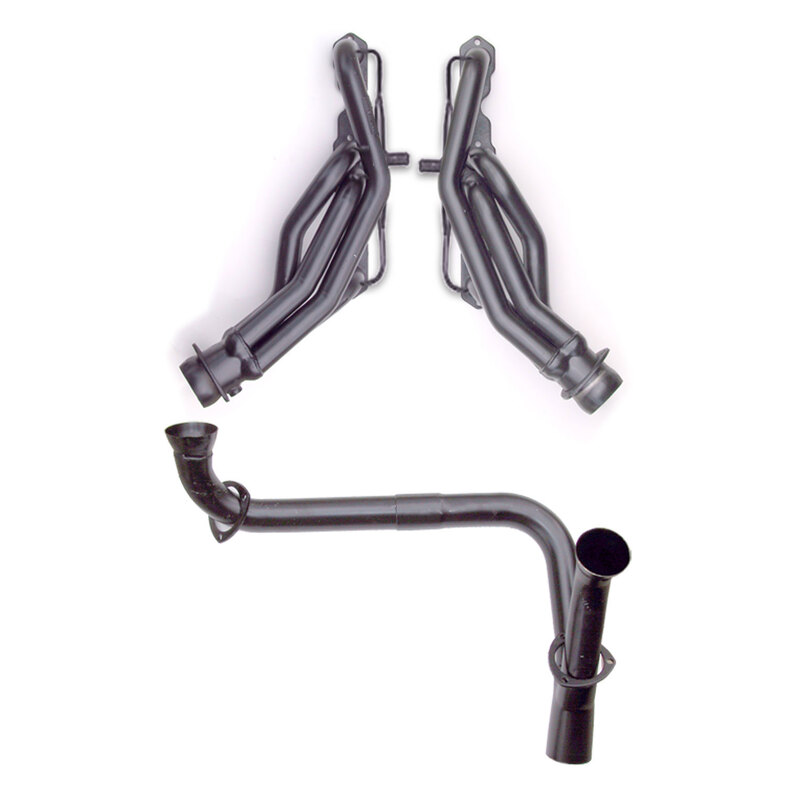

BLACK MID-LENGTH HEADERS For '88-95 5.0-5.7L GM TRUCKS With A.I.R.
  • Handcrafted, Mild Steel Construction.
  • The Mid-Length Tube Header Design Provides Significantly More Low and Mid-range Power than Cast Manifolds, and Provide Better Ground Clearance And Component Compatibility Than Long Tube Headers.
  • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
  • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
  • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
  • Proud To Say, Made In The USA, Since 1954!
Retail price
  • $2,035.86
Features
  • SKU
    63471
  • Brand
    Hedman Hedders
  • 50-State Street Legal
    Please Refer to Vehicle Fitment Data for CARB EO Information
  • Air Conditioning
    Yes
  • Alternate Variation Part Number
    69471, 61476
  • Automatic Transmission - Column
    Yes
  • Automatic Transmission - Floor
    Yes
  • Collector Attachment
    Stock
  • Collector Diameter
    Stock
  • Collector Style
    Ball and Socket (Gasketless)
  • Color
    Black Maxx
  • Cylinder Head Port Shape
    Oval
  • Exhaust System Diameter
    3.0 in.
  • Feature Note
    With A.I.R.
  • Finish
    Satin Ceramic-Metallic
  • Fitment Note
    127. Late Model Chassis. Engine Offset to Passenger Side of Vehicle.
  • Fitment Note
    88-95 GM 1/2, 3/4 Ton Truck/SUV 5.0-5.7L
  • Fitment Note
    Fits 4X4, Manual Transmission Models with Hydraulic Clutch. Does Not Work with Slave Cylinder.
  • Fitment Note
    Fits Stock Profile Heads
  • Flange Style
    Standard
  • Flange Thickness
    0.3125 in.
  • Header Style
    Mid-Length
  • Includes Bolts/Studs
    Yes
  • Includes Catalytic Converters
    No
  • Includes Crossover Pipe
    Yes
  • Includes Gasket/Seal
    Yes
  • Includes Header Fasteners
    Yes
  • Includes Mounting Hardware
    Yes
  • Includes Reducers
    No
  • Includes Y-Pipe
    Yes
  • Manual Transmission - Column
    No
  • Manual Transmission - Floor
    Yes
  • Material
    Mild Steel
  • Material
    Standard-Duty Mild Steel
  • O2 Provision
    Yes
  • Package Contents
    Headers, Ball and Socket Reducers (Exhaust Adapters), Gaskets, Mounting Hardware
  • Primary Tube Diameter
    1.625 in.
  • Prop 65 - Short Label
    WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
  • Reducer Outlet Size
    Stock
  • Replacement Head Flange Gasket Part Number
    27520
  • Replacement Manifold Gasket Part Number
    27520
  • Sold As
    Kit
  • Tube Design
    Standard
  • Tube Diameter
    1.625 in.
  • Tube Size
    1.625 in.
  • Tube Thickness
    16 ga
  • Tuned
    No
  • Weld-Up
    No
  • With A.I.R. System
    Yes
  • With EGR
    No
  • With Power Steering
    Yes
